SKI-DOO MX Z 380 F/500 F MX Z 380 F/500 F 07- Front Suspension And Ski

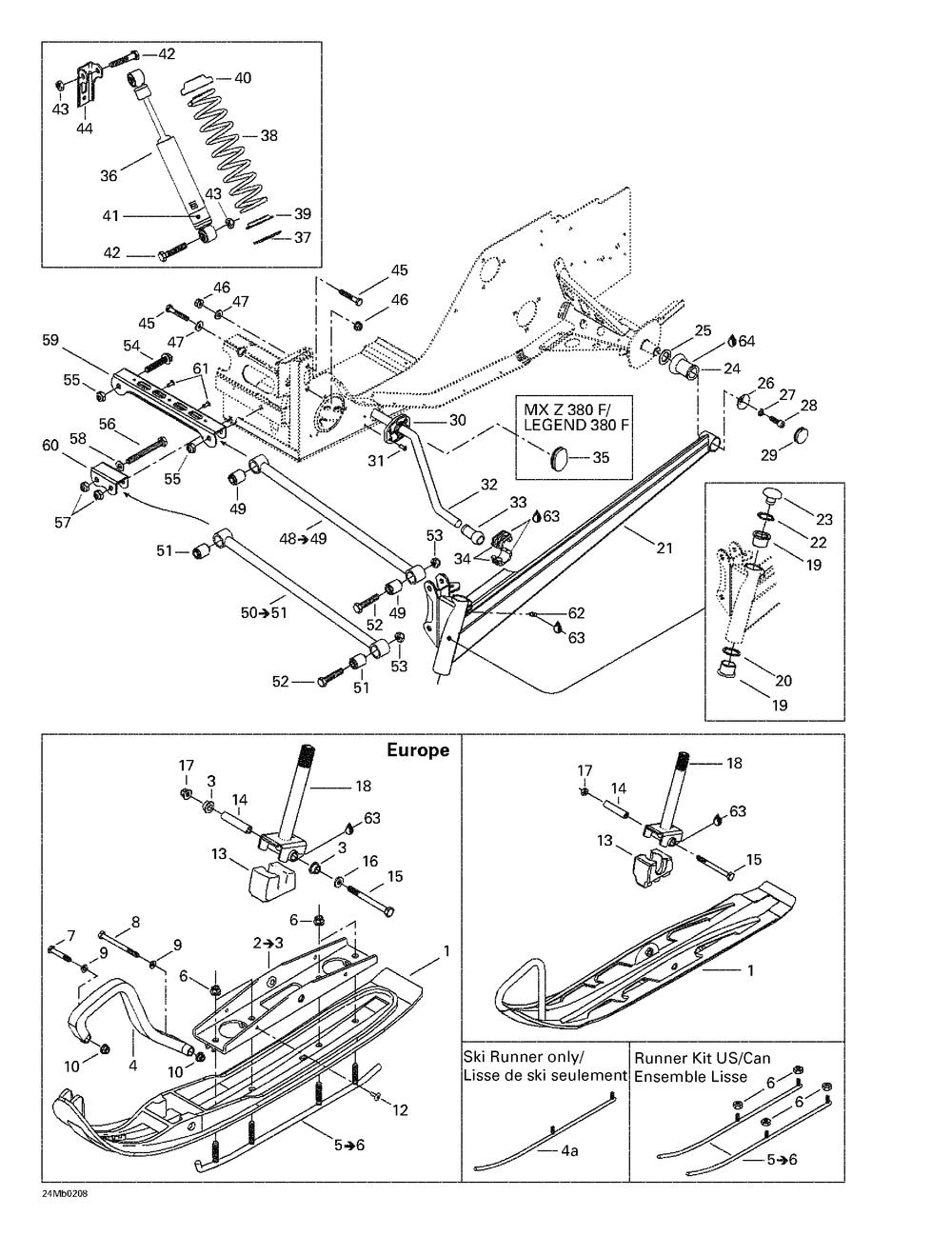

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
LH SHOCK BRACKET 1
RESSORT PEINT *SPRING- PAINTED 2
1 SKI-LINER FLEX 2
2 BRIDGE Includes 2 - 3. 2
4 BLACK HANDLE 2
4a LISSE SKI SOUDE*RUNNER-SKI WELD. All US/CAN Model and MXZ Europe 2
5 CARBIDE RUNNER 1
6 Hex. Elastic Stop Nut M8 4
6 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 8
7 HEX. SCREW M8 X 50 (10.000 per pack) 2
8 SCREW-HEX. M8 X 100 (10.000 per pack) 2
9 Flat Washer 8 mm 4
10 Hex. Flanged Elastic Nut M8 4
13 SKI STOPPER 2
14 SPACER (2.000 per pack) 2
15 HEX. SCREW M10 X 110 (5.000 per pack) 2
16 RONDELLE *WASHER (25.000 per pack) 2
17 FLANGED NUT M10 (5.000 per pack) 2
18 SKI LEG 2
19 CUSHION 4
20 RONDELLE *WASHER (10.000 per pack) 2
21 LH ARM 1
21 RH ARM 1
22 CIRCLIP (10.000 per pack) 2
23 CAP 2
24 DAMPER 2
25 RONDELLE *WASHER (10.000 per pack) 2
26 CUP 2
26 CUP 2
27 WASHER-LOCK DIN.127B (50.000 per pack) 2
28 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (4.000 per pack) 2
29 CAP (10.000 per pack) 2
30 BUSHING 550F 2
31 Pop Rivet 3/16" 8
32 STABILISATEUR P*STABILISATOR-P 550F 1
33 BALL JOINT 550F 2
34 SLIDING BLOCK (5.000 per pack) 4
35 Nylon Cap 2
36 FRONT SHOCK 2
37 RONDELLE *WASHER (10.000 per pack) 2
38 SPRING 2
39 Spring Guide 2
40 SPRING STOPPER 2
42 HEX. SCREW M10 X 55 (5.000 per pack) 4
44 RH SHOCK BRACKET 1
47 Washer 4
48 UPPER ARM ASStahos_Y Includes 41 To 42 2
49 COUSSINET *BUSHING 4
50 LOWER ARM ASStahos_Y Includes 43 To 44 2
54 HEX. FLANGED SCREW M10 X 55 (5.000 per pack) 2
56 HEX. SCREW M10 X 95 (5.000 per pack) 2
58 Flat Washer 10 mm 2
59 UPPER ARM BRACKET 1
60 LOWER ARM BRACKET 1
61 Pop Rivet 3/16" 2
62 GREASE FITTING (10.000 per pack) 2
63 SUSPENSION GREASE 10 X 400 G 0
64 GRAISSE *GREASE 0
