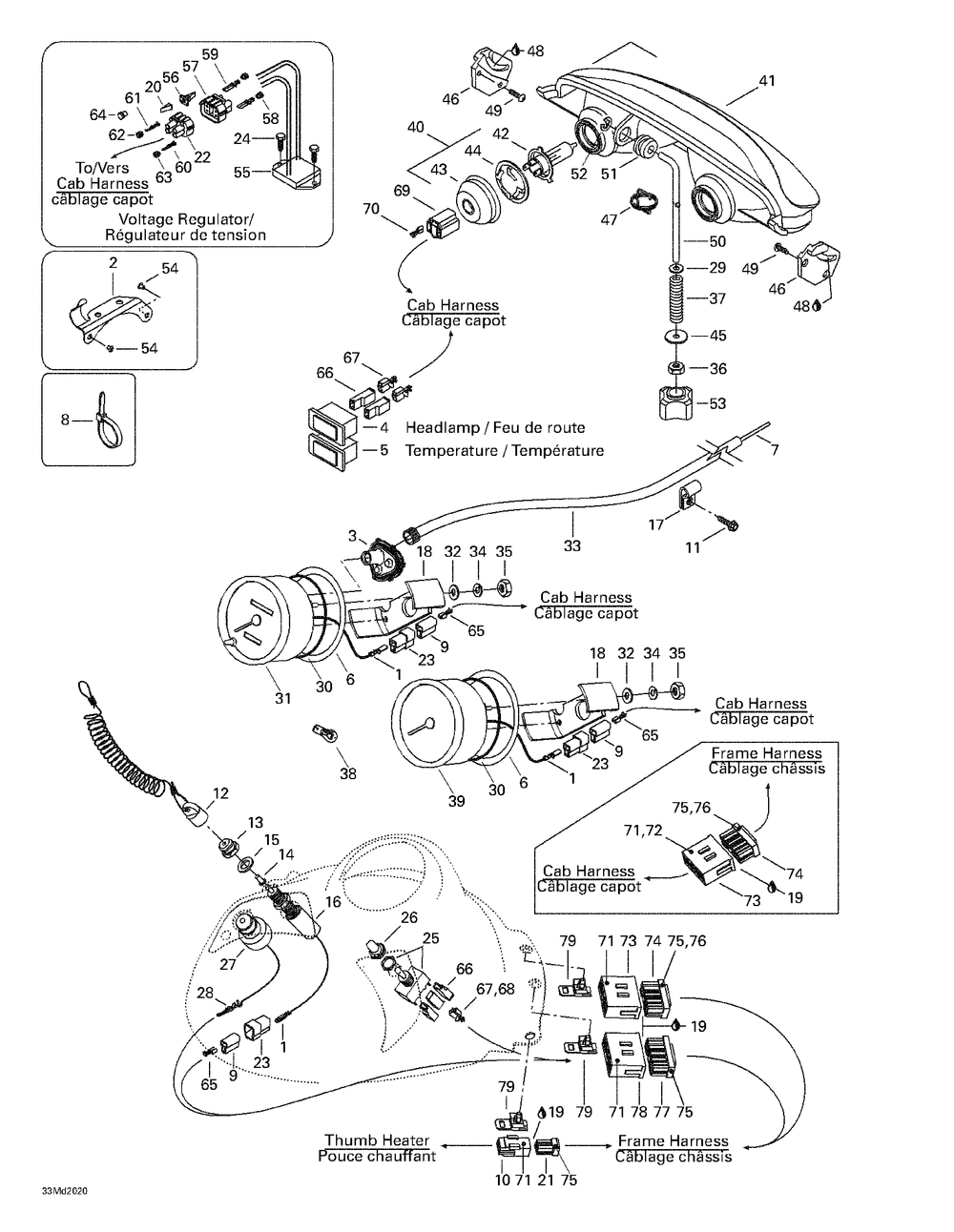

10- Electrical System

SKI-DOO MX Z X 440 LC MX Z X 440 LC 10- Electrical System

№	Наименование	Кол-во
	Tie-Rap 350 mm	0
	Tie-Rap 180 mm	0
	SPEEDOMETER MPH	0
	LH SUPPORT	1
	Tie-Rap 173 mm	0
	Tie Rap	0
1	MALE TERMINAL (10.000 per pack)	0
4	PILOT LAMP HEADLAMP	1
5	PILOT LAMP ENGINE TEMPERATURE SUV 600	1
6	RONDELLE *WASHER	2
7	BOYAU AMORCE *LINE-PRIMER (30.000 per pack)	0
8	Tie-Rap 142 mm	0
9	FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack)	0
10	MALE HOUSING 3 CIRCUITS (5.000 per pack)	0
12	CAP ASS Y	1
13	SWITCH NUT	1
14	PLUNGER CAP (5.000 per pack)	1
15	Flat Washer 10 mm	1
16	BRAKE SWITCH ASS Y	1
17	Cable clip	3
18	CASE HOLDER	2
19	DIELECTRIC GREASE 150 G	0
21	Female Housing, 3 Circuits	0
23	MALE HOUSING (5.000 per pack)	0
24	HEX. FLANGED SCREW M6 X 16 (10.000 per pack)	2
25	SWITCH (HEATING GRIP)	1
26	SWITCH COVER Model-SE (4.000 per pack)	1
27	DESS SWITCH	1
28	MALE TERMINAL (10.000 per pack)	3
29	FLAT WASHER 6 MM (10.000 per pack)	1
30	JOINT TORIQUE *PACKING	2
31	SPEEDOMETER KMH/MPH	1
32	FLAT WASHER (10.000 per pack)	4
37	SPRING	1
38	INSTRUMENTATION BULB (10.000 per pack)	0
40	HALOGEN HEADLAMP ASS Y Includes 16 - 19.	1
42	HALOGEN BULB 60/55 W 12 V	2
43	COVER	2
44	BULB HOLDER	2
45	RONDELLE *WASHER (25.000 per pack)	1
46	RH SUPPORT	1
47	SPRING Europe	1
50	ADJUSTER ROD	1
51	GROMMET	1
52	Push Nut	1
53	HANDLE	1
54	Pop Rivet 3/16"	2
55	VOLTAGE REGULATOR Includes 48 - 52.	1
58	WIRE SEAL (5.000 per pack)	4
59	FEMALE TERMINAL (5.000 per pack)	4
62	JOINT DE FIL *SEAL-WIRE (5.000 per pack)	0
64	BOUCHON *PLUG	0
65	FEMALE TERMINAL (10.000 per pack)	0
66	Female Terminal Housing, 1 Circuit	0
67	Female Terminal	0
68	FEMALE TERMINAL (5.000 per pack)	0
69	FEMALE TERMINAL HOUSING 3 CIRCUITS (10.000 per pack)	0
70	FEMALE TERMINAL (25.000 per pack)	0
72	MALE TERMINAL (10.000 per pack)	0
73	MALE TERMINAL HOUSING 13 CIRCUITS	0
74	FEMALE TERMINAL HOUSING 13 CIRCUITS	0
75	Female Terminal	0
76	Female Terminal	0
77	FEMALE TERMINAL HOUSING 13 CIRCUITS	0
78	MALE TERMINAL HOUSING 15 CIRCUITS	0
79	Housing Support	3
