SKI-DOO Grand Touring 800 SE Grand Touring 800 SE 02- Fuel System

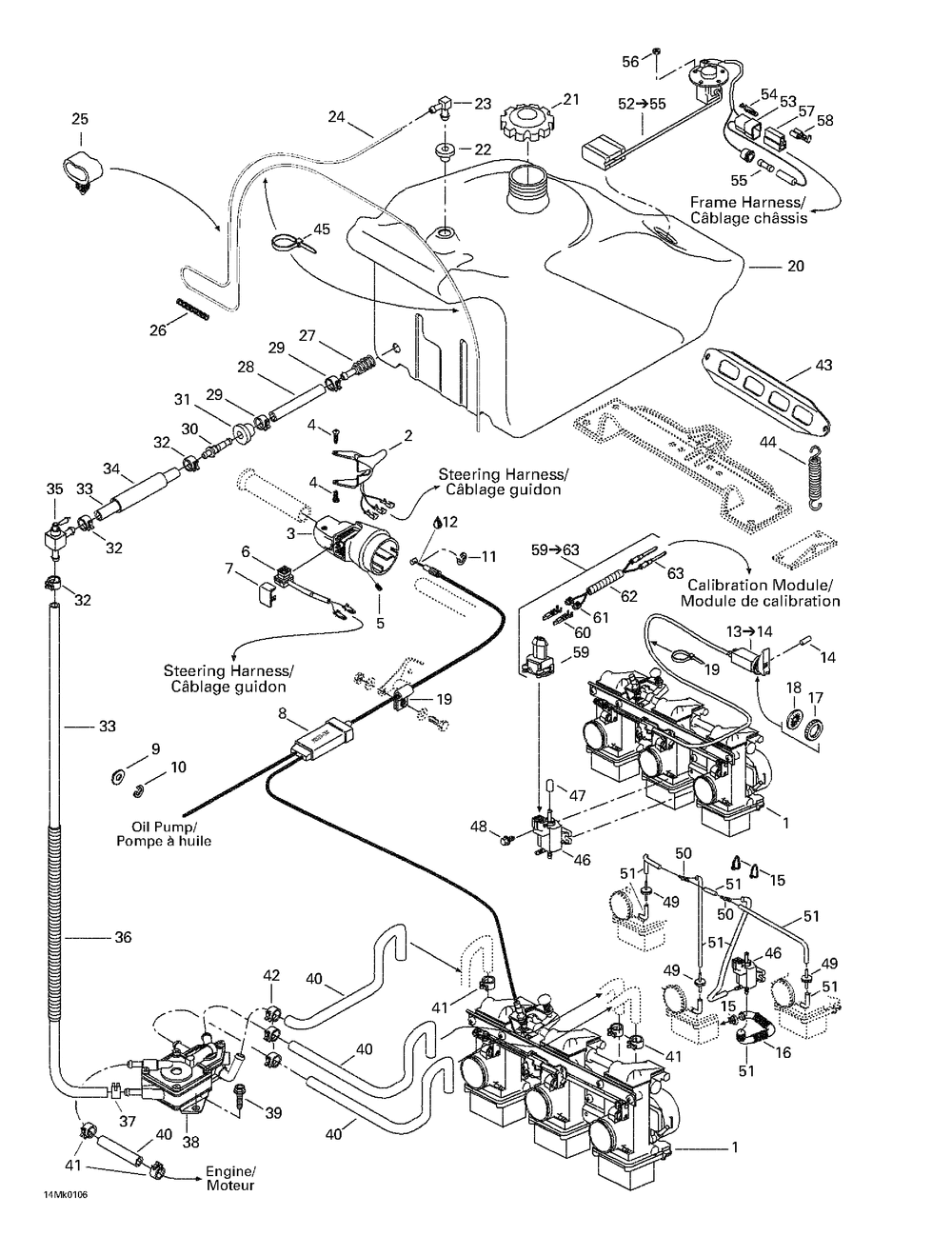

02- Fuel System
№ Наименование Примечание Кол-во
4 FLANGED SCREW (10.000 per pack) 2
5 SOCKET SET SCREW M8 X 10 (5.000 per pack) 1
7 SWITCH COVER 1
8 CABLE ACCELERAT*CABLE-THROTTLE Mach Z (Tech Plus). 1
9 FLAT WASHER 8 MM NYLON (5.000 per pack) 1
10 CIRCLIP (10.000 per pack) 1
11 CIRCLIP (10.000 per pack) 1
12 DIELECTRIC GREASE 150 G 0
15 Tie-Rap 94 mm 3
16 Tubing 9 mm (10.000 per pack) 0
17 NUT-PLASTIC (5.000 per pack) 1
18 WASHER-LOCK INT.TEETH (3.000 per pack) 1
19 Cable clip 1
21 FUEL TANK CAP 1
22 GROMMET (10.000 per pack) 1
23 MALE CONNECTOR (5.000 per pack) 1
24 BOYAU AMORCE *LINE-PRIMER (30.000 per pack) 0
25 TUBE CLAMP 1
27 FUEL FILTER 1
28 POLYURETHANE HOSE 7.6MM 1
29 NORMA SPRING CLAMP (5.000 per pack) 2
30 MALE CONNECTOR (5.000 per pack) 1
31 GROMMET (2.000 per pack) 1
32 UNIVERSAL SPRING CLAMP (10.000 per pack) 3
33 HOSE 9.5 MM METER (3.000 per pack) 0
36 Tubing 16 mm 0
37 UNIVERSAL SPRING CLAMP (50.000 per pack) 1
38 POMPE A ESSENCE*PUMP-FUEL 1
39 HEX. FLANGED SCREW M5 X 11 (10.000 per pack) 2
40 HOSE 1/4 0
41 Spring Clamp 5
44 Spring 2
45 Tie-Rap 180 mm 2
46 Клапан управления впускаемого воздуха 1
50 T-FITTING (10.000 per pack) 0
53 MALE HOUSING (5.000 per pack) 1
54 MALE TERMINAL (10.000 per pack) 2
55 FUSE 0.25 AMPERE (2.000 per pack) 1
56 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 5
57 FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack) 1
58 FEMALE TERMINAL (10.000 per pack) 2
59 MALE CONNECTOR 2 CIRCUITS 1
60 FEMALE TERMINAL (10.000 per pack) 2
61 Wire Seal 2
62 Vinyl Tubing, Low Temperature  (3.000 per pack) 1
63 FEMALE TERMINAL (5.000 per pack) 2
