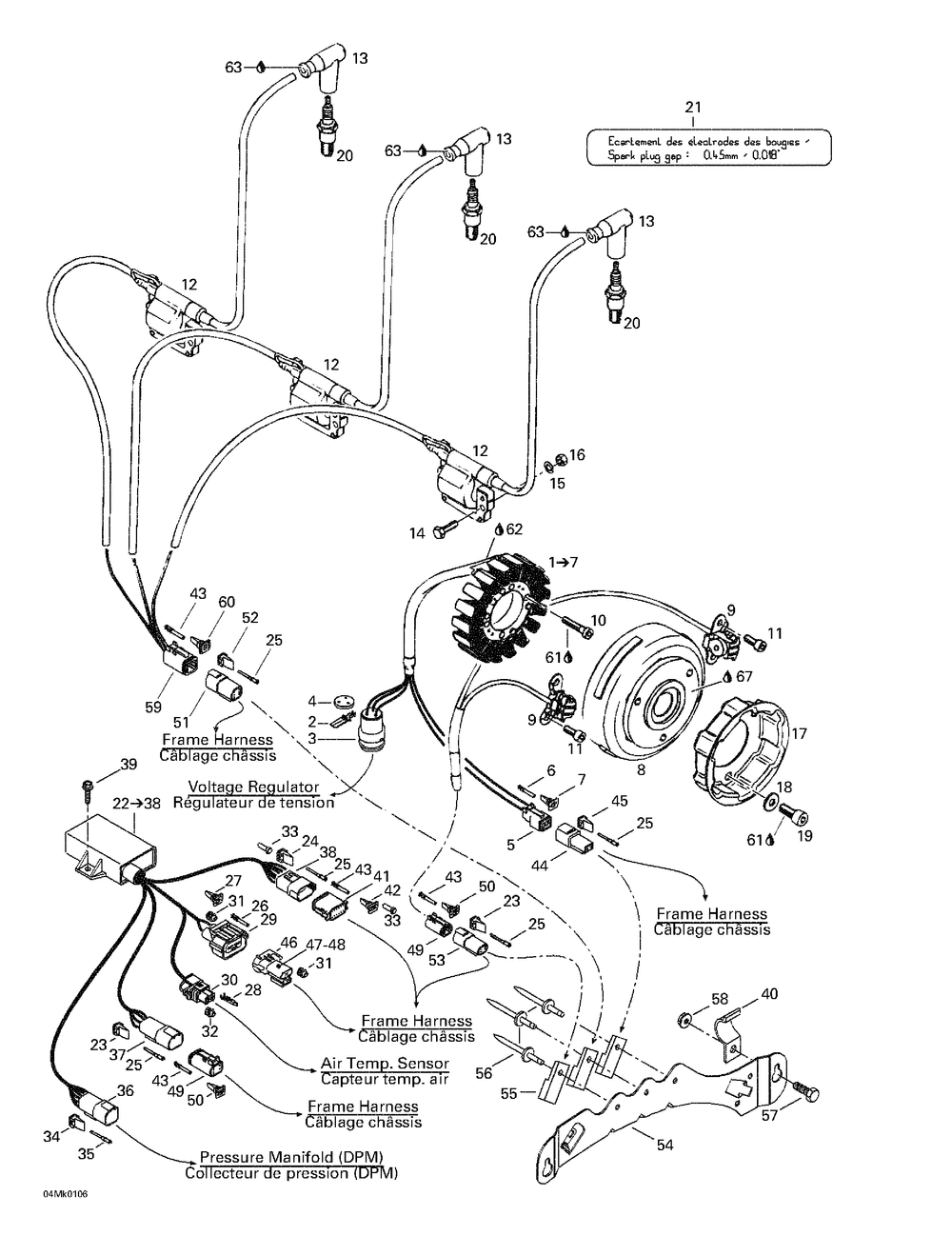

03- Magneto 12V 360W

№	Наименование	Кол-во
1	PLAQUE REACTEUR*PLATE-STATOR A Includes 1 - 7.	1
2	FEMALE TERMINAL (10.000 per pack)	0
3	FEMALE TERMINAL HOUSING 3 CIRCUITS	1
4	JOINT *SEAL	0
6	FEMALE TERMINAL (5.000 per pack)	0
10	SOCKET HEAD SCREW M6 X 30 (10.000 per pack)	3
11	Allen Screw M6 X 14	4
13	SPARK PLUG CAP	3
14	HEX. SCREW M6 X 20 (10.000 per pack)	6
15	WASHER-LOCK DIN.128 (10.000 per pack)	6
16	Hex. Nut M6	6
17	POULIE DEMARRAG*PULL.STARTING	1
18	FLAT WASHER (3.000 per pack)	3
19	SOCKET HEAD SCREW M8 X 12 (10.000 per pack)	3
20	SPARK PLUG NGK BR8-ES (10.000 per pack)	3
23	FEMALE WEDGE 4 CIRCUITS (10.000 per pack)	0
25	MALE TERMINAL (10.000 per pack)	0
26	FEMALE TERMINAL (5.000 per pack)	0
28	FEMALE TERMINAL (10.000 per pack)	0
30	MALE HOUSING 2 CIRCUITS	0
31	JOINT DE FIL *SEAL-WIRE (5.000 per pack)	0
32	Wire Seal	0
33	Sealing Cap	0
35	MALE TERMINAL (10.000 per pack)	0
39	Hex. Flanged Plastite Screw M4.8 X 16	2
43	Female Terminal	0
44	MALE HOUSING 2 CIRCUITS	0
45	MALE LOCK 2 CIRCUITS	0
49	MALE CONNECTOR 4 CIRCUITS	0
50	CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack)	0
52	CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack)	0
53	FEMALE HOUSING 4 CIRCUITS	0
55	Clip	3
57	HEX. SCREW M5 X 14 (10.000 per pack)	2
58	FLANGED ELASTIC NUT M5 (4.000 per pack)	2
59	MALE CONNECTOR 6 CIRCUITS	0
60	MALE LOCK 6 CIRCUITS (5.000 per pack)	0
61	LOCTITE 243 10 ML	0
62	SILICONE SEALANT 51388 300 ML	0
63	DIELECTRIC GREASE 150 G	0
