SKI-DOO Grand Touring 800 SE Grand Touring 800 SE 10- Electrical System

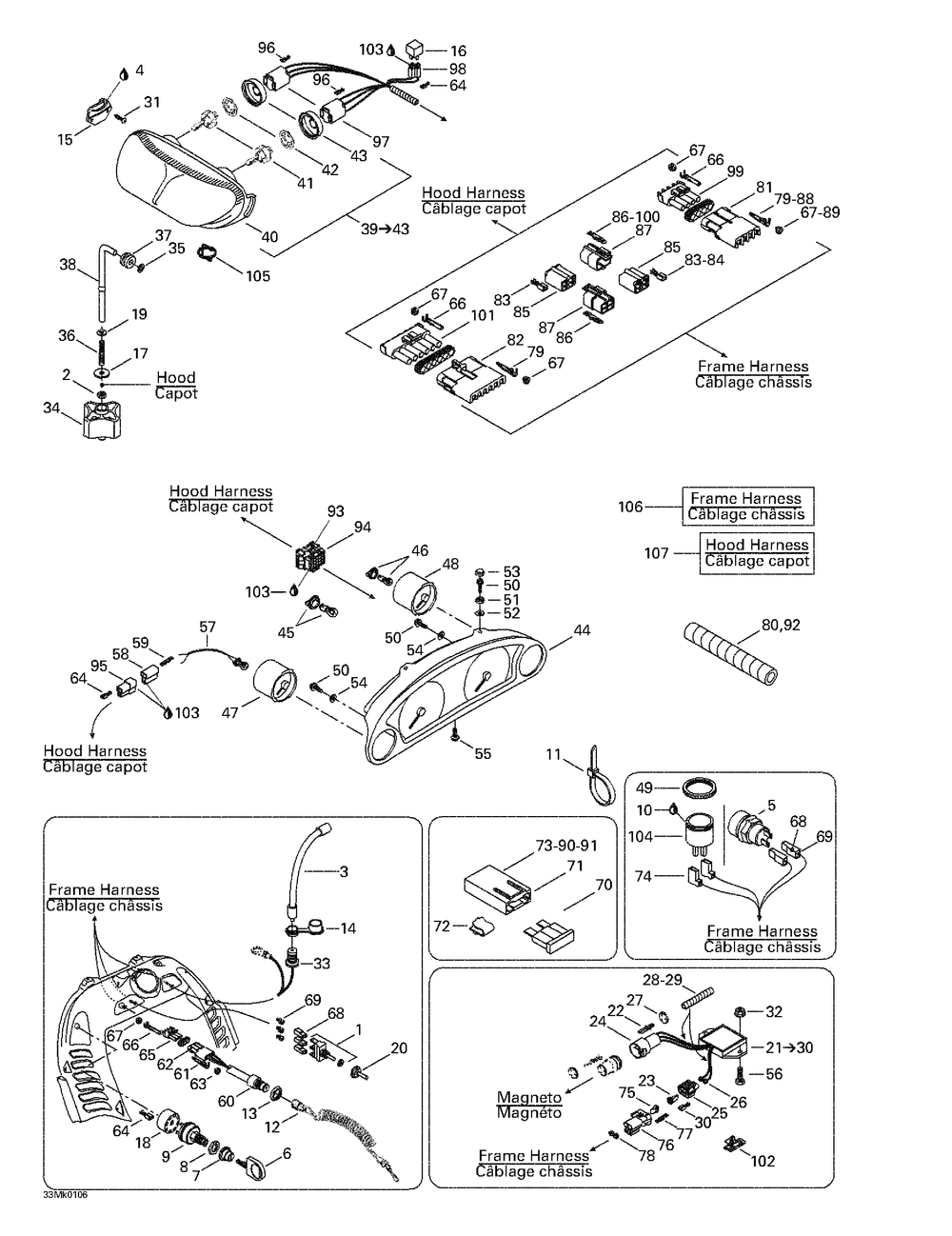

10- Electrical System
№ Наименование Примечание Кол-во
FUSE 30 AMPERES (5.000 per pack) 0
Tie-Rap 180 mm 0
LH SUPPORT 1
Tie-Rap 350 mm 0
FUSE 20 AMPERES (5.000 per pack) 0
2 Elastic Stop Nut M6 1
3 RALL.PRISE VIS.*EXT.-VISOR OUTL. Legend 380 F. Legend 550 F. 1
5 PUSH BUTTON 1
6 BLANK KEY (5.000 per pack) 0
7 SWITCH BOOT (5.000 per pack) 1
8 FACE NUT 1
9 IGNITION SWITCH Formula Deluxe 380 F. 1
10 SILICONE SEALANT 51388 300 ML 0
11 Tie-Rap 142 mm 0
12 DESS CAP 1
13 SAFETY NUT 1
14 CAP 1
15 RH SUPPORT 1
16 RELAY 1
17 RONDELLE *WASHER (25.000 per pack) 1
18 FEMALE TERMINAL HOUSING 9 CIRCUITS 1
19 FLAT WASHER 6 MM (10.000 per pack) 1
20 SWITCH COVER Model-SE (4.000 per pack) 1
21 REGU.TENSION *REGULATOR-VOLT Includes 21 - 30. 1
22 MALE TERMINAL (25.000 per pack) 3
24 MALE HOUSING 1
26 WIRE SEAL (5.000 per pack) 2
27 JOINT *SEAL 1
28 Vinyl Tubing, Low Temperature  (3.000 per pack) 0
30 FEMALE TERMINAL (5.000 per pack) 2
32 Hex. Flanged Elastic Nut M6 2
34 HANDLE 1
35 Push Nut 1
36 SPRING 1
37 GROMMET 1
38 ADJUSTER ROD 1
39 HALOGEN HEADLAMP ASS Y Includes 16 - 19. 1
41 HALOGEN BULB 60/55 W 12 V 2
42 BULB HOLDER 2
43 COVER 2
49 PLASTIC NUT 1
50 SCREW K40 X 10 (5.000 per pack) 4
51 RETAINER CAP (10.000 per pack) 2
52 Flat Washer 4 mm Stainless 2
53 Black Snap Cap 2
54 RONDELLE *WASHER (10.000 per pack) 2
55 HEX. FLANGED SCREW tahos_8 X 3/8 (5.000 per pack) 1
56 HEX. SCREW M6 X 20 (10.000 per pack) 2
58 MALE HOUSING (5.000 per pack) 1
59 MALE TERMINAL (10.000 per pack) 2
60 TERMINAL ASStahos_Y SUV 600 1
61 Male Terminal 3
62 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
63 Wire Seal 3
64 FEMALE TERMINAL (10.000 per pack) 0
65 MALE HOUSING 3 CIRCUITS 0
66 FEMALE TERMINAL (5.000 per pack) 0
68 Female Terminal Housing, 1 Circuit 0
69 Female Terminal 0
70 FUSE 1 AMPERE (2.000 per pack) 0
71 FUSE HOLDER 0
72 CLIP (10.000 per pack) 0
73 FEMALE TERMINAL (25.000 per pack) 0
74 FEMALE TERMINAL (10.000 per pack) 0
78 JOINT DE FIL *SEAL-WIRE (5.000 per pack) 0
80 TUBING 16 MM 0
81 BLOC 4 CIRC.FEM*HOUSING-TAB 0
82 BLOC 6 CIRC.FEM*HOUSING-TAB 0
83 FEMALE TERMINAL (10.000 per pack) 0
84 FEMALE TERMINAL (10.000 per pack) 0
85 LOGEMENT FEMEL.*HOUSING-FEMALE (5.000 per pack) 0
86 MALE TERMINAL (10.000 per pack) 0
87 MALE HOUSING (5.000 per pack) 0
88 Male Terminal 0
89 WIRE SEAL (10.000 per pack) 0
90 FEMALE TERMINAL (2.000 per pack) 0
92 Tubing 13 mm  (10.000 per pack) 0
95 FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack) 0
96 FEMALE TERMINAL (25.000 per pack) 0
97 FEMALE TERMINAL HOUSING 3 CIRCUITS (10.000 per pack) 0
98 FEMALE HOUSING 5 CIRCUITS 0
99 MALE HOUSING 4 CIRCUITS (5.000 per pack) 0
102 Housing Support 0
103 DIELECTRIC GREASE 150 G 0
104 HORN 1
105 SPRING Europe 1
