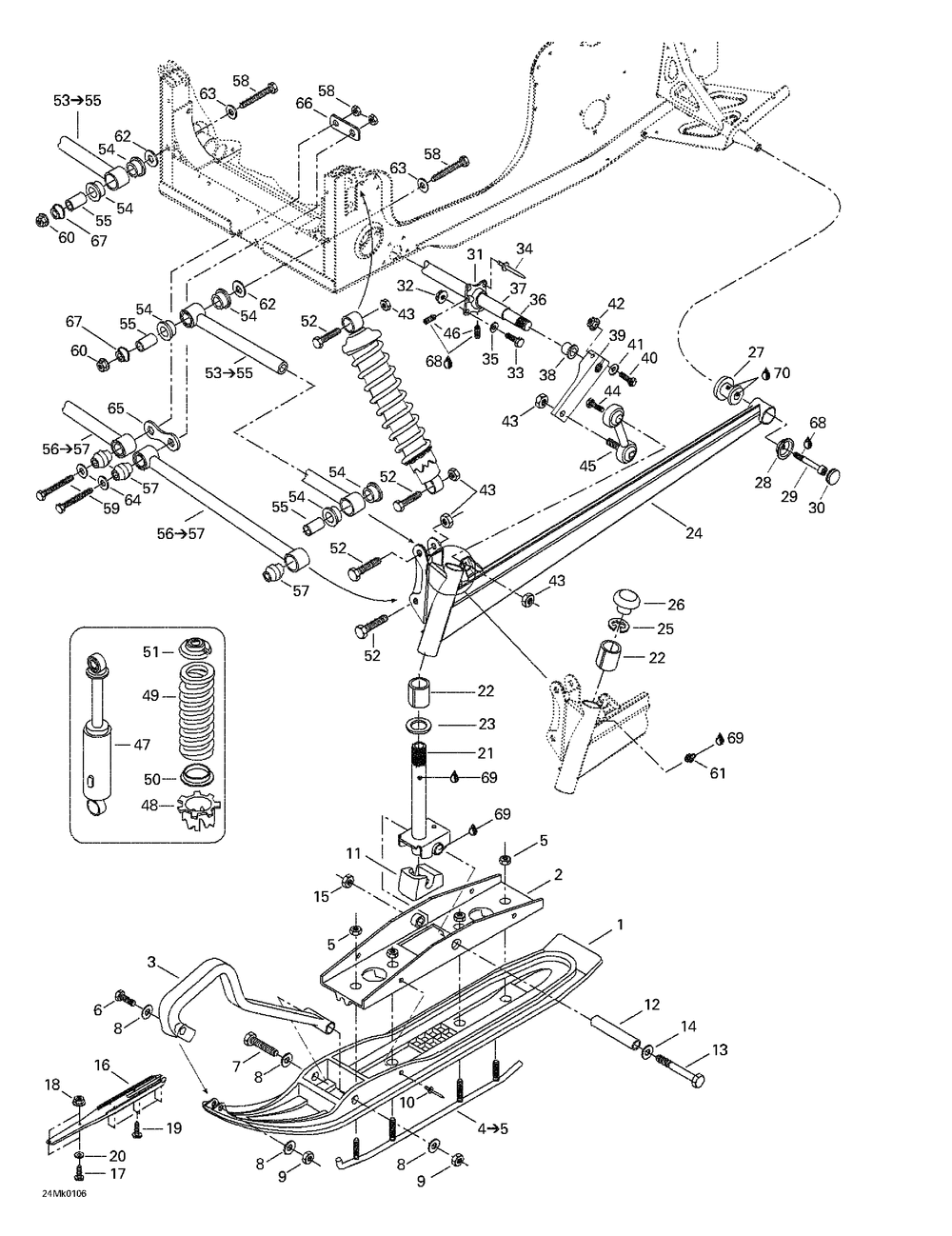

07- Front Suspension And Ski

Корзина пуста
SKI-DOO Grand Touring 800 SE Grand Touring 800 SE 07- Front Suspension And Ski
07- Front Suspension And Ski
№ Наименование Примечание Кол-во
SKI-LINER FLEX MX-Z 500. MX-Z 600. 2
1 SKI-LINER FLEX 2
2 BRIDGE Includes 2 - 3. 2
3 BLACK HANDLE 2
4 CARBIDE RUNNER 1
5 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 8
6 HEX. SCREW M8 X 50 (10.000 per pack) 2
7 SCREW-HEX. M8 X 100 (10.000 per pack) 2
8 Flat Washer 8 mm 8
9 Hex. Elastic Stop Nut M8 4
11 SKI STOPPER 2
12 SPACER (2.000 per pack) 2
13 HEX. SCREW M10 X 110 (5.000 per pack) 2
14 RONDELLE *WASHER (25.000 per pack) 2
15 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 4
16 CON.PROACTIF *CONTROL-PROAC. GT 2
18 FLANGED ELASTIC NUT M5 (4.000 per pack) 4
19 PHILLIPS SCREW tahos_10 X 7/8" (6.000 per pack) 12
20 FLAT WASHER 6 MM (10.000 per pack) 4
21 SKI LEG 2
22 CUSHION 4
23 RONDELLE *WASHER (10.000 per pack) 2
25 CIRCLIP (10.000 per pack) 2
26 CAP 2
27 AMORT. CAOUT. *DAMPER 2
29 SOCKET HEAD SCREW M10 X 25 (10.000 per pack) 4
30 CAP (10.000 per pack) 2
32 Hex. Flanged Elastic Nut M6 2
33 HEX. SCREW M6 X 25 (10.000 per pack) 2
34 RIVET-POP 1/4 *RIVET-POP 1/4 (25.000 per pack) 6
38 COUSSINET *CUSHION 2
39 LEVIER STABIL.U*LEVER-STABIL.MACH. 2
40 HEX. SCREW M8 X 45 (10.000 per pack) 2
42 Hex. Flanged Elastic Nut M8 2
44 HEX. SCREW M10 X 35 (10.000 per pack) 2
45 JOINT ROTULE *BALL JOINT 2
46 SOCKET SET SCREW M8 X 10 (5.000 per pack) 4
48 ADJUSTER RING 2
50 SPRING GUIDE 2
51 SPRING STOPPER 2
52 HEX. SCREW M10 X 55 (5.000 per pack) 8
54 CUSHION 4
56 BARREAU INF.ASS*ARM-LOWER ASSY Includes 57 - 58. 2
57 COUSSINET *BUSHING 4
58 HEX. SCREW M10 X 110 (5.000 per pack) 2
59 SCREW-HEX.CAP ISO.4014 (5.000 per pack) 2
61 GREASE FITTING (10.000 per pack) 2
62 RONDELLE *WASHER 2
63 FLAT WASHER (10.000 per pack) 2
64 RONDELLE *WASHER (10.000 per pack) 2
68 LOCTITE 271 10 ML 0
69 SUSPENSION GREASE 10 X 400 G 0
70 GRAISSE *GREASE 0
