SKI-DOO Mach 1 R Mach 1 R 01- Crankcase Reed Valve Water Pump (699)

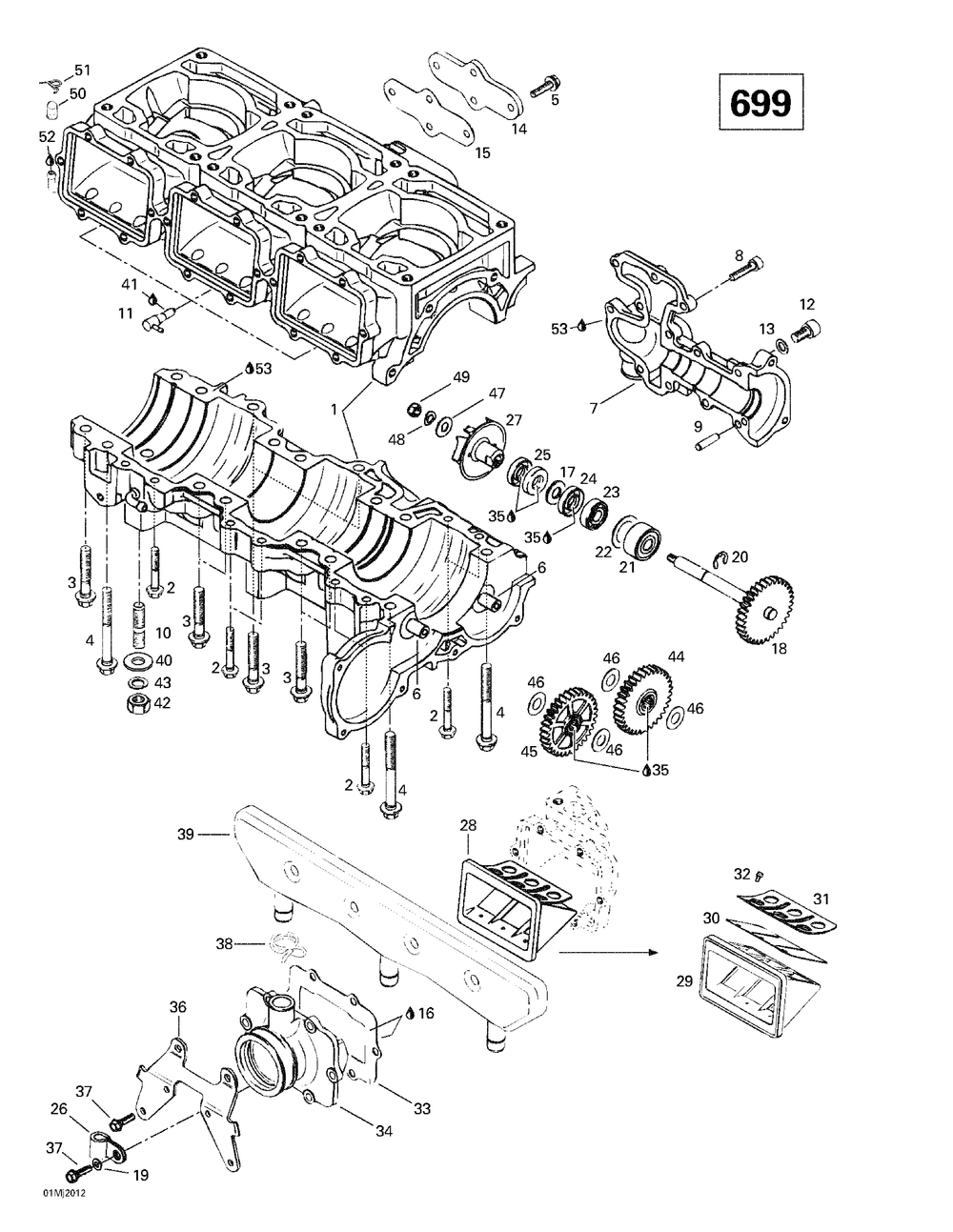

01- Crankcase Reed Valve Water Pump (699)
№ Наименование Примечание Кол-во
2 HEX. COLLAR SCREW M6 X 40 (5.000 per pack) 8
3 HEX. COLLAR SCREW M8 X 45 12
4 HEX. COLLAR SCREW M8 X 65 4
5 SCREW-TAPPING 4
6 INTERMEDIATE GEAR SHAFT 2
8 Socket Head Screw M6 X 25 12
11 CHECK VALVE 3
12 SOCKET HEAD SCREW M8 X 16 (10.000 per pack) 1
13 Sealing Ring 1
16 LOCTITE 515 50 ML 0
17 FLAT WASHER M10 (10.000 per pack) 1
19 RONDELLE *WASHER (5.000 per pack) 1
20 RETAINING RING 1
21 ROULEMENT BILLE*BALL BEARING 1
22 CALE EPAISSEUR *SHIM 1
23 BALL BEARING 1
24 OIL SEAL 1
25 OIL SEAL 2
26 Cable clip 1
28 REED VALVE ASS Y Includes 23 to 27 3
30 REED PEDAL 6
31 REED PEDAL STOP 6
32 PHILLIPS SCREW M3 X 5 (10.000 per pack) 18
33 JOINT 1.00MM *GASKET 1.00MM 3
34 TUBULURE D ADM.*SOCKET-INTAKE GT 700. 3
35 DOW CORNING 111*DOW CORNING 111 0
36 PORTEUR ADA.CAR*CARRIER-CAR.SO 3
37 SCREW-TAPPING M5 X 20 (10.000 per pack) 18
40 Flat Washer 10 mm 4
41 LOCTITE 648 10 ML 0
42 Hex. Nut M10 4
43 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 4
45 SPROCKET 32 TEETH 1
46 THRUST WASHER 4
47 RONDELLE *WASHER 1
48 Spring Washer 1
50 Cap 1
51 CLAMP 1
52 ISOFLEX GREASE TOPAS NB52 50 G 0
53 SEALING COMPOUND 30 ML 0
