SKI-DOO Formula Deluxe 380/500 Formula Deluxe 380/500 10- Electrical System

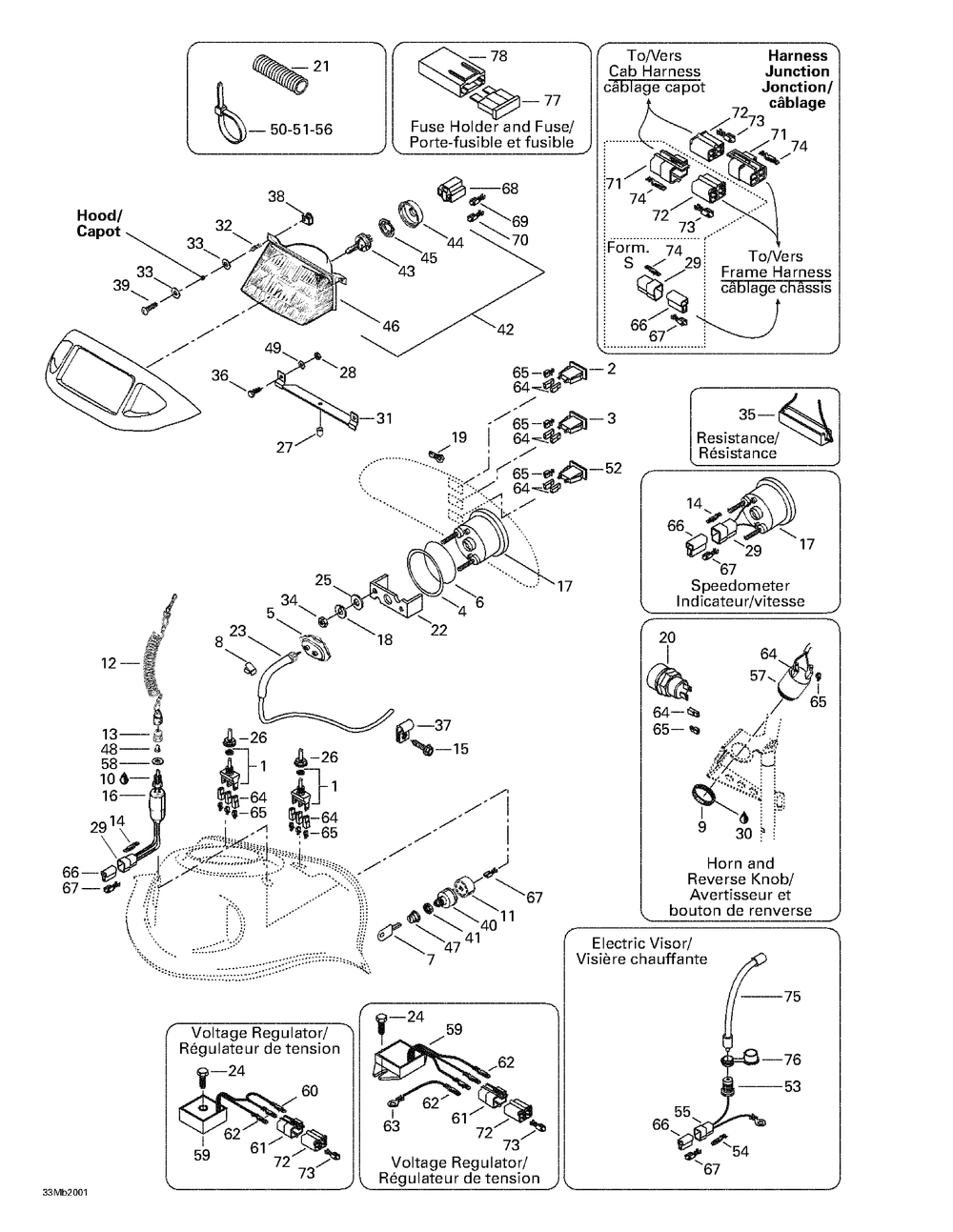

10- Electrical System
№ Наименование Примечание Кол-во
SCREW-FORMING HEX.HD.FL.GM6174M MX Z 380 F. (10.000 per pack) 2
CASE HOLDER 1
RONDELLE *WASHER 1
JOINT TORIQUE *PACKING 1
IGNITION SWITCH Formula Deluxe 380 F. 1
1 SWITCH (HEATING GRIP) 2
2 PILOT LAMP OIL LEVEL/BRAKE 1
3 PILOT LAMP HEADLAMP 1
7 BLANK KEY (5.000 per pack) 0
8 CLIP (10.000 per pack) 0
9 PLASTIC NUT 1
10 DIELECTRIC GREASE 150 G 0
11 FEMALE TERMINAL HOUSING 9 CIRCUITS 1
12 CAP ASS Y 1
13 SWITCH NUT (5.000 per pack) 1
14 MALE TERMINAL (10.000 per pack) 0
15 HEX. SCREW 12 X 3/4 (10.000 per pack) 2
16 BRAKE SWITCH ASS Y 1
19 INSTRUMENTATION BULB (10.000 per pack) 0
20 PUSH BUTTON 1
21 TUBING 10 MM 0
24 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
25 FLAT WASHER (10.000 per pack) 2
26 SWITCH COVER Model-SE (4.000 per pack) 2
27 RUBBER STOPPER 1
28 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
29 MALE HOUSING (5.000 per pack) 0
30 SILICONE SEALANT 51388 300 ML 0
32 SPRING (4.000 per pack) 2
33 FLAT WASHER M5 (10.000 per pack) 4
35 Resistance 0
36 HEX. SCREW M5 X 12 (10.000 per pack) 2
37 Cable clip 2
38 PROJECTOR NUT (10.000 per pack) 2
39 PLASTITE PHILLIPS SCREW M4 X 40 (10.000 per pack) 2
40 IGNITION SWITCH MX Z 380 F. 1
41 FACE NUT 1
42 HEADLAMP Includes 42 to 45 1
43 HALOGEN BULB 60/55 W 12 V 1
44 COVER 1
45 BULB HOLDER 1
46 HEADLAMP 1
47 SWITCH BOOT (5.000 per pack) 1
48 PLUNGER CAP (5.000 per pack) 1
49 FLAT WASHER (10.000 per pack) 2
50 Tie-Rap 180 mm 0
51 Tie-Rap 350 mm 0
52 PILOT LAMP ELECTRIC REVERSE 1
56 Tie Rap 0
57 HORN 1
59 VOLTAGE REGULATOR See 33M0501B 1
59 REGU.TENSION AS*REGULATOR-VOLT Skandic 500F. Skandic 500F (SWT). 1
61 MALE HOUSING (5.000 per pack) 1
63 OPEN BARREL (10.000 per pack) 1
64 Female Terminal Housing, 1 Circuit 0
65 Female Terminal 0
66 FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack) 0
67 FEMALE TERMINAL (10.000 per pack) 0
68 FEMALE TERMINAL HOUSING 3 CIRCUITS (10.000 per pack) 0
69 FEMALE TERMINAL (25.000 per pack) 0
70 FEMALE TERMINAL (10.000 per pack) 0
72 LOGEMENT FEMEL.*HOUSING-FEMALE (5.000 per pack) 0
73 FEMALE TERMINAL (10.000 per pack) 0
74 MALE TERMINAL (10.000 per pack) 0
75 RALL.PRISE VIS.*EXT.-VISOR OUTL. Legend 380 F. Legend 550 F. 1
76 CAP 1
77 FUSE 30 AMPERES (5.000 per pack) 0
78 FUSE HOLDER 0
