SKI-DOO Touring LE Touring LE 08- Rear Arm Rear Suspension 121?-136?

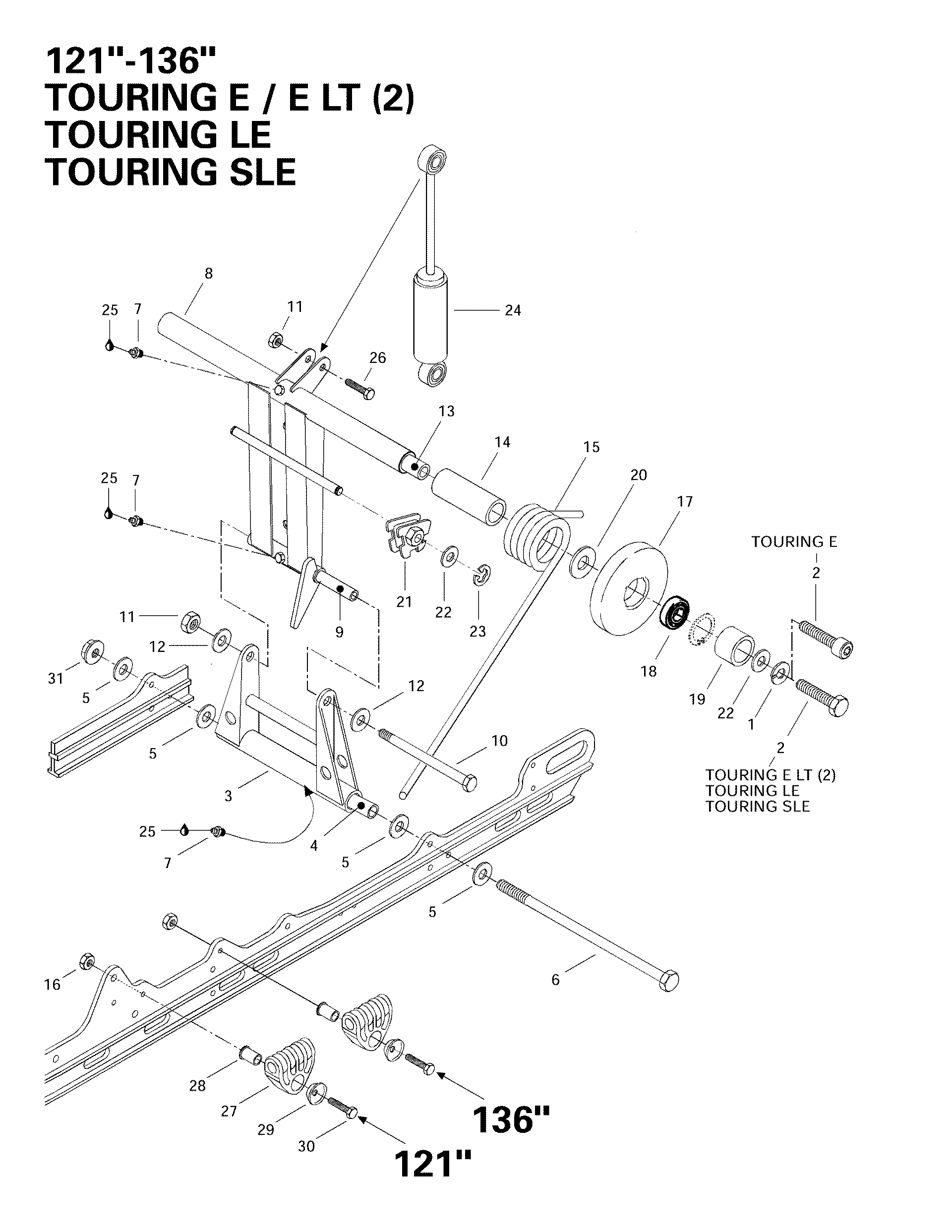

08- Rear Arm Rear Suspension 121?-136?
№ Наименование Примечание Кол-во
RH ADJUST CAM 1
SPRING-RH. P. 1
SPRING-LH.P. 1
SHOCK 1
CUSHION (5.000 per pack) 1
LH SPRING 1
HEX. SCREW M10 X 35 Formula Deluxe 500. (10.000 per pack) 2
1 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 2
2 SOCKET SCREW M10 X 35 (10.000 per pack) 2
3 PIVOT ARM 1
4 AXLE-PIV.LOWER 1
5 FLAT WASHER (10.000 per pack) 4
6 BOLT M8 X 248MM 1
7 GREASE FITTING (10.000 per pack) 3
8 ARM-REAR 1
9 UPPER AXLE PIVOT ARM 1
10 BOLT M8 SHORT 1
11 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 2
12 FLAT WASHER 8 MM (10.000 per pack) 2
13 SHAFT-CROSS RR 1
14 DOUILLE *BUSHING 2
15 RH SPRING 1
16 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
17 ROUE SUPPORT *WHEEL-IDLER Includes 17 - 18. 2
18 BALL BEARING 2
19 SPACER 2
20 RONDELLE *WASHER (5.000 per pack) 2
21 LH ADJUST CAM 1
22 FLAT WASHER 10 MM (10.000 per pack) 6
23 CIRCLIP-"E 2
24 CUSHION (5.000 per pack) 1
26 HEX. SCREW M8 X 40 (10.000 per pack) 1
27 SPRING SUPPORT Formula Z 583. Formula 583 Deluxe. 2
28 AXE GUIDE RESS.*AXLE-GUIDE SPRING Formula Z 583. Formula 583 Deluxe. 2
29 WASHER-RETAINE 2
30 HEX. SCREW M6 X 45 MXZ X 440 LC. (10.000 per pack) 2
31 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 1
