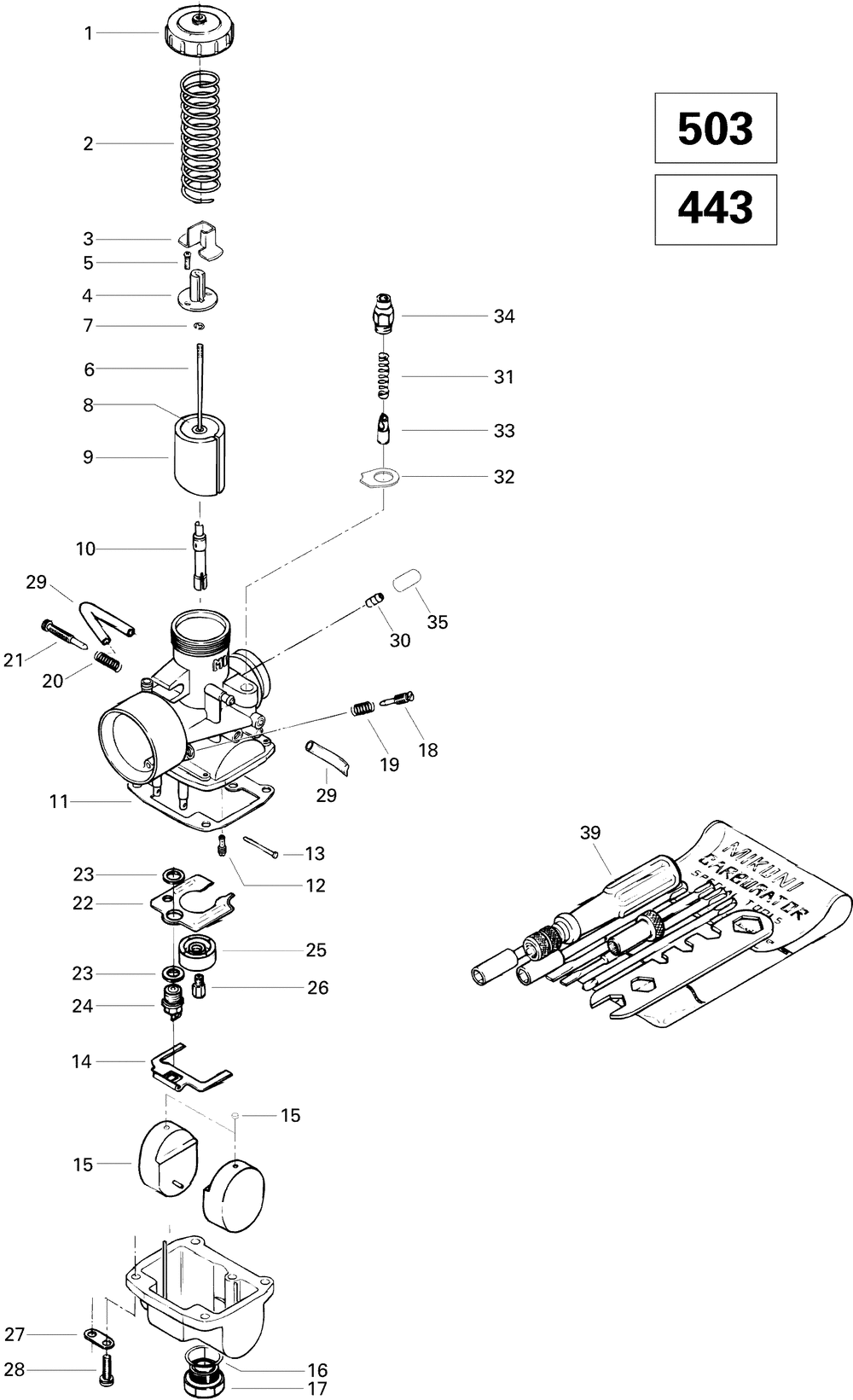

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | COUVERCLE CARB.*TOP-MIX.CHAMB. | 1 | |
| 2 | SPRING | 1 | |
| 3 | COVER | 1 | |
| 4 | CONNECTOR | 1 | |
| 5 | SCREW WITH WASHER (5.000 per pack) | 2 | |
| 6 | AIGUILLE 6DH02 *NEEDLE Skandic 500F. Skandic 500F (SWT). | 1 | |
| 7 | E-RING (2.000 per pack) | 1 | |
| 8 | JOINT TAMPON *PACKING (5.000 per pack) | 1 | |
| 9 | PISTON VALVE 2.5 | 1 | |
| 10 | GICLEUR AIGUIL.*JET NEEDLE Skandic 500F. Skandic 500F (SWT). | 1 | |
| 11 | JOINT *GASKET (5.000 per pack) | 1 | |
| 12 | PILOT JET PJ40 (5.000 per pack) | 1 | |
| 13 | LEVER PIN (5.000 per pack) | 1 | |
| 14 | FLOAT LEVER | 1 | |
| 15 | CAP (5.000 per pack) | 2 | |
| 15 | FLOAT | 2 | |
| 16 | O-RING (5.000 per pack) | 1 | |
| 17 | DRAIN PLUG SCREW | 1 | |
| 18 | AIR SCREW | 1 | |
| 19 | SPRING | 1 | |
| 20 | SPRING (5.000 per pack) | 1 | |
| 21 | THROTTLE SCREW | 1 | |
| 22 | BAFFLE | 1 | |
| 23 | SEAT WASHER (5.000 per pack) | 2 | |
| 24 | NEEDLE VALVE 1.5 | 1 | |
| 25 | BAFFLE RING | 1 | |
| 26 | MAIN JET 180 | 1 | |
| 26 | MAIN JET 190 MAG Side | 1 | |
| 27 | PLAQUE *PLATE | 2 | |
| 28 | SCREW WITH LOCK WASHER (5.000 per pack) | 4 | |
| 29 | HOSE Grand Touring SE. | 2 | |
| 30 | NIPPLE | 1 | |
| 31 | SPRING (2.000 per pack) | 2 | |
| 35 | CAP | 2 | |
| 36 | TOOL KIT | 1 |
