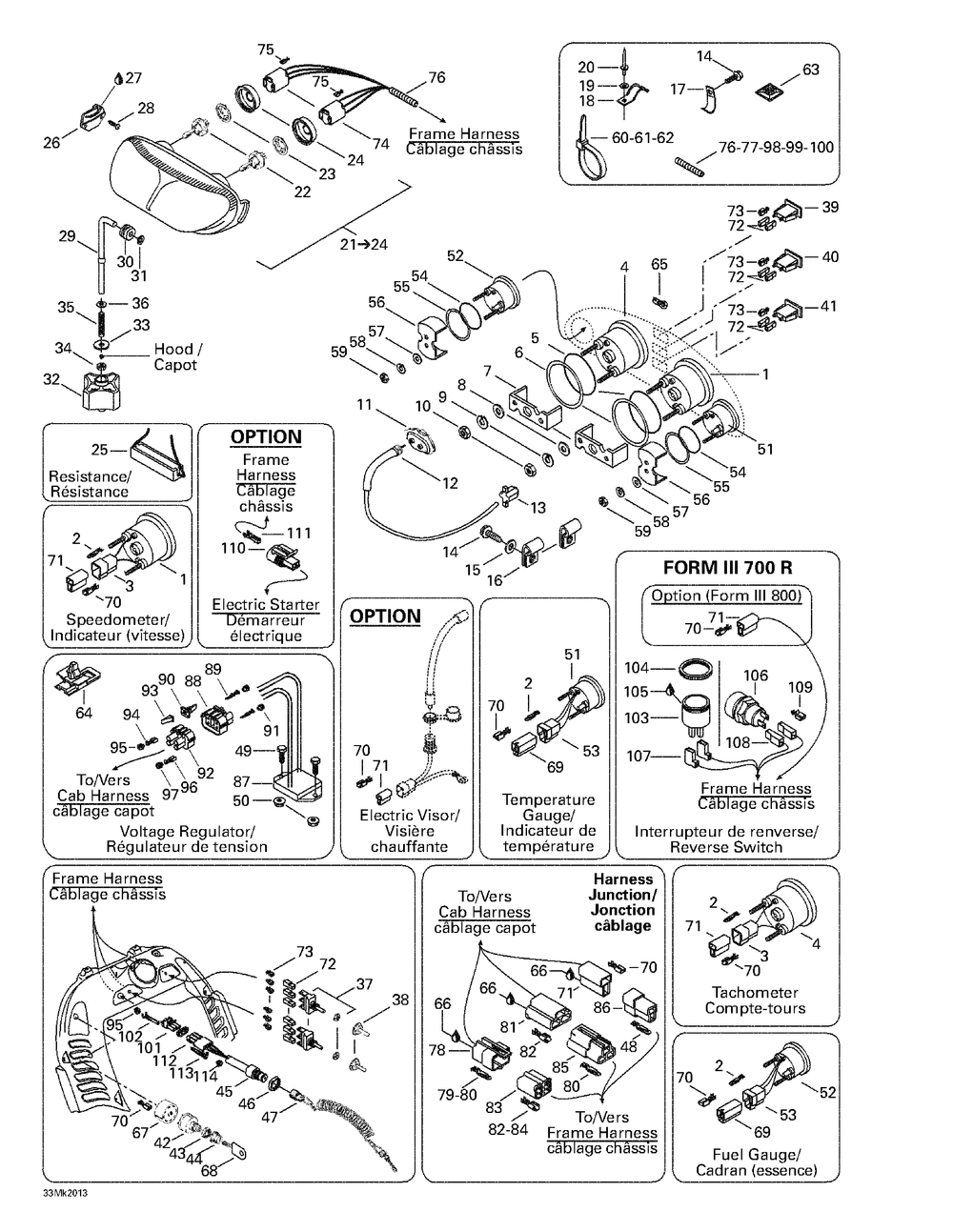

SKI-DOO Formula III 700 R Formula III 700 R 10- Electrical System
10- Electrical System
№ Наименование Примечание Кол-во
LH SUPPORT 1
SPEEDOMETER MPH 0
1 SPEEDOMETER KMH/MPH 1
2 MALE TERMINAL (10.000 per pack) 0
3 MALE HOUSING (5.000 per pack) 2
5 JOINT TORIQUE *PACKING 2
6 RONDELLE *WASHER 2
7 CASE HOLDER 2
8 FLAT WASHER (10.000 per pack) 4
13 SPEEDO DRIVE INSERT (10.000 per pack) 1
14 HEX. SCREW 12 X 3/4 (10.000 per pack) 4
15 RONDELLE *WASHER (50.000 per pack) 2
16 Cable clip 2
19 RONDELLE *WASHER (10.000 per pack) 1
20 Pop Rivet 3/16" 1
21 HALOGEN HEADLAMP ASS Y Includes 16 - 19. 1
22 HALOGEN BULB 60/55 W 12 V 2
23 BULB HOLDER 2
24 COVER 2
25 Resistance 1
26 RH SUPPORT 1
29 ADJUSTER ROD 1
30 GROMMET 1
31 Push Nut 1
32 HANDLE 1
33 RONDELLE *WASHER (25.000 per pack) 1
34 Elastic Stop Nut M6 1
35 SPRING 1
36 FLAT WASHER 6 MM (10.000 per pack) 1
37 SWITCH (HEATING GRIP) 2
38 SWITCH COVER Model-SE (4.000 per pack) 2
39 PILOT LAMP OIL LEVEL/BRAKE 1
40 PILOT LAMP HEADLAMP 1
41 PILOT LAMP DESS 600 SUV 1
42 IGNITION SWITCH Formula Deluxe 380 F. 1
43 FACE NUT 1
44 SWITCH BOOT (5.000 per pack) 1
45 TERMINAL ASStahos_Y SUV 600 1
46 SAFETY NUT 1
47 DESS CAP 1
49 HEX. SCREW M6 X 20 (10.000 per pack) 2
50 Hex. Flanged Elastic Nut M6 2
52 INDICATEUR ESS.*GAUGE-FUEL 1
53 LOGEMENT MALE *HOUSING-MALE SE Models (10.000 per pack) 2
54 JOINT TORIQUE *PACKING (5.000 per pack) 2
55 RONDELLE FORMEE*WASHER 2
57 FLAT WASHER (10.000 per pack) 4
59 ECROU GAUGE *NUT-GAUGE SE Models (5.000 per pack) 4
60 Tie-Rap 350 mm 0
61 Tie-Rap 180 mm 0
62 Tie-Rap 142 mm 0
63 TIE RAP MOUNT (5.000 per pack) 0
64 Housing Support 1
65 INSTRUMENTATION BULB (10.000 per pack) 0
66 DIELECTRIC GREASE 150 G 0
67 FEMALE TERMINAL HOUSING 9 CIRCUITS 1
68 BLANK KEY (5.000 per pack) 0
69 LOGEMENT FEMEL.*HOUSING-FEMALE (10.000 per pack) 2
70 FEMALE TERMINAL (10.000 per pack) 0
71 FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack) 5
72 Female Terminal Housing, 1 Circuit 12
73 Female Terminal 0
74 FEMALE TERMINAL HOUSING 3 CIRCUITS (10.000 per pack) 2
75 FEMALE TERMINAL (25.000 per pack) 0
76 Tubing 13 mm  (10.000 per pack) 0
77 Tubing 16 mm 0
78 MALE HOUSING (5.000 per pack) 1
79 MALE TERMINAL (10.000 per pack) 0
80 MALE TERMINAL (10.000 per pack) 0
82 FEMALE TERMINAL (10.000 per pack) 0
83 LOGEMENT FEMEL.*HOUSING-FEMALE (5.000 per pack) 1
84 FEMALE TERMINAL (10.000 per pack) 0
87 VOLTAGE REGULATOR Includes 48 - 52. 1
89 FEMALE TERMINAL (5.000 per pack) 0
91 WIRE SEAL (5.000 per pack) 0
95 JOINT DE FIL *SEAL-WIRE (5.000 per pack) 0
96 MALE TERMINAL (5.000 per pack) 0
98 Tubing 9 mm (10.000 per pack) 0
100 TUBING 10 MM 0
101 MALE HOUSING 3 CIRCUITS 1
102 FEMALE TERMINAL (5.000 per pack) 0
103 HORN 1
104 PLASTIC NUT 1
105 SILICONE SEALANT 51388 300 ML 0
106 PUSH BUTTON 1
107 FEMALE TERMINAL (10.000 per pack) 0
110 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 0
111 FEMALE TERMINAL (5.000 per pack) 0
112 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
113 Male Terminal 0
114 Wire Seal 1
