SKI-DOO Formula Deluxe 500 LC/583/670 Formula Deluxe 500 LC/583/670 08- Rear Suspension 2 (670)

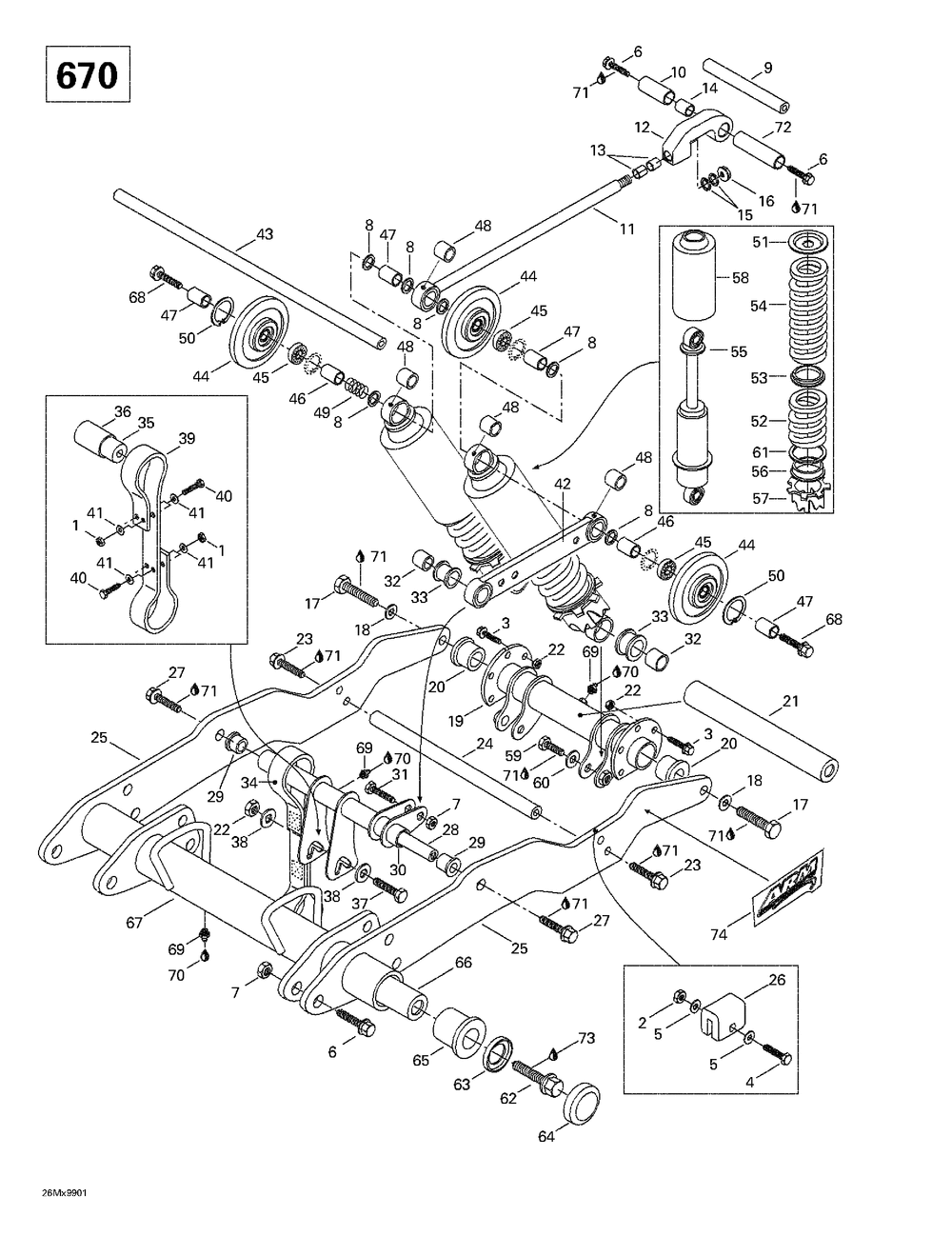

08- Rear Suspension 2 (670)
№ Наименование Примечание Кол-во
1 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 4
2 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
3 HEX. FLANGED SCREW M8 X 25 Formula Deluxe 670. (10.000 per pack) 10
4 HEX. SCREW M5 X 40 (5.000 per pack) 2
5 FLAT WASHER (10.000 per pack) 4
6 HEX. FLANGED SCREW M10 X 30 Formula Deluxe 670. (10.000 per pack) 8
7 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 7
8 RONDELLE *WASHER 6
16 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 1
18 SPRING WASHER 14 MM (10.000 per pack) 2
22 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 11
31 HEX. SCREW M10 X 45 (10.000 per pack) 1
33 COUSSINET URETH*CUSHION-URETH. Formula Deluxe 670. (5.000 per pack) 3
37 HEX. SCREW M8 X 80 (10.000 per pack) 1
38 Washer Yellow 2
40 HEX. SCREW M6 X 25 (10.000 per pack) 4
44 ROUE SUPPORT *WHEEL-IDLER Includes 44 - 45. Formula Deluxe 670. 3
45 BALL BEARING 3
50 CIRCLIP (5.000 per pack) 2
51 BUTEE RESSORT *STOPPER-SPRING 2
55 AMORT. ARR. *SHOCK-REAR Formula Deluxe 670. 2
57 CAME *CAM Formula Deluxe 670. 2
60 Washer 2
64 CAP (10.000 per pack) 2
69 GREASE FITTING (10.000 per pack) 3
71 LOCTITE 271 10 ML 0
73 LOCTITE 243 10 ML 0
