SKI-DOO Grand Touring 500/583 Grand Touring 500/583 08- Rear Suspension

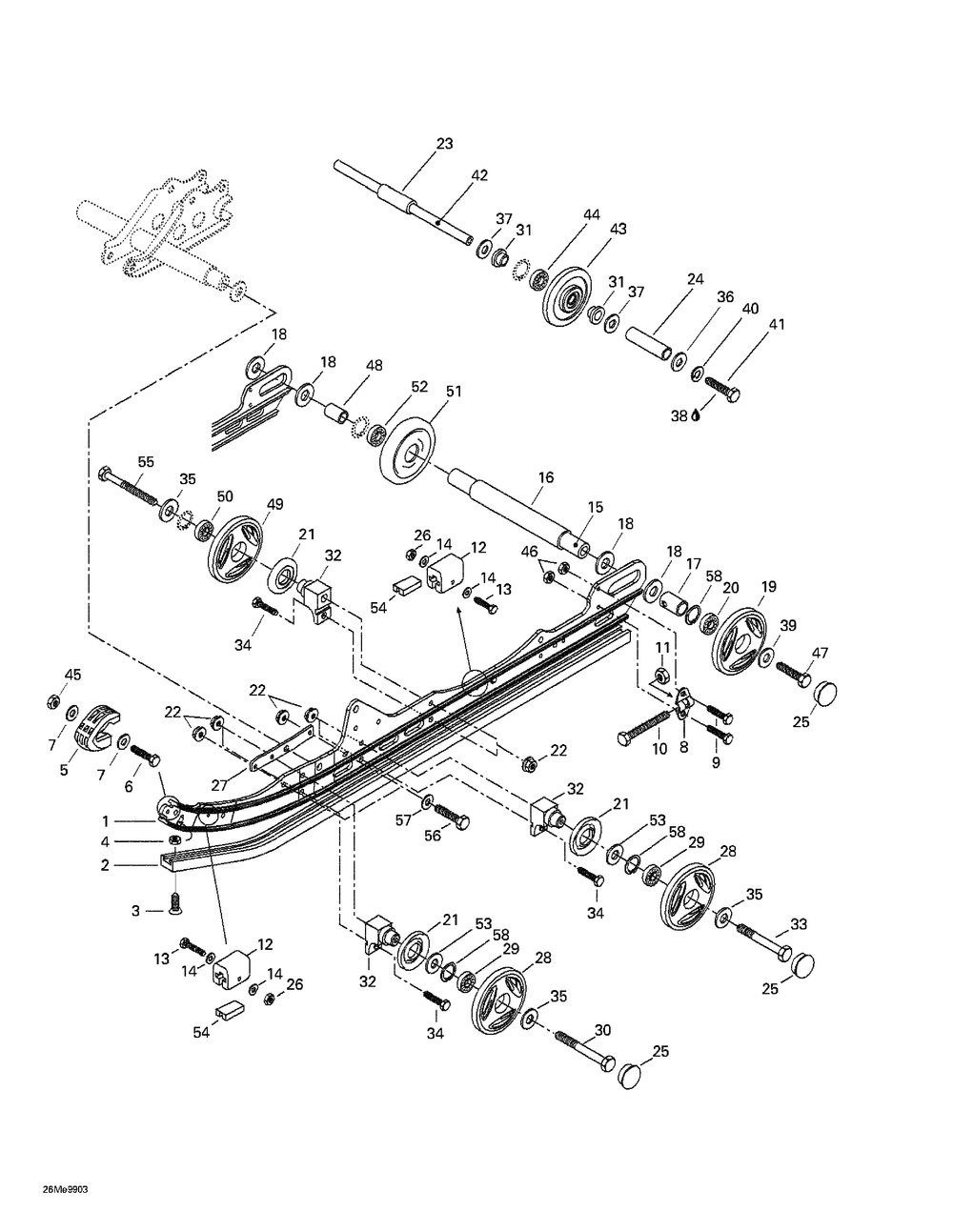

08- Rear Suspension
№ Наименование Примечание Кол-во
2 GLISSIERE NOIR *SHOE RUNNER 2
3 PHILLIPS SCREW M6 X 25 (5.000 per pack) 2
4 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
5 RUNNER PROTECTOR 2
6 HEX. SCREW M5 X 25 (10.000 per pack) 2
7 RONDELLE *WASHER (50.000 per pack) 4
8 TENSIONER (5.000 per pack) 2
9 HEX. SCREW M6 X 20 (10.000 per pack) 4
10 HEX. SCREW M10 X 100 (5.000 per pack) 2
11 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 2
12 RUBBER STOPPER ASS Y (5.000 per pack) 4
13 HEX. SCREW M5 X 40 (5.000 per pack) 4
14 FLAT WASHER (10.000 per pack) 8
15 REAR AXLE 1
16 CENTRAL SPACER 1
17 OUTER SPACER 2
18 RONDELLE *WASHER 4
20 BALL BEARING 2
21 LABYRINTH SEAL 6
22 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 16
25 WHEEL CAP (10.000 per pack) 6
26 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 4
30 HEX. SCREW M8 X 90 Model-LE (5.000 per pack) 2
31 CUSHION (10.000 per pack) 4
32 SUPPORT (2.000 per pack) 6
33 HEX. SCREW M8 X 85 (5.000 per pack) 2
34 HEX. SCREW M8 X 25 (10.000 per pack) 6
35 RONDELLE *WASHER (10.000 per pack) 6
37 RONDELLE *WASHER (10.000 per pack) 4
38 LOCTITE 243 10 ML 0
39 RONDELLE *WASHER (10.000 per pack) 2
40 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 2
41 HEX. SCREW M8 X 30 (10.000 per pack) 2
43 ROUE SUPPORT *WHEEL-IDLER Includes 43 - 44. 2
46 Hex. Flanged Elastic Nut M6 4
47 SCREW-HEXAGONAL (10.000 per pack) 2
48 INNER SPACER 1
49 WHEEL 139 MM ASS Y Includes 32 - 33. 2
51 BLACK WHEEL ASS Y 165 MM Includes 50 - 51. 1
53 RONDELLE *WASHER (10.000 per pack) 4
54 REINFORCEMENT STOPPER 4
55 HEX. SCREW M8 X 80 (10.000 per pack) 2
57 FLAT WASHER 8 MM (10.000 per pack) 4
58 CIRCLIP (10.000 per pack) 6
