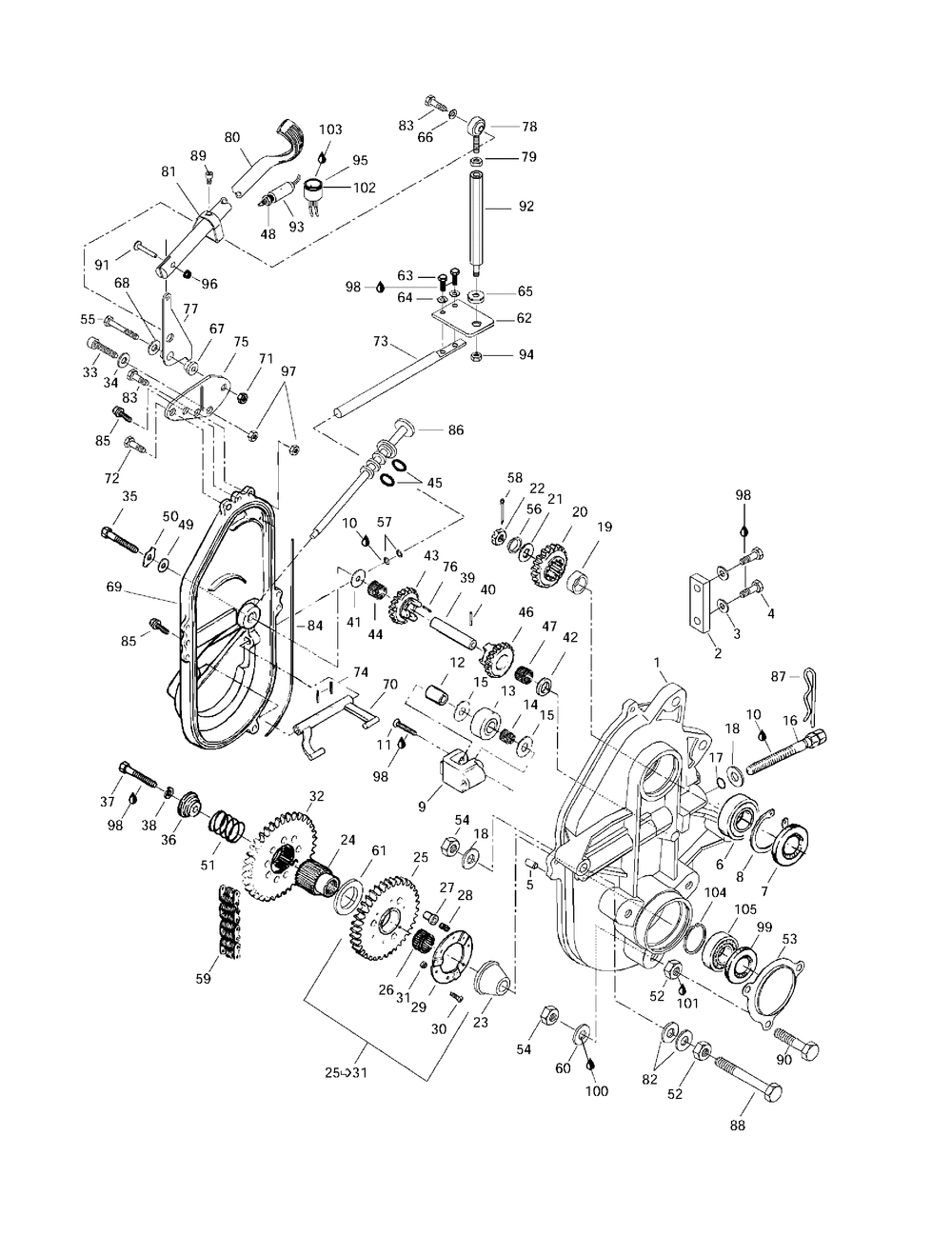

05- Transmission

Корзина пуста
Наименование Примечание Кол-во
4 HEX. SCREW M6 X 16 (10.000 per pack) 2
5 CYLINDER PIN 1
6 BALL BEARING 1
7 OIL SEAL 1
8 CIRCLIP (10.000 per pack) 1
9 MACHINED TENSIONER 1
11 SCREW 1
12 SPACER 1
13 ROLLER 1
14 NEEDLE BEARING 1
15 RONDELLE *WASHER (10.000 per pack) 2
16 O-RING Formula 500 Deluxe. (10.000 per pack) 1
17 O-RING (10.000 per pack) 1
18 FLAT WASHER 10 MM (10.000 per pack) 3
19 SHIM 1
22 HEX. CASTELLATED NUT M16 (5.000 per pack) 1
23 RETAINING RING 1
24 COUPLING AXLE 1
25 ROUE DENTEE 44D*SPROCKET 44TH Formula Deluxe 500. 1
25 PIGNON 44D ASS.*SPROCK-44TH ASSY Includes 55 - 62. Formula Deluxe 500. 1
26 NEEDLE BEARING 1
27 DRIVE PIN (3.000 per pack) 3
28 SPRING (3.000 per pack) 3
29 RETAINER RING 1
30 HEX. SCREW M5 X 20 (10.000 per pack) 6
31 NUT-LOCK SPRING DIN.980V (10.000 per pack) 6
32 SLIDING GEAR 56 TEETH 1
33 SOCKET HEAD SCREW M6 X 16 (10.000 per pack) 1
34 FLAT WASHER 6 MM (10.000 per pack) 1
35 HEX. SCREW M8 X 90 (5.000 per pack) 1
36 CAP Formula DLX 500 LC. 1
37 HEX. SCREW M10 X 50 (10.000 per pack) 1
38 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 1
39 REVERSE SHAFT 1
40 PPIN-ROLLED DIN.1481 M3 X 12 Formula DLX 500 LC. (10.000 per pack) 1
41 SPACER 1
42 RING 1
43 ENGREN. 19D ASS*SPROCK-19 TEETH ASSY. Includes 77 to 78 1
44 NEEDLE BEARING 1
45 O-RING (10.000 per pack) 2
46 PIGNON 19D ASS.*SPROCK-19TH AS Includes 67 - 68. Formula Deluxe 500. 1
47 NEEDLE BEARING 1
48 BRASS NUT Formula DLX 500 LC. (5.000 per pack) 1
49 WASHER DIN 7603 (5.000 per pack) 1
50 TAB LOCK 1
52 SPACER 5
54 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 5
55 HEX. SCREW M8 X 45 Formula Deluxe 500. (10.000 per pack) 1
56 RONDELLE RES. *SPRING WASHER (10.000 per pack) 1
57 O-RING (5.000 per pack) 2
58 COTTER PIN (10.000 per pack) 1
59 CHAINE 72 M. *CHAIN-DRIVING Formula Deluxe 500. 1
61 RONDELLE *WASHER (2.000 per pack) 1
62 PLAQUE *PLATE Formula DLX 500 LC. 1
63 HEX. SCREW M5 X 14 (10.000 per pack) 2
64 WASHER-LOCK HELICAL DIN.127B (10.000 per pack) 2
66 WASHER-LOCK BLACK DIN.127B (10.000 per pack) 1
68 FLAT WASHER (10.000 per pack) 1
70 FORK 1
71 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 1
72 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 1
74 GOUP.RESSORT *PIN-SPRING 2
76 ALIGNEMENT ROD (5.000 per pack) 1
78 RH BALL-JOINT 1
79 HEX. NUT M6 (10.000 per pack) 1
80 POIGNEE *HANDLE Formula DLX 500 LC. 1
82 RONDELLE *WASHER (5.000 per pack) 0
83 HEX. SCREW M6 X 20 (10.000 per pack) 2
84 O-RING 1
85 HEX. FLANGED SCREW M6 X 30 (10.000 per pack) 4
86 FILLER CAP ASS Y Includes 22 to 23 1
87 GOUP.SURETE *COTTER PIN (5.000 per pack) 1
89 PHILLIPS SCREW 8X1/2" (10.000 per pack) 1
90 HEX. SCREW M10 X 40 Skandic 500. (10.000 per pack) 3
93 INTERRUPTEUR *SWITCH Formula 500 Deluxe. 1
94 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 1
96 PUSH NUT (10.000 per pack) 1
97 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
98 LOCTITE 271 10 ML 0
99 ANNEAU ETANCHE *OIL SEAL ASS Y 1
100 LOCTITE 515 50 ML 0
101 LOCTITE 243 10 ML 0
102 PLASTIC NUT 1
103 SILICONE SEALANT 51388 300 ML 0
105 ROULEMENT BILLE*BALL BEARING 1
