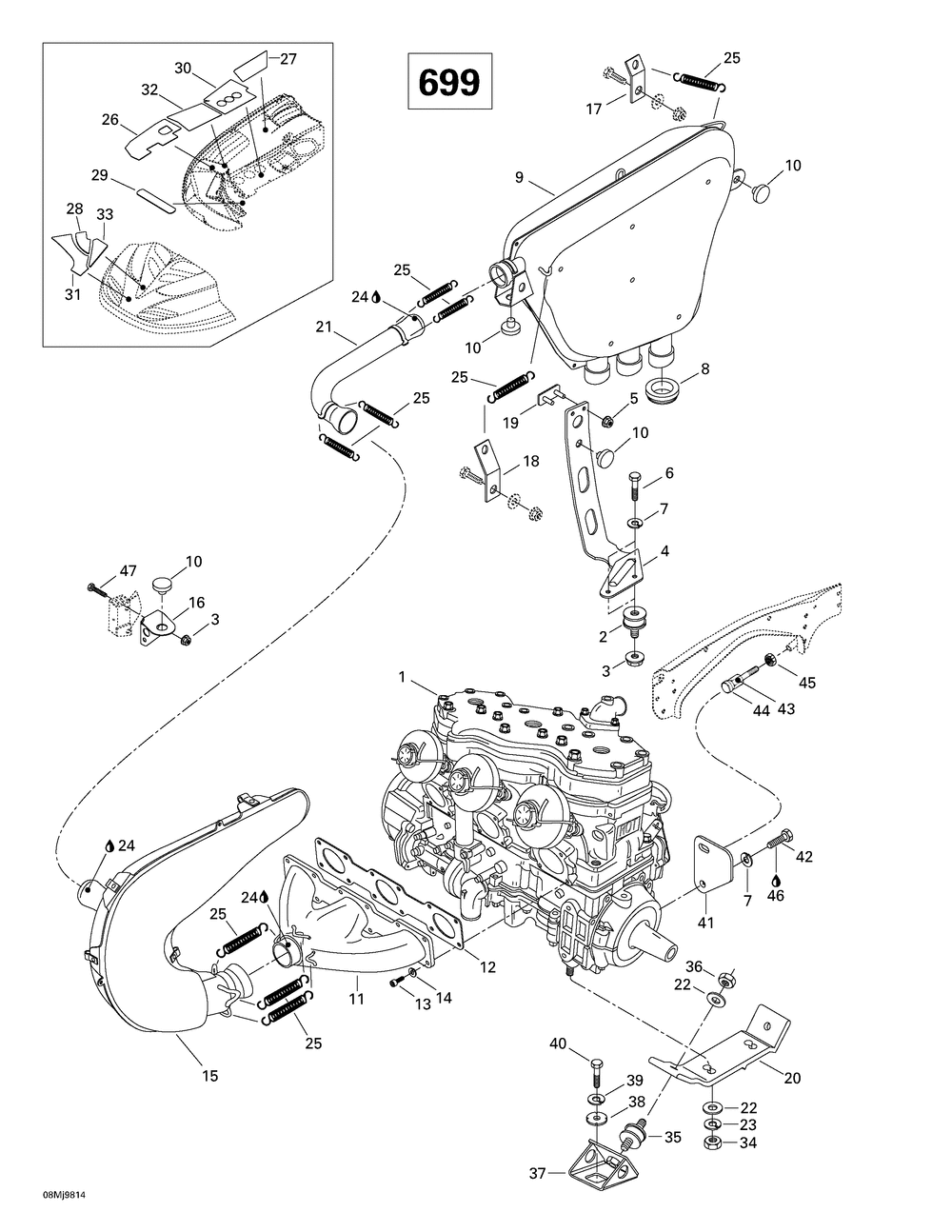

01- Engine Support And Muffler (699)

Корзина пуста
SKI-DOO Formula III 600 LT Formula III 600 LT 01- Engine Support And Muffler (699)
01- Engine Support And Muffler (699)
№ Наименование Примечание Кол-во
2 TAMPON ANCRAGE *MOUNT-RUBBER Formula 500. Formula 500 Deluxe. 2
3 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 3
5 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 2
7 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 3
10 RUBBER BUMPER SUV 550 (2.000 per pack) 4
12 JOINT *GASKET GT 700. 1
13 SOCKET HEAD SCREW M6 X 25 GT SE. GT SE Millennium Edition. (10.000 per pack) 12
14 WASHER-LOCK BLACK DIN.127B (10.000 per pack) 12
18 SPRING BRACKET 1
22 FLAT WASHER 10 MM (10.000 per pack) 8
23 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 4
24 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
25 Spring 9
34 HEX. NUT M10 (10.000 per pack) 4
35 RUBBER MOUNT 4
36 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 4
37 ENGINE SUPPORT 4
38 RONDELLE-FREIN *WASHER-LOCK (5.000 per pack) 4
40 HEX. SCREW M10 X 25 (10.000 per pack) 4
41 PLAQUE BUTEE *PLATE STOPPER 1
42 HEX. SCREW M8 X 16 (10.000 per pack) 1
43 VIS DE BUTEE *SCREW-STOPPER 1
44 BUTEE *STOPPER 1
45 HEX. NUT M12 (10.000 per pack) 1
46 LOCTITE 271 10 ML 0
47 HEX. SCREW M8 X 50 (10.000 per pack) 1
