SKI-DOO Formula III 600 LT Formula III 600 LT 08- Rear Arm Rear Suspension (136

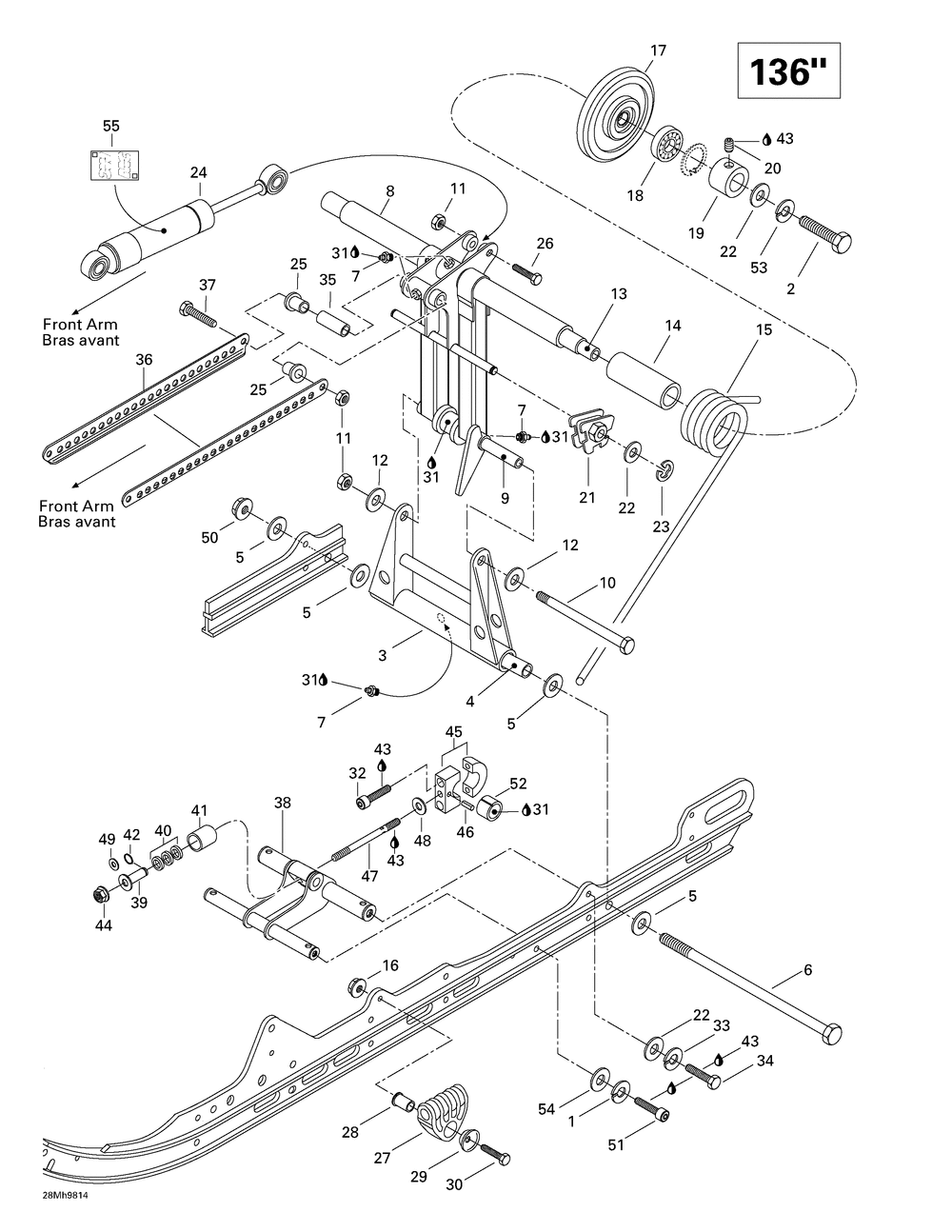

08- Rear Arm Rear Suspension (136
№ Наименование Примечание Кол-во
RH ADJUST CAM 1
1 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 2
2 HEX. SCREW M10 X 35 Formula Deluxe 500. (10.000 per pack) 2
3 PIVOT ARM 1
5 FLAT WASHER (10.000 per pack) 4
6 BOLT M8 X 248MM 1
7 GREASE FITTING (10.000 per pack) 4
9 UPPER AXLE PIVOT ARM 1
10 BOLT M8 SHORT 1
11 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 3
12 FLAT WASHER 8 MM (10.000 per pack) 2
13 AXE TRANSV.ARR.*SHAFT-CROSS RR 1
14 BUSHING 2
16 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 2
18 BALL BEARING 2
19 RETAINING RING 2
20 SOCKET SET SCREW M6 X 8 (5.000 per pack) 2
21 LH ADJUST CAM 1
22 FLAT WASHER 10 MM (10.000 per pack) 6
26 HEX. SCREW M8 X 50 (10.000 per pack) 1
27 SPRING SUPPORT Formula Z 583. Formula 583 Deluxe. 2
28 AXE GUIDE RESS.*AXLE-GUIDE SPRING Formula Z 583. Formula 583 Deluxe. 2
30 HEX. CAP SCREW M6 X 50 Mach Z LT R. (10.000 per pack) 2
32 SOCKET HEAD SCREW M8 X 30 (10.000 per pack) 2
34 HEX. SCREW M10 X 30 (10.000 per pack) 2
37 HEX. SCREW M8 X 90 (5.000 per pack) 1
40 BUTEE CAOUT. *STOPPER-RUBBER (5.000 per pack) 3
43 LOCTITE 271 10 ML 0
44 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 1
49 RONDELLE *WASHER (5.000 per pack) 1
50 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 1
51 SOCKET SCREW M10 X 35 (10.000 per pack) 2
52 COUSSINET *CUSHION 1
53 HELICOIDAL LOCK WASHER M10 (5.000 per pack) 2
