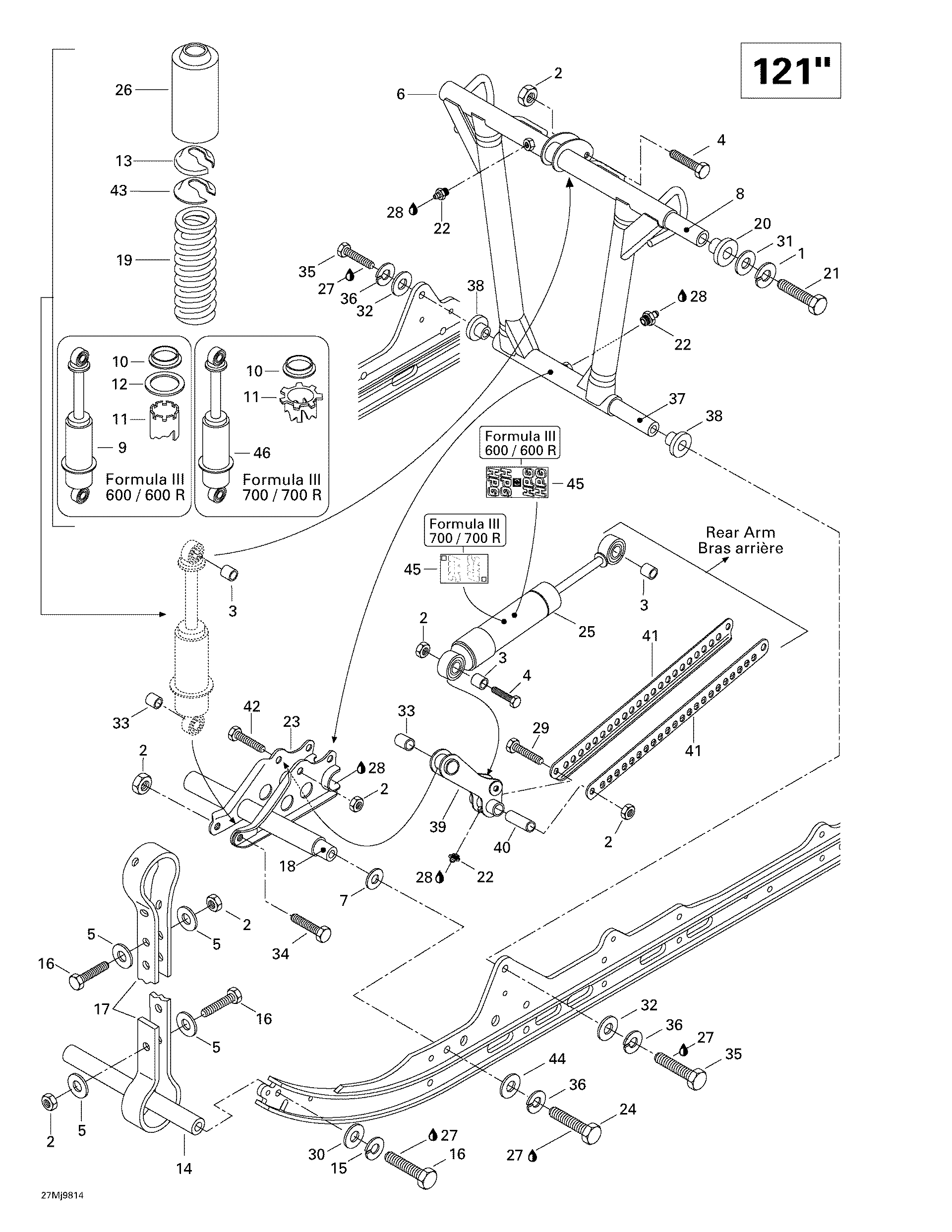

SKI-DOO Formula III 600 LT Formula III 600 LT 08- Front Arm Rear Suspension (121??)
08- Front Arm Rear Suspension (121??)
№ Наименование Примечание Кол-во
SPRING GUIDE 1
SHOCK 1
DECAL-SHOCK 1
1 HELICOIDAL LOCK WASHER M10 (5.000 per pack) 2
2 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 9
3 CUSHION Model-LE & SE (2.000 per pack) 3
4 HEX. SCREW M8 X 40 (10.000 per pack) 2
5 RONDELLE *WASHER (10.000 per pack) 8
6 ARM-FRONT 1
7 WASHER-HARD 2
8 ARBRE *SHAFT Formula Z 583. Formula 583 Deluxe. 1
9 ADJUSTMENT CAM 1
10 GUIDE-SPRING 1
11 CAM 1
12 WASHER-THRUST 1
13 SPRING STOPPER 1
14 AXE *AXLE 1
15 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 2
16 HEX. SCREW M8 X 30 (10.000 per pack) 6
18 SHAFT 1
19 SPRING 1
20 CUSHION Formula Z 583. Formula 583 Deluxe. (2.000 per pack) 2
21 HEX. SCREW M10 X 60 (5.000 per pack) 2
22 GREASE FITTING (10.000 per pack) 3
23 SUPP.-SHOCK 1
24 HEX. SCREW M12 X 35 (10.000 per pack) 2
25 AMORTISSEUR *SHOCK Formula III 600. 1
26 PROTECTOR Formula Z 583. Formula 583 Deluxe. 1
27 LOCTITE 271 10 ML 0
28 GREASE LITH. 0
29 HEX. SCREW M8 X 75 (10.000 per pack) 1
30 FLAT WASHER 8 MM (10.000 per pack) 2
31 FLAT WASHER 10 MM (10.000 per pack) 2
32 FLAT WASHER 12 MM (10.000 per pack) 2
33 CUSHION 2
34 HEX. SCREW M8 X 55 (10.000 per pack) 1
35 HEX. SCREW M12 X 60 (10.000 per pack) 2
36 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 4
37 HEX. SCREW M12 X 60 SCOTCH GRIP (5.000 per pack) 1
38 COUSSINET *CUSHION Formula Z 583. Formula 583 Deluxe. 2
39 LEVER 1
40 SHAFT-TIE ROD 1
41 ROD-TIE 2
42 HEX. SCREW M8 X 50 (10.000 per pack) 1
43 CAP 1
45 DECAL-H.P.G. 1
46 SHOCK 1
47 DOUILLE *BUSHING 0
48 DOUILLE *SLEEVE 0
