SKI-DOO Grand Touring LE 1200 XR137 Grand Touring LE 1200 XR137 09- Hood LE_38M1522

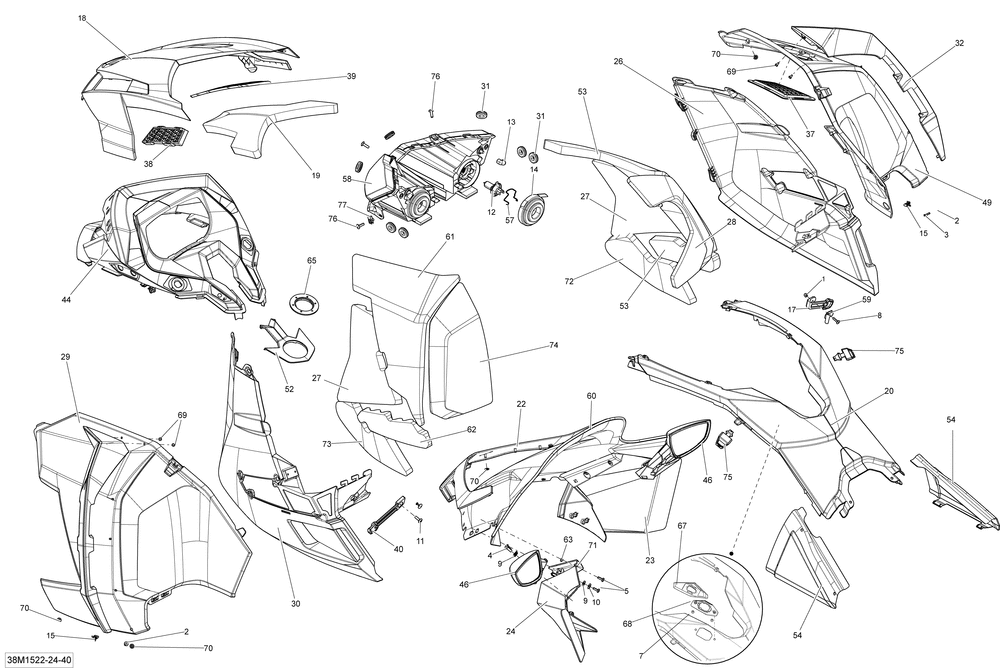

09- Hood LE_38M1522
№ Наименование Примечание Кол-во
1 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
2 Flat Washer 4 mm Stainless 0
3 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 2
4 TORX SCREW M6 X 16 (12.000 per pack) 4
5 Torx Screw K50 X 16 0
8 TORX SCREW M5 X 20 (6.000 per pack) 1
9 Rubber Washer 5 mm 8
10 WASHER M5 (10.000 per pack) 2
11 Torx Truss Screw M6 X 20 1
12 Halogen Bulb, 60/55 W, 12 V ( H4 ) 2
13 CAP 4
14 COVER 2
15 Edge Clip 2
17 RH PANEL LATCH 1
18 BLACK HOOD (Model-Black-Black ) 1
18 HOOD (Model-Platinium-Platinium ) 1
19 HOOD FOAM 1
20 BLACK CONSOLE 1
20 PLATINUM CONSOLE (Model-Platinium-Platinium ) 1
22 WINDSHIELD SUPPORT KIT 1
23 RH CONSOLE AIR DEFLECTOR 1
24 LH CONSOLE AIR DEFLECTOR 1
26 BLACK RH PANNEL MOULDING 1
27 CENTRAL FOAM PANEL RH 1
27 LH CENTRAL PANEL FOAM 1
28 REAR PANEL FOAM RH 1
29 PLATINIUM LH PANEL (Model-Platinium-Platinium ) 1
29 BLACK LH PANNEL (Model-Black-Black ) 1
30 BLACK LH PANNEL MOULDING 1
31 RONDELLE *GROMMET 7
32 DEFLECTEUR AIR *AIR DEFLECTOR (Model-Platinium-Platinium ) 1
32 DEFLECTEUR AIR *AIR DEFLECTOR 1
32 DEFLECTEUR AIR *AIR DEFLECTOR (Model-Black-Black ) 1
37 PANEL GRILL 1
38 LH HOOD GRILL 1
39 RH HOOD GRILL 1
40 LH PANEL LATCH 1
44 INDICATOR SUPPORT 1
46 RH MIRROR ASS Y 1
46 LH MIRROR ASS Y 1
49 BLACK RH PANNEL 1
49 PLATINIUM RH PANNEL 1
52 DEEP BLACK CAP CONSOLE 1
53 RH UPPER PANEL FOAM 1
54 DEEP BLACK RH FUEL TANK MOULDING (Model-Black-Black ) 1
54 DEEP BLACK LH FUEL TANK MOULDING (Model-Black-Black ) 1
54 PLATINIUM RH FUEL TANK MOULDING (Model-Platinium-Platinium ) 1
54 PLATINIUM LH FUEL TANK MOULDING (Model-Platinium-Platinium ) 1
57 RH HEADLAMP ASS Y Includes 31 To 35 1
58 LH HEADLAMP ASS Y Includes 31 To 35 1
59 LATCH SUPPORT 1
60 PARE-BRISE 620 *WINDSHIELD 620 1
61 LH UPPER PANEL FOAM 1
62 CENTRAL FOAM PANEL LH 1
63 RUBBER WASHER 5 MM 2
65 CONSOLE NUT 1
69 HEX. FLANGED SCREW tahos_8 X 3/8 (5.000 per pack) 0
70 Push Nut 0
71 FLAT WASHER (10.000 per pack) 2
72 RH LOWER PANEL FOAM 1
73 LH LOWER PANEL FOAM 1
74 LH REAR PANEL FOAM 1
75 PANEL LATCH 2
77 Panel Nut M6 X 1.0 6
