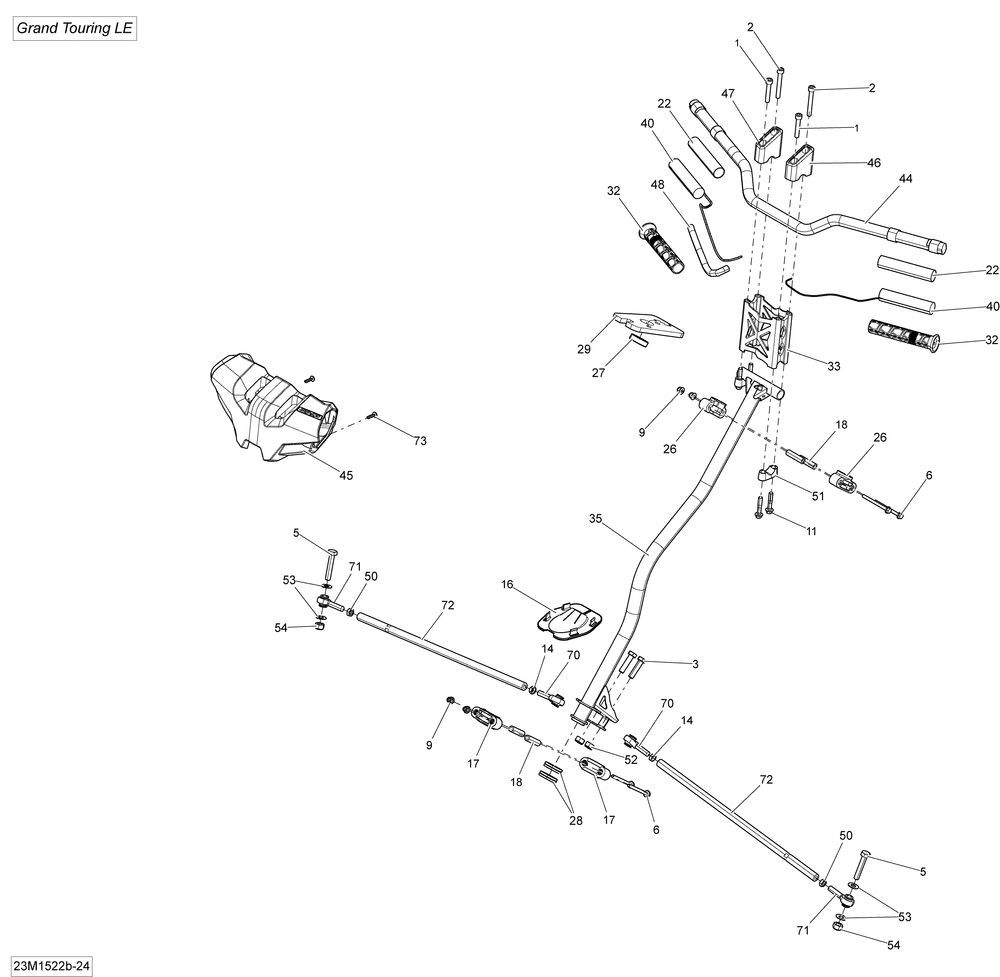

07- Steering LE

07- Steering LE_23M1522b

№	Наименование	Кол-во
1	SOCKET HEAD SCREW M8 X 45 (5.000 per pack)	2
2	SOCKET HEAD SCREW M8 X 60 (2.000 per pack)	2
3	HEX. SCREW M10 X 40	2
5	HEX SCREW M10 X 55	2
6	HEX. FLANGED SCREW M6 X 70	4
9	Elastic Flanged Nut M6 X 1.0	4
11	HEX. FLANGE SCREW M8 X 40 (3.000 per pack)	4
14	LH HEX. JAM NUT M10 (10.000 per pack)	2
16	PLAQUE *PLATE	1
17	LOWER HALF-HOUSING	2
18	HOUSING BUSHING	4
22	ISOLANT *ISOLANT	2
26	UPPER HALF-HOUSING	2
27	UPPER ANTI-VIBRATION GASKET	1
28	LOWER VIBRATION RING	2
29	COUSSINET *CUSHION	1
32	GRIP	2
33	HANDLEBAR EXTENSION 115	1
35	BLACK MAIN TUBE	1
40	ELEMENT CHAUFF.*HEATED FILM	2
44	GUIDON *HANDLE BAR	1
45	STEERING PAD	1
46	LH HANDLEBAR SUPPORT	1
47	RH HANDLEBAR SUPPORT	1
48	LOW TEMPERATURE TUBING 1/2tahos_ (3.000 per pack)	1
50	RH Hex. Jam Nut M10	2
51	STEERING SUPPORT	2
52	Elastic Locking Nut M10	2
53	Washer	2
54	Hex. Elast. Flanged Nut M10	2
70	LH BALL JOINT	2
71	RH BALL JOINT	2
72	TIE-ROD Except Back Country Back Country X	2
73	TORX SCREW K50 X 20 (2.000 per pack)	2
