SKI-DOO Grand Touring SE 1200 XR137 Grand Touring SE 1200 XR137 09- Frame SE_30M1522

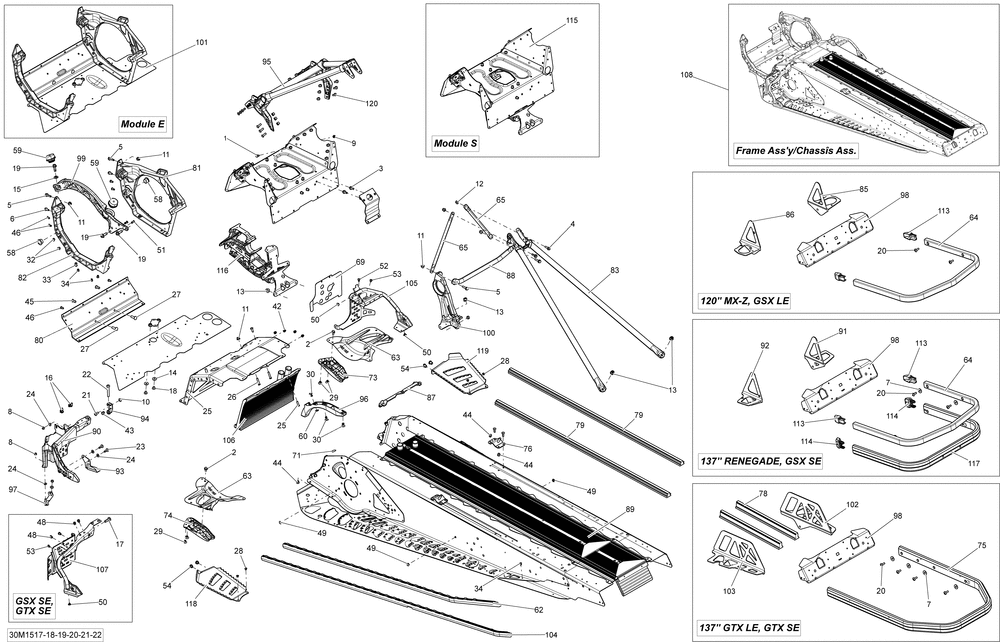

09- Frame SE_30M1522
№ Наименование Примечание Кол-во
1 HEX. SCREW M6 X 14 (10.000 per pack) 1
2 Hex. Flanged Screw M6 X 12, Scotch Grip 2
3 Hex. Flanged Screw M6 X 16 2
4 Hex. Flanged Screw M6 X 20 6
5 Hex. Flanged Screw M6 X 25 4
6 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
7 FLAT WASHER (10.000 per pack) 8
8 Elastic Stop Nut M6 3
9 Hex. Elastic Stop Nut M6 1
10 Hex. Flanged Nut M6 1
11 Hex. Flanged Elastic Nut M6 5
12 Elastic Flanged Nut M6 X 1.0 2
13 Hex. Flanged Elastic Nut M8 5
14 Flat Washer 6 mm 2
15 CONICAL SPRING WASHER M8 (10.000 per pack) 1
16 PANEL NUT M5 X 0.8 (10.000 per pack) 2
17 TORX SCREW M8 X 25 SCOTCH GRIP 1
18 TORX TRUSS SCREW M6 X 10 2
19 HEX. FLANGED SCREW M8 X 25 NYLON (5.000 per pack) 3
20 TORX-TRUSS SCREW M6 X 18 (5.000 per pack) 8
21 Tork Screw M6 X 16 1
22 TORX SCREW M8 X 55 1
23 TORK SCREW M6 X 18 2
24 FLAT WASHER (10.000 per pack) 5
25 CLINCH STUD M6 X 20 0
26 CLINCH STUD M6 X 30 Eingine 600 H.O. E-TEC (2-Strokes) (4.000 per pack) 2
27 CLINCH STUD 2
28 Rivet 3/16" 4
29 Pop Rivet 3/16" 4
30 POP RIVET 3/16tahos_ (25.000 per pack) 3
32 HEMLOCK RIVET 6.5 MM (5.000 per pack) 6
33 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
34 STAVEX RIVET (20.000 per pack) 0
42 HENROB RIVET (10.000 per pack) 12
43 HEMLOCK RIVET (10.000 per pack) 1
44 HEMLOCK RIVET 6.4 MM (10.000 per pack) 5
45 MONOBOLT RIVET 6.4 (2.000 per pack) 2
46 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
48 INSERT 4
49 BLACK DART 8 MM 3
50 FULL MOON DART 5 MM 0
51 POP RIVET 3/16tahos_ (50.000 per pack) 2
52 AVEX RIVET (50.000 per pack) 5
53 AVEX RIVET (50.000 per pack) 0
54 Insert 1
58 BUSHING 2
59 RUBBER MOUNT 2
60 RONDELLE *WASHER (10.000 per pack) 1
63 RENFORT DR *REINFORCEMENT 1
63 RENFORT GA *REINFORCEMENT 1
64 BLACK REAR BUMPER 1
65 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
66 MAG ENGINE SUPPORT Model-1200 4-TEC 1
69 HEAT SHIELD 1
71 ADHESIVE PATCH 1
73 RH DEFLECTOR 1
74 LH DEFLECTOR 1
75 REAR BUMPER Package SE 1
76 RH REAR BASE 1
76 LH REAR BASE 1
78 PROT. CHASSIS *TUNNEL PROT. 2
80 FRONT MEMBER 1
81 RH SIDE MEMBER 1
82 LH SIDE MEMBER 1
83 REAR MEMBER 1
87 JOINT *SEAL 1
88 CENTER COLUMN SUPPORT Model-1200 4-TEC 1
89 REAR RADIATOR ASS Y 1
90 ETRIER GA. *LH.STIRUP 1
93 SUPPORT 1
94 U-ATTACH 1
95 FRONT MEMBER Model-1200 4-TEC 1
96 FRONT PROTECTOR 1
97 ATTACHE *ATTACH 1
98 REAR CAP 1
99 BRACE ASS Y Includes 53 To 54 Model-1200 4-TEC 1
100 PULLEY SUPPORT 1
101 E MODULE 1
102 RH SUSPENSION BRACKET 1
103 LH SUSPENSION BRACKET 1
104 RH ROLLER 1
104 LH ROLLER 1
105 ETRIER DROIT *RH.STIRUP 1
106 FRONT RADIATOR ASS Y 1
107 ETRIER GA *LH.STIRUP 1
108 FRAME ASS Y 1
115 MODULE S *CROSS MEMBER 1
116 FRONT SUSPENSION SUPPORT 1
118 LH FOOTREST 1
119 RH FOOTREST 1
