SKI-DOO Grand Touring Sport 550F XP137 Grand Touring Sport 550F XP137 07- Front Suspension And Ski _24M1527

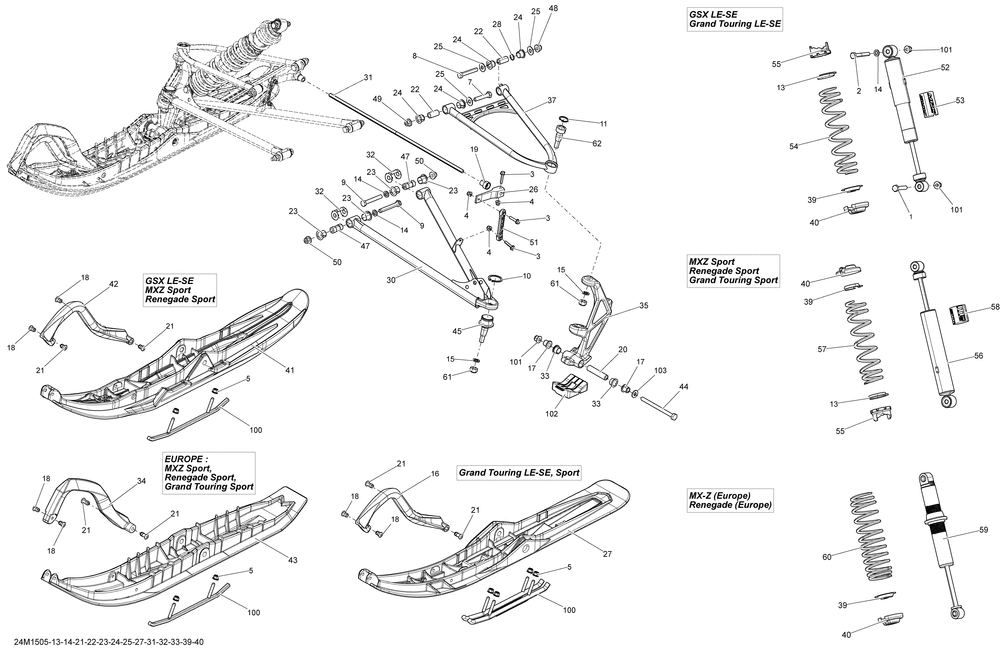

07- Front Suspension And Ski _24M1527
№ Наименование Примечание Кол-во
1 HEX SCREW M10 X 55 2
2 HEX. SCREW M10 X 65 (5.000 per pack) 2
3 HEX FLANGED SCREW M6 X 30 6
4 Hex. Flanged Elastic Nut M6 6
5 Hex. Flanged Elastic Nut M8 4
7 SCREW HEX. M10 X 50 (4.000 per pack) 2
8 SCREW HEX. M10 X 60 (5.000 per pack) 2
9 SCREW HEX. M10 X 70 4
10 Circlip 2
11 CIRCLIP (2.000 per pack) 2
13 Spring Guide 1
14 RONDELLE *WASHER (10.000 per pack) 6
15 RONDELLE *WASHER (5.000 per pack) 4
17 CUSHION 2
18 RETAINER (16.000 per pack) 2
19 COUSSINET *BUSHING 2
20 SPACER (2.000 per pack) 2
21 RETAINER 2
22 BUSHING 4
23 COUSSINET *BUSHING 8
24 COUSSINET *BUSHING 8
25 RONDELLE *WASHER (5.000 per pack) 6
26 STABILISATOR LEVER 2
27 PILOT SKI SL ASS Y 1
28 O-RING 2
30 BLACK RH LOWER ARM Package-Sport 1
30 BLACK LH LOWER ARM Package-Sport 1
31 STABILISATEUR *STABILISATOR 1
32 WEAR PLATE 4
33 BUSHING 4
35 CLEAR LH SKI LEG Package-Sport 1
35 CLEAR RH SKI LEG Package-Sport 1
37 BLACK LH UPPER ARM 42" Package-Sport 1
37 BLACK RH UPPER ARM 42" Package-Sport 1
40 Spring Stopper 1
42 BLACK HANDLE Model N 1
44 HEX. SCREW M10 X 130 2
45 LOWER BALL JOINT 2
47 BUSHING 4
48 Hex. Flanged Elastic Nut M10 2
51 Sway Bar Double Joint Link 2
55 ADJUSTEMENT CAM 1
56 FRONT SHOCK Package-Sport North America 1
57 FULL MOON SPRING 1
58 SHOCK DECAL MC Package-Sport North America 1
61 Hex Elastic Nut M12 X 1.25 4
62 UPPER BALL JOINT 2
100 ROUND CARBIDE RUNNER 2
101 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 6
102 SKI STOPPER 2
103 Washer 2
