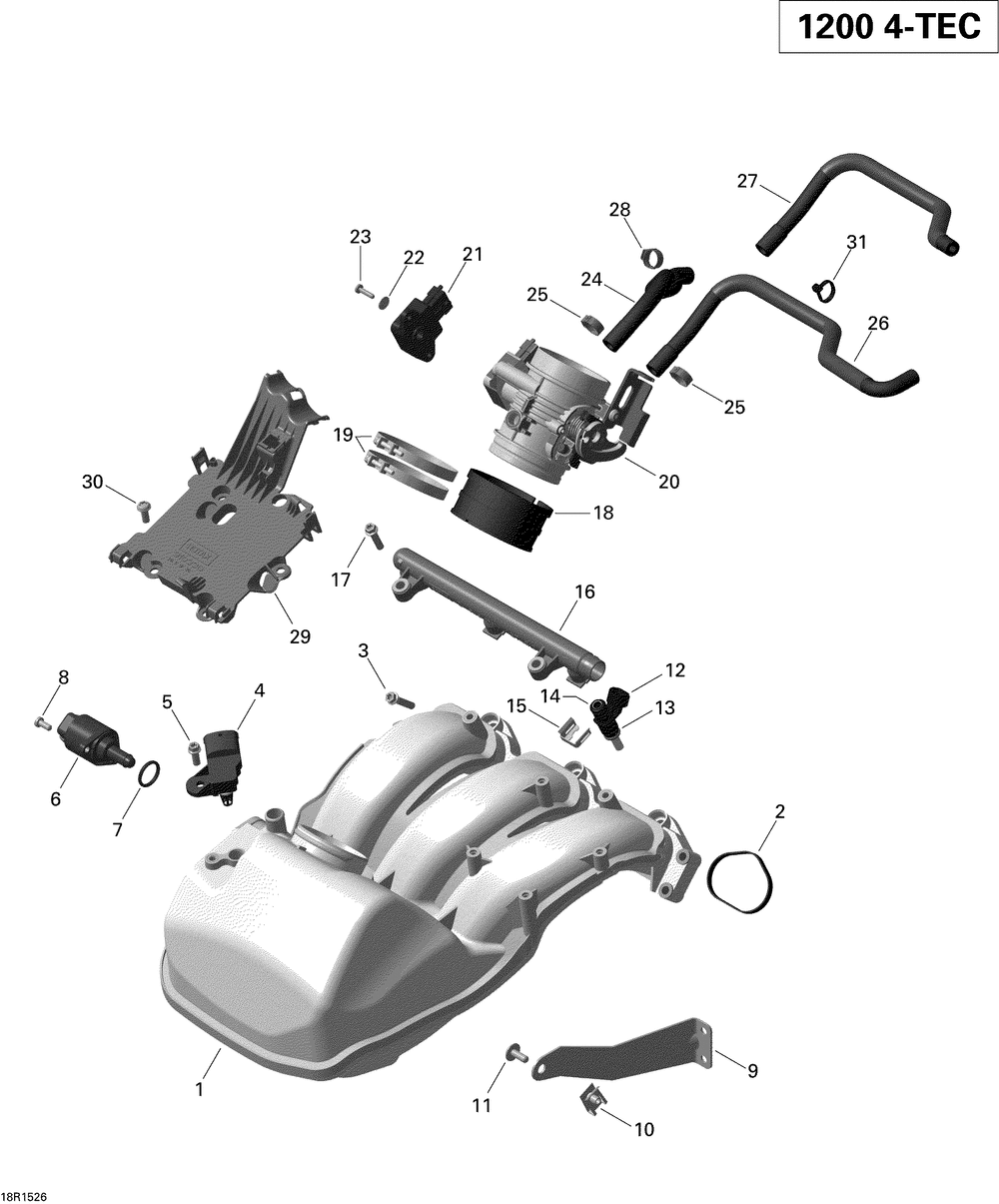

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | AIR INTAKE MANIFOLD Includes 1 To 2 | 1 | |
| 2 | JOINT ETANCHE *GASKET | 3 | |
| 3 | Flanged Torx Screw M6 X 30 | 6 | |
| 4 | Pressure And Temperature Sensor | 1 | |
| 5 | Flanged Torx Screw M6 X 16 | 1 | |
| 6 | IDLE BYPASS VALVE | 1 | |
| 7 | O-RING | 1 | |
| 8 | TORX SCREW M5 X 12 | 2 | |
| 9 | SUPPORT | 1 | |
| 10 | PANEL NUT M6 X 1 | 1 | |
| 11 | TORX SCREW M6 X 16 | 1 | |
| 12 | INJECTION VALVE ASS Y Includes 12 To 14 | 3 | |
| 13 | O-Ring | 3 | |
| 14 | O-Ring | 3 | |
| 15 | Clip | 3 | |
| 16 | FUEL RAIL | 1 | |
| 17 | Flanged Torx Screw M6 X 25 | 2 | |
| 18 | FLANGE *INTAKE NECK | 1 | |
| 19 | CLAMP | 2 | |
| 20 | THROTTLE BODY SOCKET ASS Y Includes 20 To 23 | 1 | |
| 21 | POSITION SENSOR | 1 | |
| 22 | Flat Washer 4 mm Stainless | 2 | |
| 23 | PHILLIPS SCREW M4 X 16 (10.000 per pack) | 2 | |
| 24 | BOYAU FORME*MOLDED HOSE | 1 | |
| 25 | Oetiker Clamp | 2 | |
| 26 | BOYAU FORME*MOLDED HOSE | 1 | |
| 28 | CLAMP | 1 | |
| 29 | BASE PLATE | 1 | |
| 30 | FLANGED TORX SCREW M6 X 16 | 4 | |
| 31 | TIE RAP | 1 |
