SKI-DOO Expedition LE 600 E-TEC Expedition LE 600 E-TEC 01- Engine _11M1553

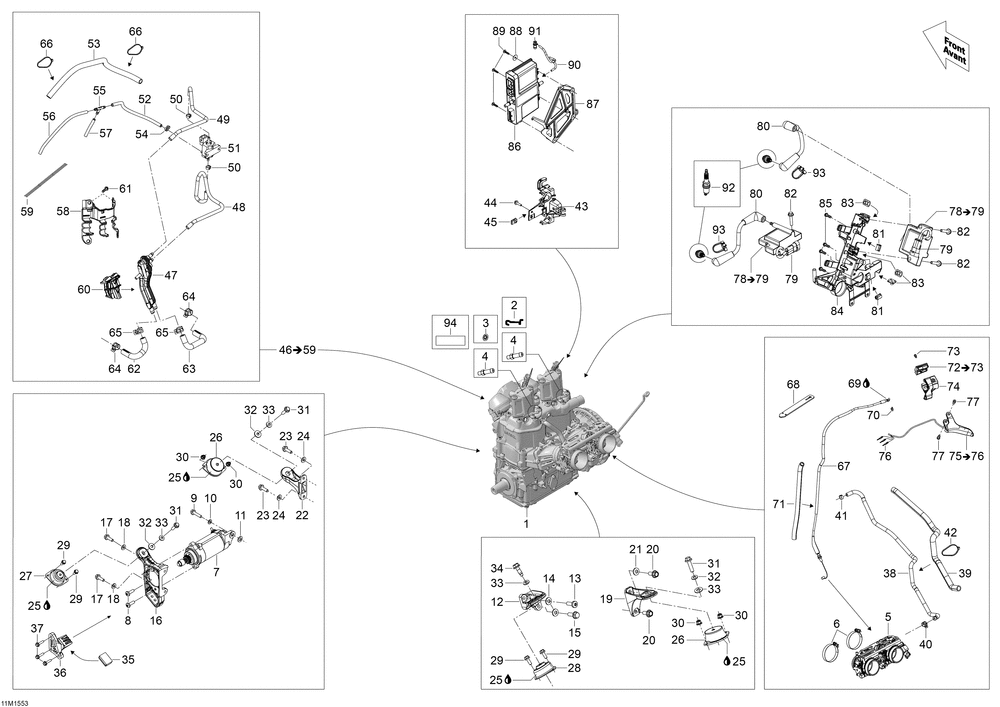

01- Engine _11M1553
№ Наименование Примечание Кол-во
2 VERROU *LOCK 1
3 Push Nut 2
4 HOSE NIPPLE 2
5 THROTTLE BODY 1
6 GEMI CLAMP 2
7 STARTER 1
8 TORX SCREW M8 X 25 SCOTCH GRIP 2
9 HEX FLANGED SCREW M8 X 35 SCOTCH GRIP 1
10 FLAT WASHER WITH TEFLON 8 MM (5.000 per pack) 1
11 RONDELLE *WASHER 1
12 REAR SUPPORT PTO 1
14 CONICAL SPRING WASHER M8 (10.000 per pack) 2
15 HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP 1
16 SUPPORT *SUPPORT 1
19 REAR SUPPORT MAG 1
20 Hex. Flanged Screw M8 X 20, Scotch Grip 2
22 SUPPORT MOTEUR *ENGINE SUPPORT 1
26 RUBBER MOUNT 2
27 RUBBER MOUNT 1
28 Rubber Mount 1
29 Hex. Flanged Screw M6 X 16, Scotch Grip 4
30 Hex. Flanged Elastic Nut M6 4
31 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 3
32 Washer Yellow 3
34 HEX. SCREW M8 1
35 STOPPER 1
36 STOPPER SUPPORT 1
37 HEX. FLANGED SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 3
38 FORMED HOSE OUTPUT TB 1
39 Tubing 16 mm 1
40 Tridon Gear Clamp 1
41 Crimp Clamp 1
42 Tie-Rap 350 mm 1
43 SOLENOID SUPPORT 1
44 FLANGED HEX. SCREW M5 X 20 1
45 PANEL NUT M5 X 0.8 (10.000 per pack) 1
47 MANIFOLD 1
48 Hose, Polyurethane 1
50 OETIKER CLAMP 2
51 SOLENOID VALVE 1
52 BOYAU 4.3MM *HOSE-4.3MM (15.000 per pack) 1
53 Tubing 9 mm (10.000 per pack) 1
54 Tie-Rap 94 mm 1
55 T-FITTING (10.000 per pack) 1
58 HOSE SUPPORT 1
59 SPRING 1
60 MANIFOLD SUPPORT 1
61 HEX. FLANGED SCREW M5 X 11 (10.000 per pack) 2
62 LH FORMED HOSE 1
63 RH FORMED HOSE 1
64 NORMA SPRING CLAMP 2
67 THROTTLE CABLE 1
68 RUBBER STRAP 1
70 CIRCLIP (10.000 per pack) 1
72 UPPER HOUSING 1
73 SOCKET SET SCREW M8 X 10 (5.000 per pack) 1
74 LOWER HOUSING 1
75 MANETTE ASS. *HANDLE-ASSY 1
76 MALE TERMINAL (10.000 per pack) 3
77 FLANGED SCREW (10.000 per pack) 2
78 IGNITION COIL 2
79 Housing 2
80 IGNITION CABLE 177 MM 2
81 CLIP 2
82 FLANGED HEX. SCREW M6 X 30 (5.000 per pack) 3
83 NUT M6 (6.000 per pack) 3
84 SUPPORT 1
85 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 4
86 CALIBRATED MODULE 1
87 CALIBRATED MODULE SUPPORT 1
88 FLAT WASHER (3.000 per pack) 1
89 TRUSS HEAD TORX SCREW K50 X 20 3
90 BOYAU AMORCE *LINE-PRIMER (30.000 per pack) 1
91 MALE CONNECTOR (5.000 per pack) 1
92 SPARK PLUG (10.000 per pack) 2
93 CLAMP 2
