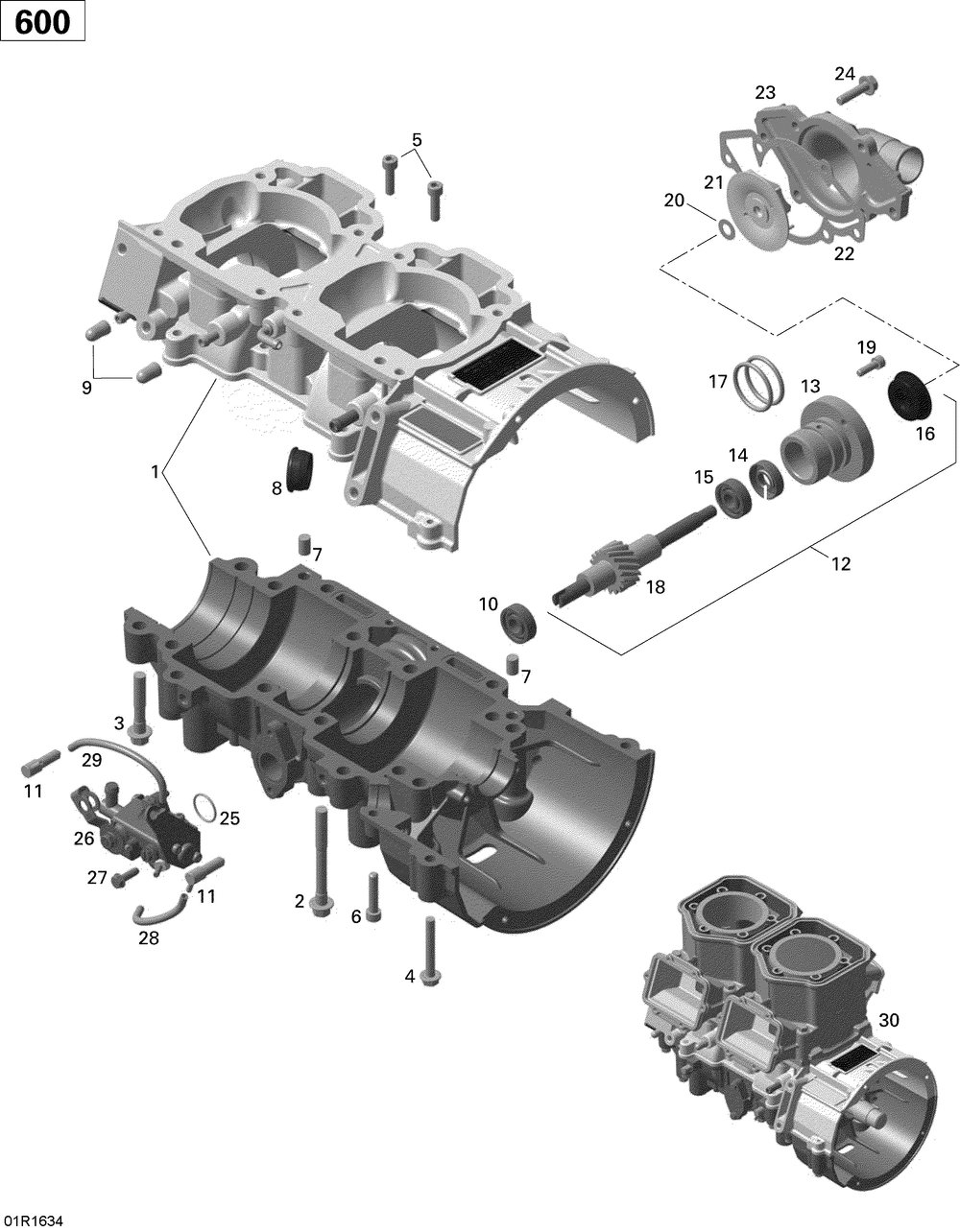

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE ASS Y Includes 1 to 11 | 1 | |
| 2 | HEX. COLLAR SCREW M8 X 75 | 10 | |
| 3 | HEX. COLLAR SCREW M8 X 45 | 6 | |
| 4 | HEX. COLLAR SCREW M6 X 45 (5.000 per pack) | 2 | |
| 5 | SOCKET HEAD SCREW M6 X 22 (10.000 per pack) | 2 | |
| 6 | Socket Head Screw M6 X 30 | 1 | |
| 7 | Center Pin 8 X 12 | 2 | |
| 8 | CABLE GROMMET | 1 | |
| 9 | Cap | 2 | |
| 10 | BALL BEARING | 1 | |
| 11 | CHECK VALVE | 2 | |
| 12 | WATER PUMP/OIL PUMP ASS Y Includes 14 to 20 | 1 | |
| 14 | OIL SEAL | 1 | |
| 16 | ROTARY SEAL | 1 | |
| 17 | O-RING | 2 | |
| 19 | SOCKET HEAD SCREW M5 X 16 | 2 | |
| 20 | RONDELLE *WASHER | 1 | |
| 21 | WATER IMPELLER | 1 | |
| 22 | JOINT *GASKET | 1 | |
| 23 | WATER PUMP HOUSING | 1 | |
| 24 | HEX. SCREW M6 X 25 | 6 | |
| 25 | O-RING (10.000 per pack) | 1 | |
| 26 | OIL PUMP ASS Y | 1 | |
| 27 | TAPPING SCREW M5 X 16 (10.000 per pack) | 2 | |
| 28 | OIL HOSE (5.000 per pack) | 1 | |
| 30 | SHORT BLOCK 593 | 1 |
