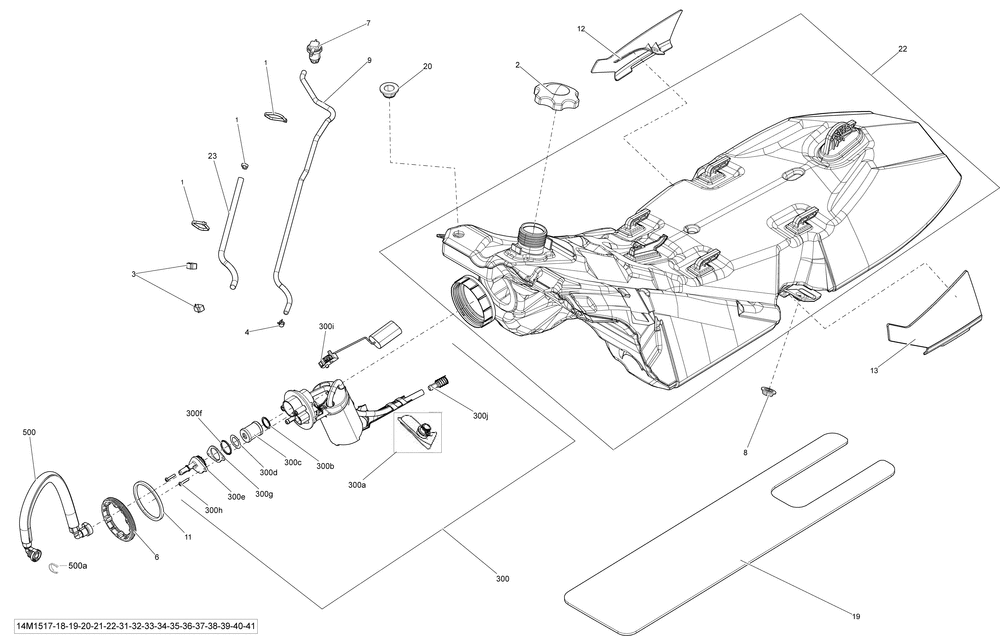

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Tie-Rap 180 mm | 3 | |
| 2 | FUEL TANK CAP Model-North America | 1 | |
| 4 | Spring Clamp | 1 | |
| 6 | RING | 1 | |
| 7 | CHECK VALVE | 1 | |
| 8 | SHOULDER BUSHING | 2 | |
| 9 | Hose, Polyurethane | 1 | |
| 11 | GASKET | 1 | |
| 12 | CAPUCHON DROIT *R.H. CAP | 1 | |
| 13 | CAPUCHON GAU. *L.H. CAP BOM | 1 | |
| 19 | INSULATING FOAM | 1 | |
| 20 | GROMMET | 1 | |
| 22 | FUEL TANK | 1 | |
| 23 | PROTECTOR TUBE | 1 | |
| 300 | FUEL PUMP ASS Y | 1 | |
| 300a | FUEL FILTER | 1 | |
| 300b | O-RING | 1 | |
| 300c | FUEL FILTER | 1 | |
| 300d | RONDELLE*WAVE WASHER | 1 | |
| 300e | COVER | 1 | |
| 300f | O-RING | 1 | |
| 300g | FUEL PUMP RING | 1 | |
| 300h | VIS*SCREW | 1 | |
| 300i | FUEL LEVEL SENSOR | 1 | |
| 300j | FUEL FILTER | 1 | |
| 500 | BOYAU ASSEMBLEE*HOSE ASS`Y Includes 24 To 25 Model-1200 4-TEC | 1 | |
| 500a | LOCKING CLIP (2.000 per pack) | 1 |
