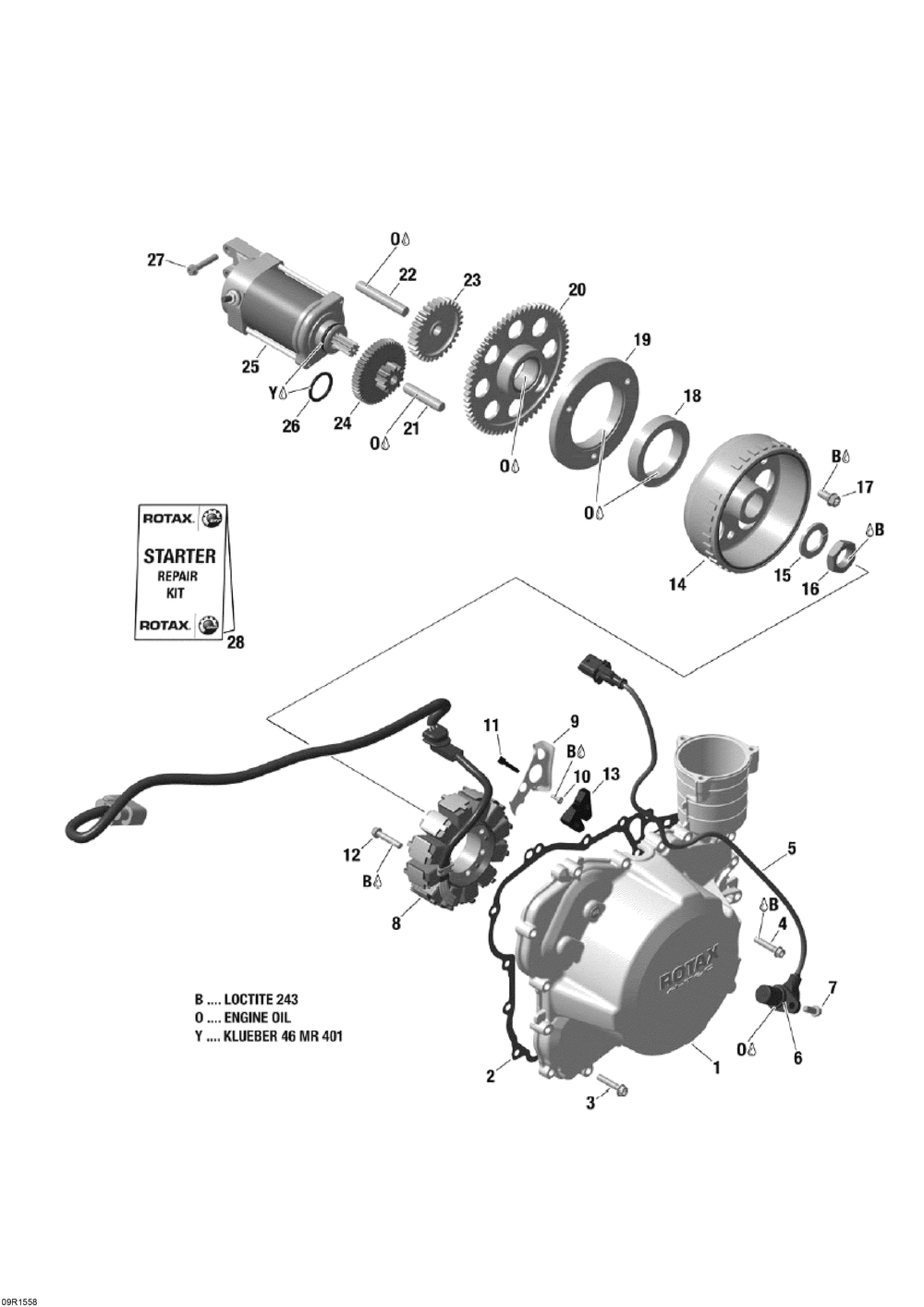

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | COUVERCLE *IGNITION COVER | 1 | |
| 2 | JOINT ETANCHE *GASKET | 1 | |
| 3 | Flanged Torx Screw M6 X 30 | 16 | |
| 5 | Crankshaft Position Sensor Ass'y | 1 | |
| 6 | O-Ring | 1 | |
| 7 | Flanged Torx Screw M6 X 16 | 1 | |
| 8 | STATOR ASS Y Includes 8 To 11 | 1 | |
| 9 | CABLE HOLDER | 1 | |
| 10 | TORX SCREW 3.5 X 8 | 2 | |
| 11 | CLAMP | 1 | |
| 12 | FLANGED TORX SCREW M6 X 30 | 3 | |
| 13 | SPACER | 1 | |
| 14 | MAGNETO FLYWHEEL | 1 | |
| 15 | RONDELLE-FREIN *WASHER-LOCK 22 (10.000 per pack) | 1 | |
| 16 | HEX. NUT M22 X 1.5 | 1 | |
| 17 | Flanged Torx Screw M8 X 16 | 3 | |
| 18 | SPRAG CLUTCH | 1 | |
| 19 | HOUSING SPRAG CLUTCH | 1 | |
| 20 | FREE WHEEL GEAR 64 TEETH | 1 | |
| 21 | Location Pin | 1 | |
| 22 | Needle Pin | 1 | |
| 23 | GEAR 30 TEETH | 1 | |
| 24 | Double Gear | 1 | |
| 25 | STARTER ASS Y | 1 | |
| 26 | O-Ring | 1 | |
| 28 | CARBON BRUSH SET | 1 |
