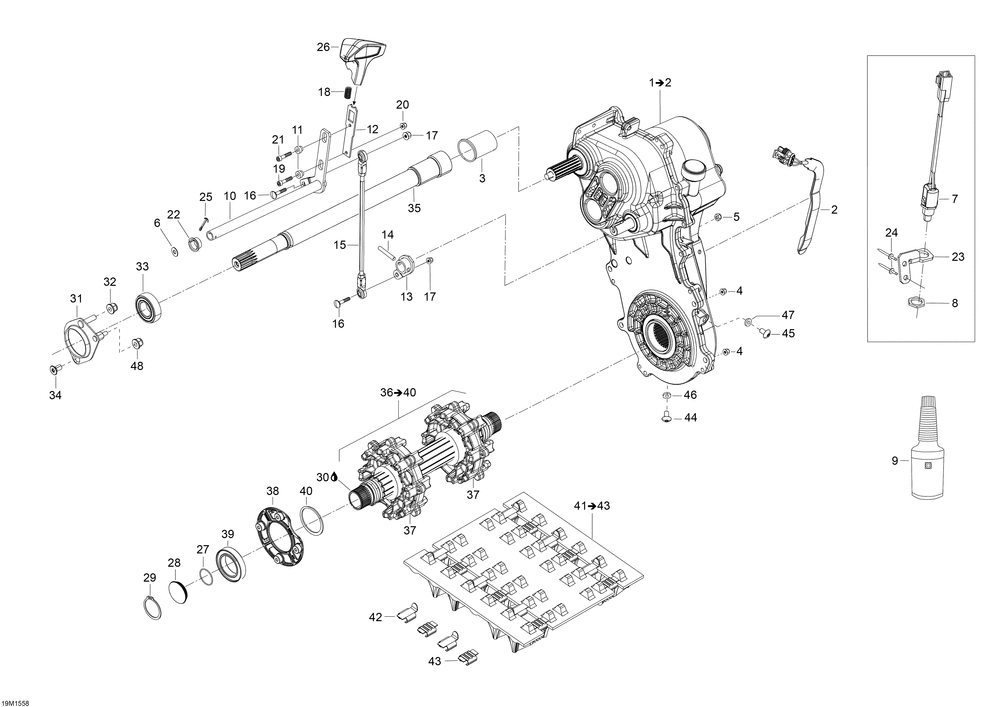

05- Drive System

05- Drive System _19M1558

№	Наименование	Кол-во
1	TRANSMISSION ASS Y (FAST RATIO) Includes 1 To 2	1
2	CAPTEUR *SENSOR	1
3	PROTECTIVE RUBBER	1
4	Hex. Flanged Elastic Nut M8	3
5	Hex. Elastic Stop Nut M8	1
6	RONDELLE *WASHER (25.000 per pack)	2
7	SWITCH ASS Y	1
8	BRASS NUT	1
10	LEVER SHIFTER	1
11	SLEEVE	2
12	SHIFTER ARM	1
13	WELDED LEVER	1
14	SPRING PIN 6 X 30 (1=10PCS) (10.000 per pack)	1
15	SHIFTER ROD	1
16	CARRIAGE BOLT M6 X 20	2
17	Elastic Stop Nut M6	2
18	SPRING	1
19	SOCKET SCREW M5 X 25 (10.000 per pack)	1
20	FLANGED ELASTIC NUT M5 (4.000 per pack)	1
21	FORMING SCREW M5 X 16	1
22	BUSHING	2
23	SENSOR BRACKET	1
24	RIVET HUCKLOK 48 MM HKLP-R6-5GAT	2
25	COTTER PIN	1
26	SHIFTER HANDLE	1
27	O-RING	1
28	MAGNETIC CAP	1
29	CIRCLIP	1
31	BEARING HOUSING	1
33	BALL BEARING	1
34	Torx Screw M8 X 16, Scotch Grip	1
35	COUNTER SHAFT Model-1200 4-TEC	1
36	DRIVE AXLE ASS Y Includes 34 To 38	1
38	HOUSING BEARING	1
39	Ball Bearing	1
40	SHIM	1
41	TRACK ASS Y Includes 39 To 41 Model-North America	1
44	ALLEN SCREW M8 X 10	1
45	ALLEN SCREW M10 X 16	1
46	GASKET-RING	1
47	SEAL RING	1
48	Hex. Flanged Elastic Nut M6	1
