SKI-DOO Expedition SE 600 E-TEC Expedition SE 600 E-TEC 01- Cylinder _03R1554

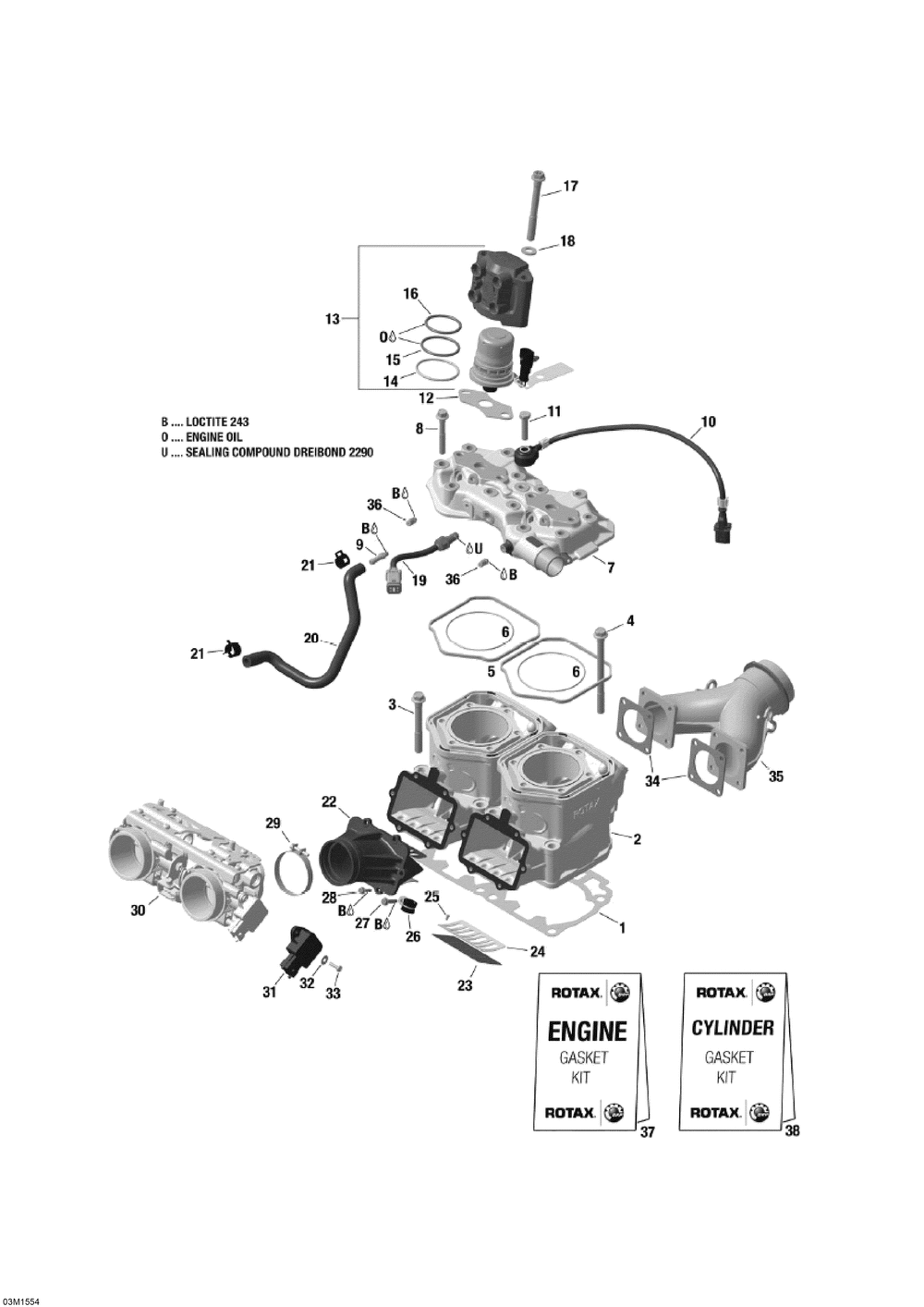

01- Cylinder _03R1554
№ Наименование Примечание Кол-во
1 JOINT 0.5 *GASKET 0.5 1
1 JOINT 0.6 *GASKET 0.6 1
1 JOINT 0.7 *GASKET 0.7 1
1 DOUBLE GASKET 0.8 MM 1
2 CYLINDER 2
3 SCREW-HEX COLLAR 4
4 SCREW-HEX COLLAR 4
5 RUBBER RING 2
6 O-RING 2
7 HEAD CYLINDER COVER 1
8 HEX. SCREW M8 X 56.5 12
9 HOSE NIPPLE 2
10 Датчик детонации 1
11 HEX. SCREW M8 X 35 (10.000 per pack) 1
12 JOINT *GASKET 2
13 FUEL INJECTOR ASS Y Includes 13 To 16 2
14 CRUSH RING 2
15 O-RING 2
16 O-RING 2
17 FLANGED TORX SCREW M10 X 90 4
18 FLAT WASHER M10 (10.000 per pack) 4
19 Female Terminal 2
19 TEMPERATURE SENSOR 1
19 Female Terminal Housing, 2 Circuits 1
20 BOYAU*FORM HOSE 1
21 CLAMP 2
22 INTAKE SOCKET WITH REED VALVE Includes 22 to 25 2
23 REED PEDAL 4
24 REED PEDAL STOP 4
25 PHILLIPS SCREW M3 X 5 (10.000 per pack) 12
26 CLAMP 1
27 TAPPING SCREW M5 X 22 (10.000 per pack) 1
28 TAPPING SCREW M5 X 16 (10.000 per pack) 1
29 CLAMP 2
30 THROTTLE BODY 1
31 POSITION SENSOR 1
32 Flat Washer 4 mm Stainless 2
33 PHILLIPS SCREW M4 X 16 (10.000 per pack) 2
34 JOINT *GASKET (6.000 per pack) 2
35 EXHAUST MANIFOLD 1
37 GASKET SET ENGINE 1
38 GASKET SET CYLINDER 1
