SKI-DOO Summit SP 600HOETEC XM-154 Summit SP 600HOETEC XM-154 09- Frame 600HOETEC_30M1512

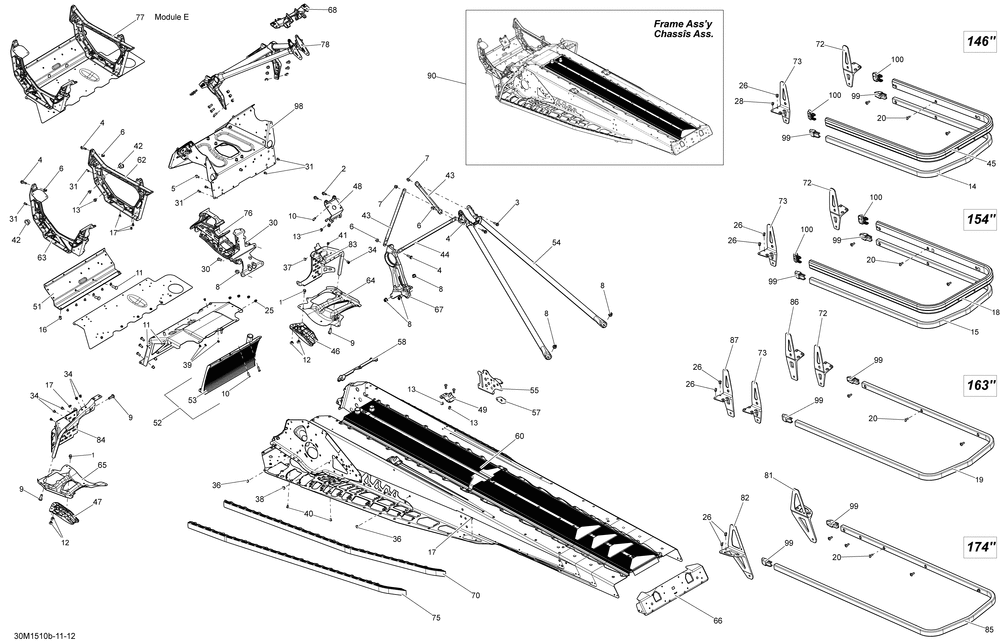

09- Frame 600HOETEC_30M1512
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 12, Scotch Grip 2
2 Hex. Flanged Screw M6 X 16 2
3 Hex. Flanged Screw M6 X 20 2
4 Hex. Flanged Screw M6 X 25 4
5 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
6 Hex. Flanged Elastic Nut M6 4
7 Elastic Flanged Nut M6 X 1.0 2
8 Hex. Flanged Elastic Nut M8 7
9 TORX SCREW M8 X 25 SCOTCH GRIP 3
10 CLINCH STUD M6 X 20 4
11 CLINCH STUD 4
12 Pop Rivet 3/16" 4
13 HEMLOCK RIVET 6.5 MM (5.000 per pack) 10
14 BLACK REAR BUMPER 146" North America 1
15 BLACK REAR BUMPER 154" 154" North America Except Package-BURTON 1
16 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
17 STAVEX RIVET (20.000 per pack) 14
19 BLACK REAR BUMPER 163" 163" North America 1
20 TORX-TRUSS SCREW M6 X 18 (5.000 per pack) 0
25 HENROB RIVET (10.000 per pack) 12
26 HEMLOCK RIVET (10.000 per pack) 8
28 HEMLOCK RIVET 6.4 MM (10.000 per pack) 5
30 MONOBOLT RIVET 6.4 (2.000 per pack) 2
31 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
34 INSERT 5
36 BLACK DART 8 MM 3
37 FULL MOON DART 5 MM 1
38 Black Dart 10 mm 2
39 Pop Rivet 3/16" 3
40 AVEX RIVET (50.000 per pack) 4
41 AVEX RIVET (50.000 per pack) 2
42 BUSHING 2
43 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
44 CENTER COLUMN SUPPORT 1
45 BLACK REAR BUMPER 154" 154" Package-SP Europe 1
45 BLACK REAR BUMPER 163" 163" Package-SP Europe 1
45 BLACK REAR BUMPER 146" Europe 1
46 RH DEFLECTOR 1
47 LH DEFLECTOR 1
48 MAG ENGINE SUPPORT 1
49 LH REAR BASE 1
49 RH REAR BASE 1
51 FRONT MEMBER 1
52 FRONT RADIATOR 1
53 FRONT RADIATOR 1
54 REAR MEMBER 1
58 JOINT *SEAL 1
60 REAR RADIATOR ASS Y 154" 154" 1
60 REAR RADIATOR ASS Y 146" 1
60 REAR RADIATOR ASS Y 163" 163" 1
62 RH MEMBER 1
63 LH MEMBER 1
64 RENFORT DR *REINFORCEMENT 1
65 RENFORT GA *REINFORCEMENT 1
66 REAR CAP 1
67 PULLEY SUPPORT 1
68 SUB A SUPPORT 1
72 RH SUSPENSION BRACKET 1
73 LH SUSPENSION BRACKET 1
75 RH ROLLER 1
75 LH ROLLER 1
76 FRONT SUSPENSION SUPPORT 1
77 FRONT E MODULE 1
78 FRONT MEMBER 1
83 ETRIER DROIT *RH.STIRUP 1
84 ETRIER GA *LH.STIRUP 1
90 BLACK FRAME ASS Y 146 1
90 BLACK FRAME ASS Y 154 Package-SP 154" 1
90 BLACK FRAME ASS Y 163 Package-SP 163" 1
98 MODULE S *CROSS MEMBER 1
99 BLACK CAP North America Model 2
100 BLACK LH CAP Europe Model 1
100 BLACK RH CAP Europe Model 1
