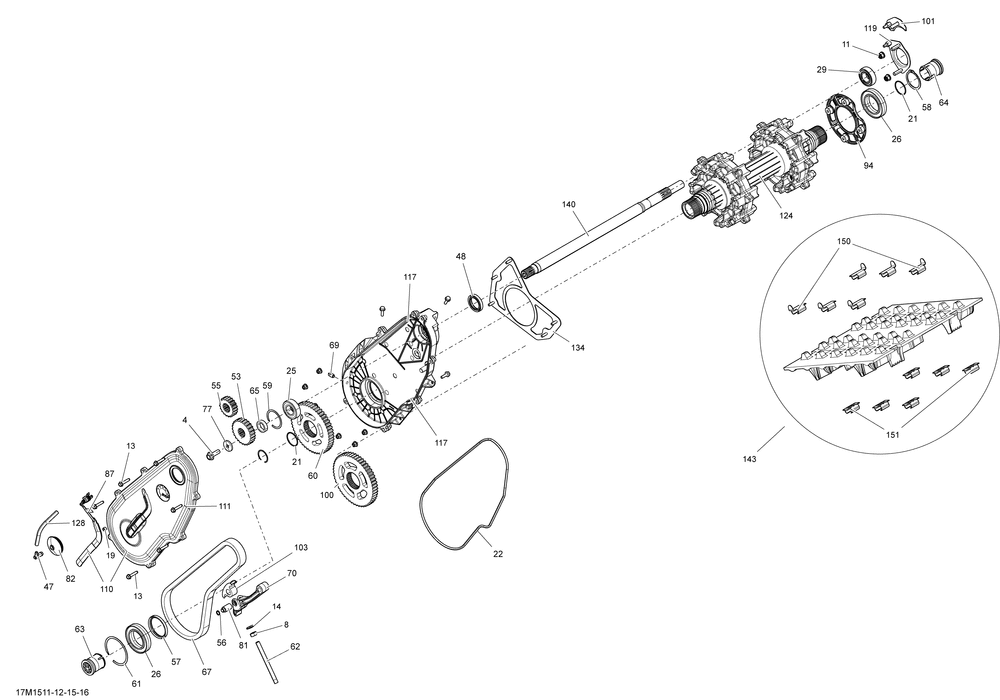

05- Drive System 800RETEC

05- Drive System 800RETEC_17M1512

№	Наименование	Кол-во
4	HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack)	1
8	Hex. Nut M10	1
11	Hex. Flanged Elastic Nut M8	1
14	BONDED WASHER 3/8 X 7/8 (5.000 per pack)	1
21	O-RING	2
22	O-RING	1
25	Ball Bearing	1
26	Ball Bearing	2
47	MALE CONNECTOR (5.000 per pack)	1
48	OIL SEAL	1
53	SPROCKET 21 TEETH Engine 600 ETEC Package XRS	1
55	SPROCKET 19 TEETH Package Sport Egine 800	1
56	Circlip	1
57	SEAL	1
58	CIRCLIP	2
59	CIRCLIP	1
60	SPROCKET 49 TEETH Package SP 146 154 800ETEC	1
61	CIRCLIP	1
62	ADJUSTMENT SCREW	1
63	MAGNETIC CAP	1
65	SHIM	1
67	DRIVE CHAIN 104 LINKS Package Sport	1
67	DRIVE CHAIN 106 LINKS	1
69	MAGNETIC PLUG	1
70	CHAIN TENSIONER	1
77	SPRING WASHER M10 (3.000 per pack)	1
81	TENSIONNER AXLE	1
82	CAP	1
87	CAPTEUR *SENSOR	1
94	HOUSING BEARING	1
100	SPROCKET 51 TEETH UJGA UJGB UJGC UJGD UXGC UXGD UXGG UXGH UXGJ	1
101	BEARING HOUSING	1
103	SLIDER CHAIN	1
110	COUVERCLE *COVER ASS Y	1
111	CASTING COVER	1
117	CHAIN CASE	1
124	DRIVE AXLE ASS Y	1
128	Hose, Polyurethane	1
134	PLATE ASSY	1
143	TRACK ASS Y 16" X 154" X 2.50" Package Burton SP 154 X 154	1
143	TRACK ASS Y 16" X 163" X 2.50" Package SP 163	1
143	TRACK ASS Y 16" X 146" X 2.50" Package SP 146	1
150	GUIDE *CLIP Model-Europe	26
151	AGRAFE DE GUIDE*CLEAT-GUIDE	26
