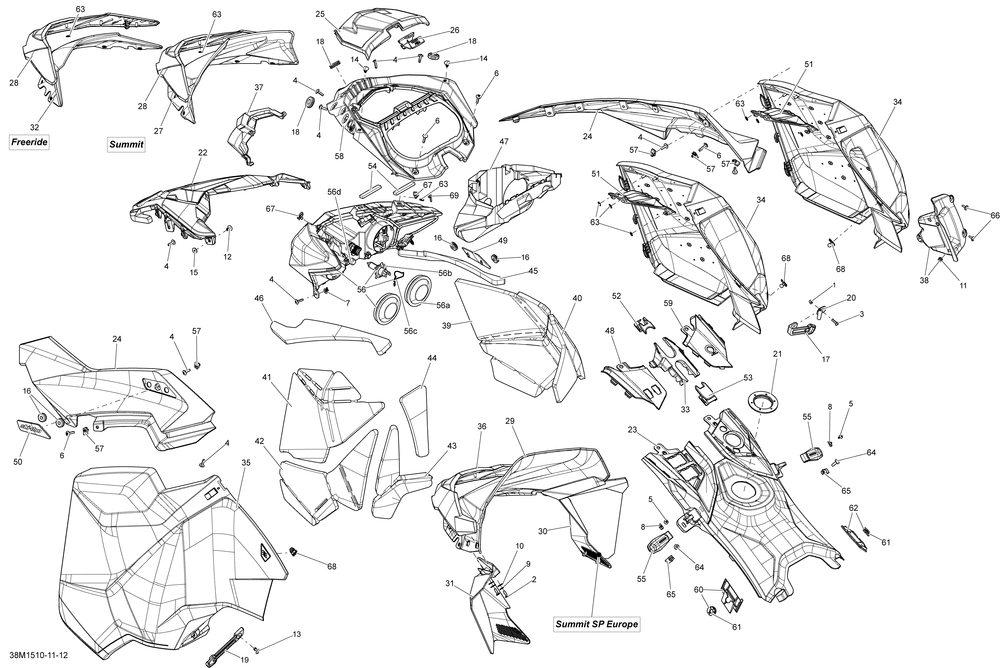

SKI-DOO Summit X 800RETEC XM-163 Summit X 800RETEC XM-163 09- Hood _38M1511
09- Hood _38M1511
№ Наименование Примечание Кол-во
1 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
3 TORX SCREW M5 X 20 (6.000 per pack) 1
4 Torx Screw M5 X 20 12
5 HEXALOB SCREW M4 X 10 2
6 TORX SCREW M5 X 26 4
7 JACK NUT M5 2
8 WELD NUT M4 2
11 BLACK CAP (5.000 per pack) 3
12 Pop Rivet 3/16" 8
13 POP RIVET 3/16tahos_ (25.000 per pack) 1
14 DART GS Black A19N Model (10.000 per pack) 2
15 RONDELLE *WASHER (10.000 per pack) 8
17 RH PANEL LATCH 1
18 RONDELLE *GROMMET 3
19 LH PANEL LATCH 1
20 LATCH SUPPORT 1
21 CONSOLE NUT 1
22 DEEP BLACK CENTER HOOD 1
22 ORANGE RACE CENTER HOOD 1
22 CAPOT *HOOD Model-Orange-Black Include 29 35 1
23 YELLOW REAR CONSOLE 1
23 BLACK REAR CONSOLE 1
24 DEEP BLACK RH HOOD Black-Black Model 1
24 YELLOW SUNBURST RH HOOD 1
24 YELLOW SUNBURST LH HOOD 1
24 ORANGE RACE RH HOOD Model-Orange-Black 1
24 ORANGE RACE LH HOOD Model-Orange-Black 1
24 DEEP BLACK LH HOOD Black-Black Model 1
25 UPPER STORAGE ACCESS COVER 1
26 COVER LATCH 1
27 WINDSHIELD 235 X BCX 1
28 SHORT WINDSHIELD SUPPORT 1
33 CONSOLE SUPPORT 1
34 ORANGE RACE RH PANEL Model-Orange-Orange Manual Start 1
34 ORANGE RACE RH PANEL Model-Orange-Orange Electric Starter 1
34 YELLOW RH PANEL Panel With Handle Opening 1
34 DEEP BLACK RH PANEL Panel Without Handle Opening - Except Burton Package 1
34 BLACK RH PANEL 1
35 ORANGE RACE LH PANEL Model-Orange-Orange 1
35 DEEP BLACK LH PANEL 1
35 SUNBURST YELLOW LH PANEL 1
37 HEADLIGHT TRIM CAP Black 1
38 DEEP BLACK RH CONSOLE 1
39 RH UPPER PANEL FOAM 1
40 RH REAR PANEL FOAM 1
41 LH UPPER PANEL FOAM 1
42 LH CENTER PANEL FOAM 1
43 LH LOWER PANEL FOAM 1
44 LH REAR PANEL FOAM 1
45 RH REAR HOOD FOAM 1
46 LH REAR HOOD FOAM 1
47 TRUNK 1
48 CONSOLE AVANT *CONSOLE-FRONT 1
49 RH HOOD FILLER PLATE 1
50 LH HOOD FILLER PLATE 1
51 RH PANEL VENT GRID 1
52 DEEP BLACK SUPPORT CONSOLE CAP 1
53 SUPPORT CONSOLE CAP 1
54 SEAL JOINT 2
55 PANEL LATCH 2
56 HEADLAMP Includes 56 to 56d 1
56a CAP 2
56b Halogen Bulb, 60/55 W, 12 V ( H4 ) 2
56c HOLDER BRACKET 2
56d Spring 2
57 PANEL NUT M5 X 0.8 (10.000 per pack) 8
58 DEEP BLACK INDICATOR SUPPORT 1
59 RH FRONT CONSOLE 1
60 LH PANEL CLIP ASS Y 1
61 RING 2
62 RH PANEL CLIP ASS Y 1
63 PUSH NUT 3
63 Push Nut 6
64 Torx Truss Screw M6 X 20 2
65 Panel Nut M6 X 1.0 2
66 Screw M4 X 16 2
68 TIGE *PIN 1
