SKI-DOO Tundra LT 550F XU-154 Tundra LT 550F XU-154 08- Rear Suspension _26M1529

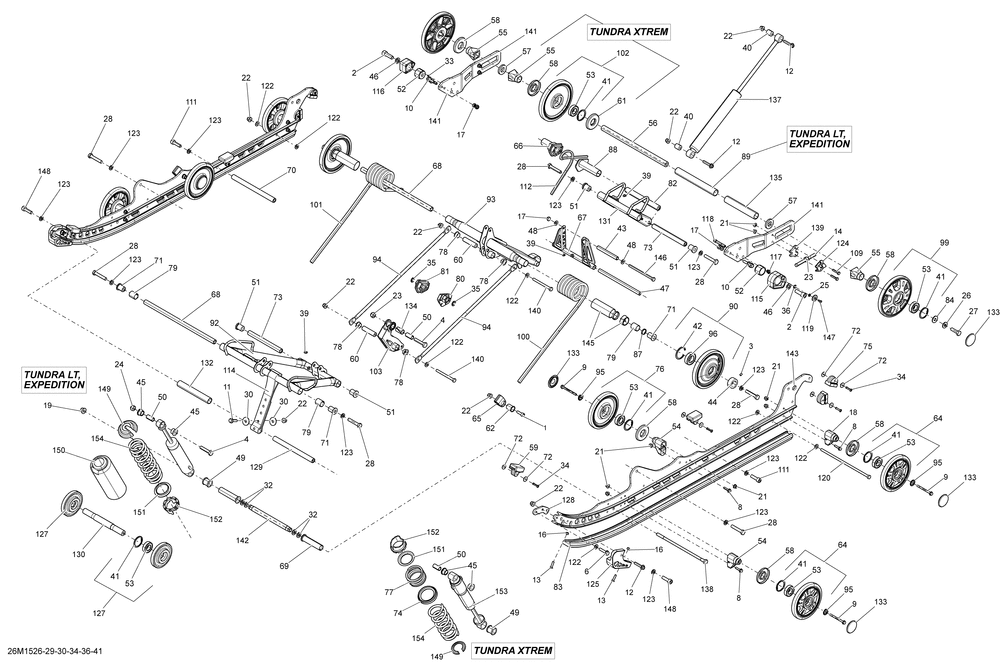

08- Rear Suspension _26M1529
№ Наименование Примечание Кол-во
1 SOCKET SCREW M8 X 25 (2.000 per pack) 2
2 SOCKET HEAD SCREW M12 X 35 SCOTCH GRIP (5.000 per pack) 2
3 SOCKET SET SCREW M6 X 8 (5.000 per pack) 2
4 HEX. SCREW M10 X 50 (10.000 per pack) 2
6 HEX. FLANGED SCREW M8 X 35 SCOTCH GRIP (4.000 per pack) 2
8 HEX. FLANGE SCREW M6 X 25 6
9 HEX. FLANGE SCREW M6 X 70 6
10 Hex. Flanged Screw M8 X 25 4
11 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 1
12 Hex. Flanged Screw M8 X 40 4
13 PHILLIPS SCREW M6 X 25 (4.000 per pack) 3
14 HEX SCREW M10 X 100 2
16 Elastic Stop Nut M6 3
17 Hex. Elastic Stop Nut M8 5
18 CASTED SUPPORT 2
19 Flanged Elastic Nut M10 1
21 Hex. Flanged Elastic Nut M6 16
22 NUT-FLANGE ELASTIC DIN.6926 10
23 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
24 Elastic Locking Nut M10 3
25 FLAT WASHER M5 (10.000 per pack) 1
26 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
27 HEX CAP SCREW NYLON 2
28 HEX. SCREWS.GRIP M10 X 55 8
30 FLAT WASHER 8 MM 2
32 FLAT WASHER 4
33 DOWEL PIN 4 X 8 MM (10.000 per pack) 1
34 POP RIVET 3/16" (10.000 per pack) 8
35 E-Circlip 2
36 CIRCLIP (2.000 per pack) 1
39 GREASE FITTING (10.000 per pack) 4
40 CUSHION Model-LE & SE (2.000 per pack) 2
41 RETAINING RING 4
42 RETAINING RING 1
43 UPPER AXLE PIVOT ARM 1
44 RETAINING RING 2
45 Bushing Urethane 2
46 RONDELLE *WASHER (5.000 per pack) 2
47 PIVOT ARM AXLE 1
48 Washer 2
49 COUSSINET URETH*CUSHION-URETH. 1
50 Bushing 2
51 CUSHION (2.000 per pack) 4
52 BLOCK GUIDE (2.000 per pack) 2
53 BALL BEARING 4
55 REAR WHEEL SPACER 2
56 REAR AXLE 1
57 RONDELLE *WASHER 2
58 LABYRINTH SEAL 8
59 RUBBER STOPPER 4
60 AXLE BAR (LONG) Model-LE 2
61 LABYRINTH SEAL 1
62 RETAINER CUSHION (2.000 per pack) 2
64 DEEP BLACK WHEEL ASS Y 147 MM 6
65 SPRING SUPPORT 2
66 RH SPRING CAM 1
67 PIVOT ARM 1
68 UPPER SHAFT 2
69 ENTRETOISE *SPACER 2
70 AXLE STRAP 1
71 COUSSINET *BUSHING 4
72 RONDELLE * WASHER (6.000 per pack) 16
73 LOWER SHAFT 2
75 RUBBER STOPPER 4
76 BLACK WHEEL ASS Y 147 MM 2
78 SWIVEL BUSHING 6
79 EXTENDED BUSHING 4
80 LH CAM ADJUSTER 1
81 RH CAM ADJUSTER 1
82 CAM AXEL 1
83 BLACK SLIDER 154" 1
84 RONDELLE *WASHER (3.000 per pack) 2
87 RONDELLE *WASHER 2
88 LH SPRING CAM 1
89 REAR SPACER LONG 1
90 BLACK WHEEL ASS Y 155 MM 2
92 FRONT ARM 1
93 REAR ARM 1
94 TIGE ACCEL *LINK ROD Model-LE 2
95 WHEEL CUP M6 6
96 BALL BEARING 1
99 DEEP BLACK WHEEL ASS Y 165 MM 2
100 BLACK LH SPRING SQUARE 1
101 BLACK RH SPRING SQUARE 1
103 ROCKER 1
109 HEX. CAP SCREW M6 X 30 (2.000 per pack) 4
111 SOCKET HEAD SCREW M10 X 35 2
112 PIVOT SPRING 1
114 STOPPER STRAP 1
115 BLOC GAUCHE *BLOCK-LH 1
116 BLOC DROIT *BLOCK-RH 1
117 COMPRESSION SPRING 1
118 TIGE *SHAFT 1
119 POIGNÉE *HANDLE 1
120 BOLT M8 X 248MM 1
122 Washer 10
123 Washer 10
124 TENSIONER 2
125 LH PROTECTOR 1
125 RH PROTECTOR 1
127 BLACK WHEEL ASS Y 100 MM 2
128 PLAQUE *PLATE 2
129 AXLE STRAP 1
130 FRONT WHEEL AXLE 1
131 RUNNER PIVOT 1
132 SPACER 1
133 BLACK WHEEL CAP 6
134 COUSSINET *CUSHION 1
137 REAR SHOCK HPG SEAL 1
138 BOLT M10 X 251MM 1
139 SPACER 2
140 SCREW M8 X 90 2
141 RH RAIL PIVOT Model-SE 1
141 LH RAIL PIVOT Model-SE 1
142 PIVOT AXLE 1
143 RUNNER 1
145 BUSHING 2
146 BOLT M8 SHORT 1
147 Torx Screw M5 X 14 1
149 Spring Stopper 1
150 PROTECTOR 1
151 SPRING GUIDE 1
152 ADJUSTEMENT CAM 1
153 CENTER SHOCK Model-North America 1
154 BLACK SPRING Package-Backcountry 1
