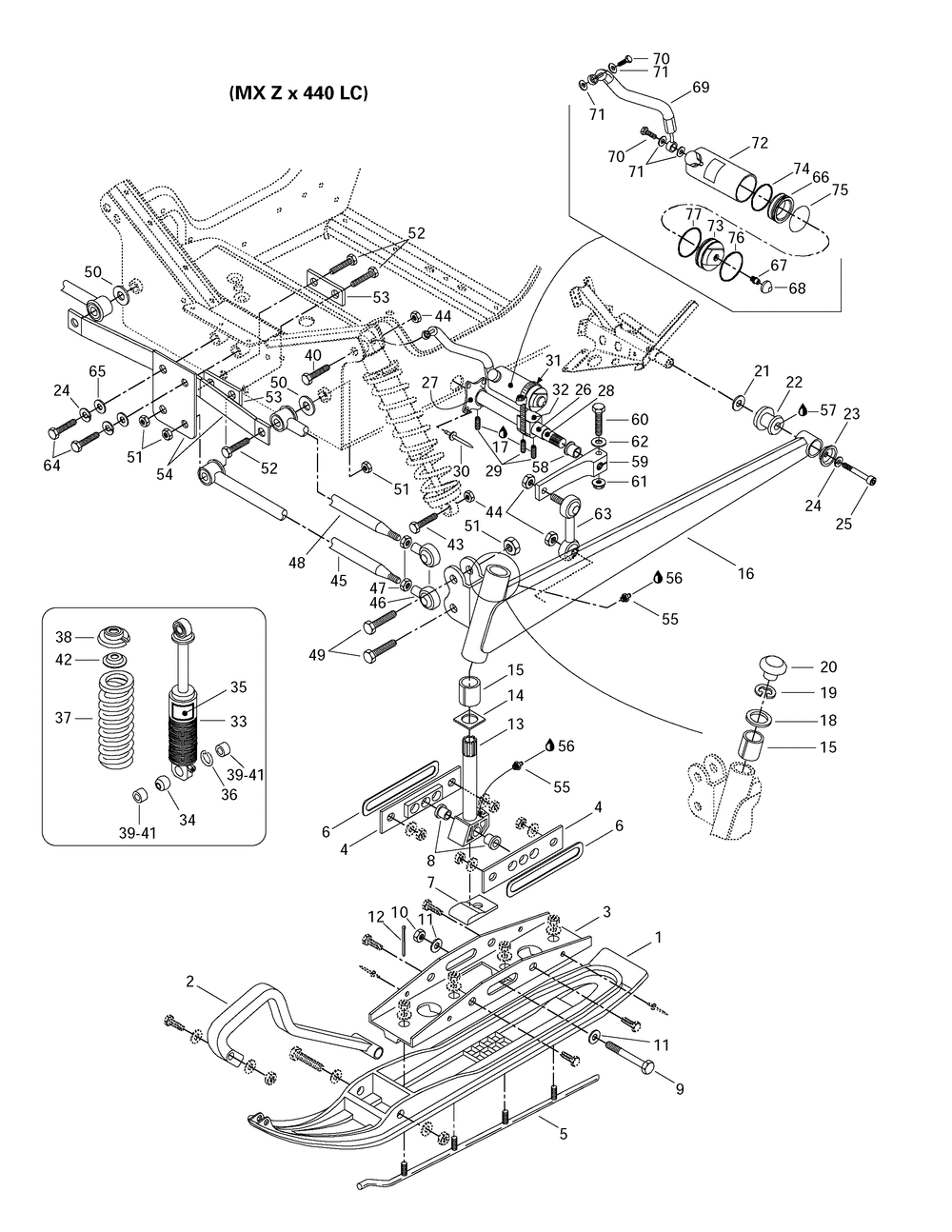

07- Front Suspension And Ski (MX Z X 440 LC)

Корзина пуста
SKI-DOO MX Z 440 LC MX Z 440 LC 07- Front Suspension And Ski (MX Z X 440 LC)
07- Front Suspension And Ski (MX Z X 440 LC)
№ Наименование Примечание Кол-во
5 CARBIDE RUNNER MX Z x 440 LC. 2
11 FLAT WASHER (10.000 per pack) 4
17 LOCTITE 243 10 ML 0
19 CIRCLIP (10.000 per pack) 2
20 CAP 2
21 RONDELLE *WASHER (10.000 per pack) 2
22 DAMPER 2
23 CUP 2
24 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 4
25 SOCKET HEAD SCREW M8 X 25 (10.000 per pack) 2
29 SOCKET SET SCREW M8 X 10 (5.000 per pack) 6
31 TRIDON GEAR CLAMP 2
34 RADIAL BALL-JOINT 4
36 INTERIOR CIRCLIP (10.000 per pack) 4
38 SPRING STOPPER 2
39 BUSHING (10.000 per pack) 6
40 HEX. SCREW M10 X 60 (5.000 per pack) 2
42 CAP 2
43 HEX. SCREW M10 X 55 (5.000 per pack) 2
44 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 8
47 HEX. JAM NUT M14 (5.000 per pack) 4
50 FLAT WASHER 12 MM (10.000 per pack) 2
51 NUT-STOP ELASTIC DIN.985 (5.000 per pack) 8
55 GREASE FITTING (10.000 per pack) 4
57 GRAISSE *GREASE 0
60 HEX. SCREW M8 X 45 Formula Deluxe 500. (10.000 per pack) 2
61 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 2
62 FLAT WASHER 8 MM (10.000 per pack) 2
64 HEX. SCREW M8 X 25 (10.000 per pack) 2
65 FLAT WASHER 8 MM (10.000 per pack) 2
66 FREE PISTON X 2
67 AIR VALVE (2.000 per pack) 2
70 BOLT 4
71 JOINT TORIQUE *PACKING 8
74 O-RING 2
75 PISTON RING 2
76 STOP RING 2
77 O-RING 2
