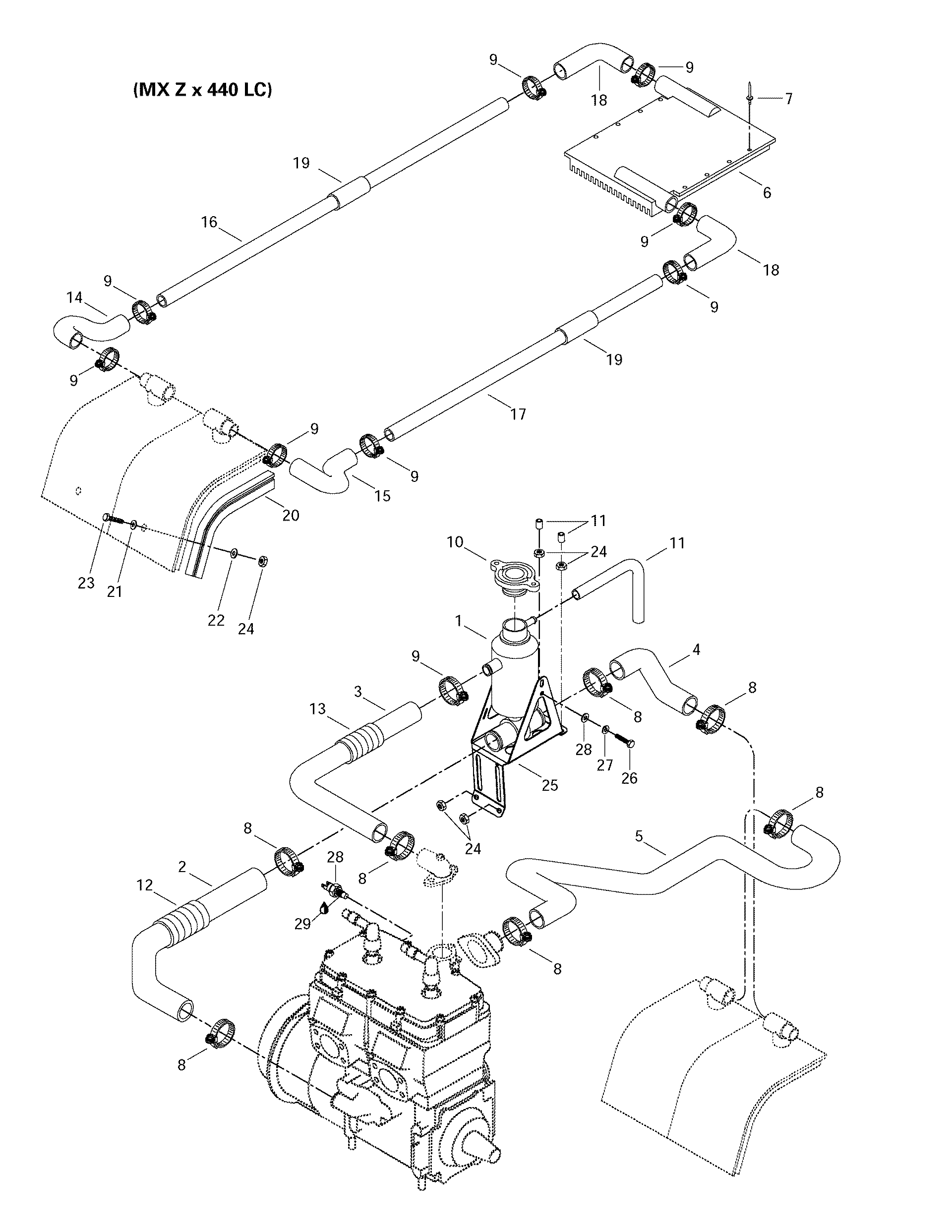

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TANK-COOLANT | 1 | |
| 2 | HOSE-INLET ENG | 1 | |
| 3 | HOSE-OUT.ENG. | 1 | |
| 4 | HOSE-OUT.RAD. | 1 | |
| 5 | HOSE-INLET RAD | 1 | |
| 6 | RAD.-REAR WELD | 1 | |
| 7 | Pop Rivet 3/16" | 8 | |
| 8 | TRIDON GEAR CLAMP (10.000 per pack) | 7 | |
| 10 | BOUCHON RADIAT.*PRESSURE CAP | 1 | |
| 11 | Hose, Polyurethane | 0 | |
| 12 | PROTECTOR TUBE | 0 | |
| 14 | RH.HOSE | 1 | |
| 15 | HOSE-CONNEC.LH | 1 | |
| 16 | TUBE-TRANSF.RH | 1 | |
| 17 | TUBE-TRANSF.LH | 1 | |
| 18 | HOSE-CONNEC. | 2 | |
| 19 | HOSE | 2 | |
| 20 | PROTECTEUR *PROTECTOR | 2 | |
| 21 | Flat Washer | 4 | |
| 22 | FLAT WASHER 6 MM (10.000 per pack) | 2 | |
| 23 | HEX. SCREW M6 X 12 (10.000 per pack) | 2 | |
| 24 | NUT-STOP ELASTIC DIN.985 (10.000 per pack) | 6 | |
| 25 | SUPPORT-TANK | 1 | |
| 26 | HEX. SCREW M6 X 10 (10.000 per pack) | 2 | |
| 27 | WASHER-LOCK BLACK DIN.127B (10.000 per pack) | 2 | |
| 28 | TEMPERATURE SENSOR | 1 | |
| 29 | LOCTITE 592 PIPE SEALANT 50 ML | 0 |
