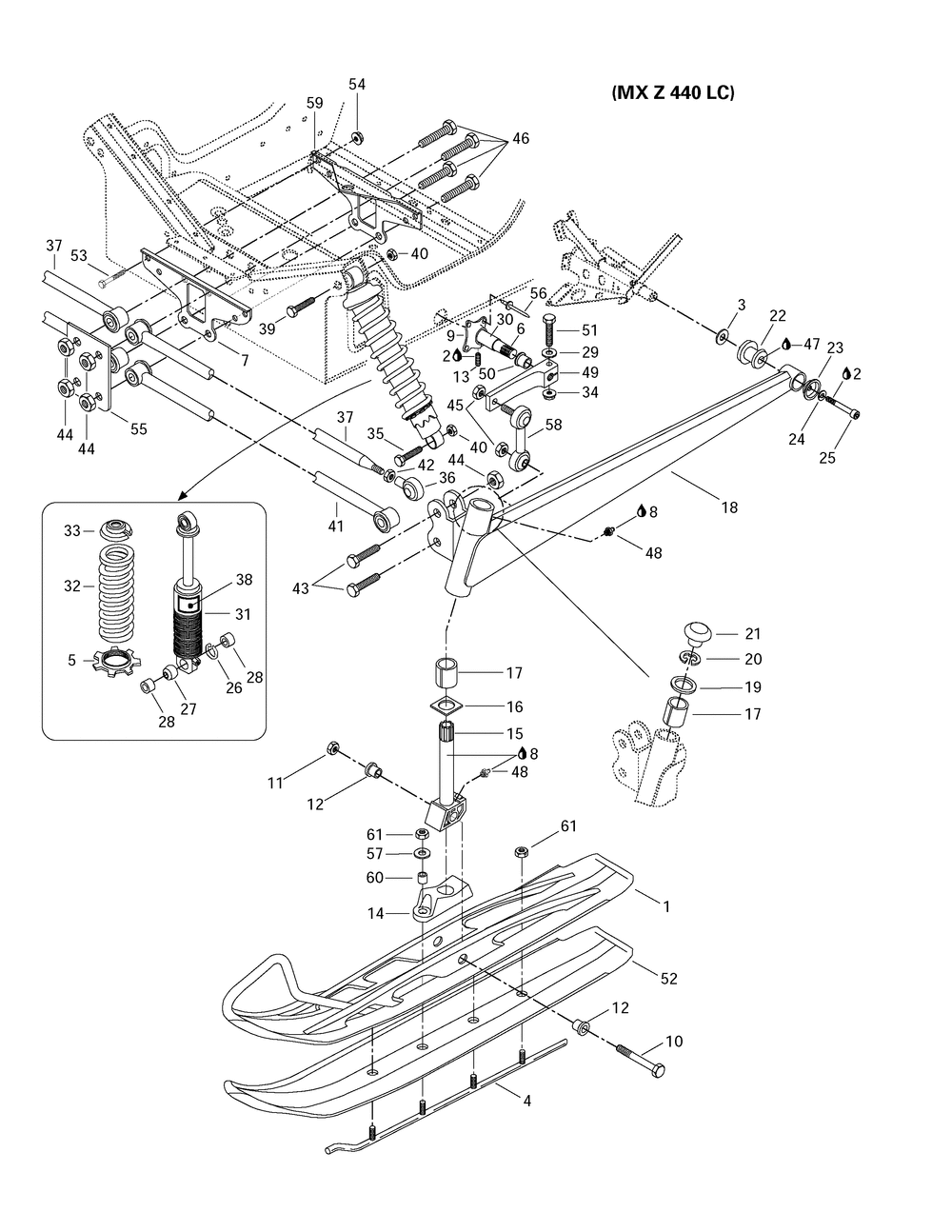

07- Front Suspension And Ski (MX Z 440 LC)

Корзина пуста
SKI-DOO MX Z 440 LC MX Z 440 LC 07- Front Suspension And Ski (MX Z 440 LC)
07- Front Suspension And Ski (MX Z 440 LC)
№ Наименование Примечание Кол-во
2 LOCTITE 243 10 ML 0
3 RONDELLE *WASHER (10.000 per pack) 2
11 NUT-STOP ELASTIC DIN.985 (5.000 per pack) 2
12 COUSSINET *CUSHION (5.000 per pack) 4
13 SOCKET SET SCREW M8 X 10 (5.000 per pack) 4
14 BUTEE DE SKI *STOPPER-SKI 2
17 COUSSINET *CUSHION (5.000 per pack) 4
20 CIRCLIP (10.000 per pack) 2
21 CAP 2
22 DAMPER 2
23 CUP 2
24 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 2
25 SOCKET HEAD SCREW M8 X 25 (10.000 per pack) 2
26 INTERIOR CIRCLIP (10.000 per pack) 4
27 RADIAL BALL-JOINT 4
28 BUSHING (10.000 per pack) 8
29 FLAT WASHER 8 MM (10.000 per pack) 2
33 SPRING STOPPER 2
34 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 2
35 HEX. SCREW M10 X 60 (5.000 per pack) 2
39 HEX. SCREW M10 X 55 (5.000 per pack) 2
40 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 4
42 HEX. JAM NUT M14 (5.000 per pack) 2
47 GRAISSE *GREASE 0
48 GREASE FITTING (10.000 per pack) 4
49 LEVIER STABIL.U*LEVER-STABIL.MACH. 2
50 COUSSINET *CUSHION 2
51 HEX. SCREW M8 X 40 (10.000 per pack) 2
53 HEX. SCREW M6 X 55 Formula Deluxe 670. (10.000 per pack) 4
54 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 4
57 FLAT WASHER 8 MM (10.000 per pack) 2
60 BUSHING (10.000 per pack) 2
61 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 8
