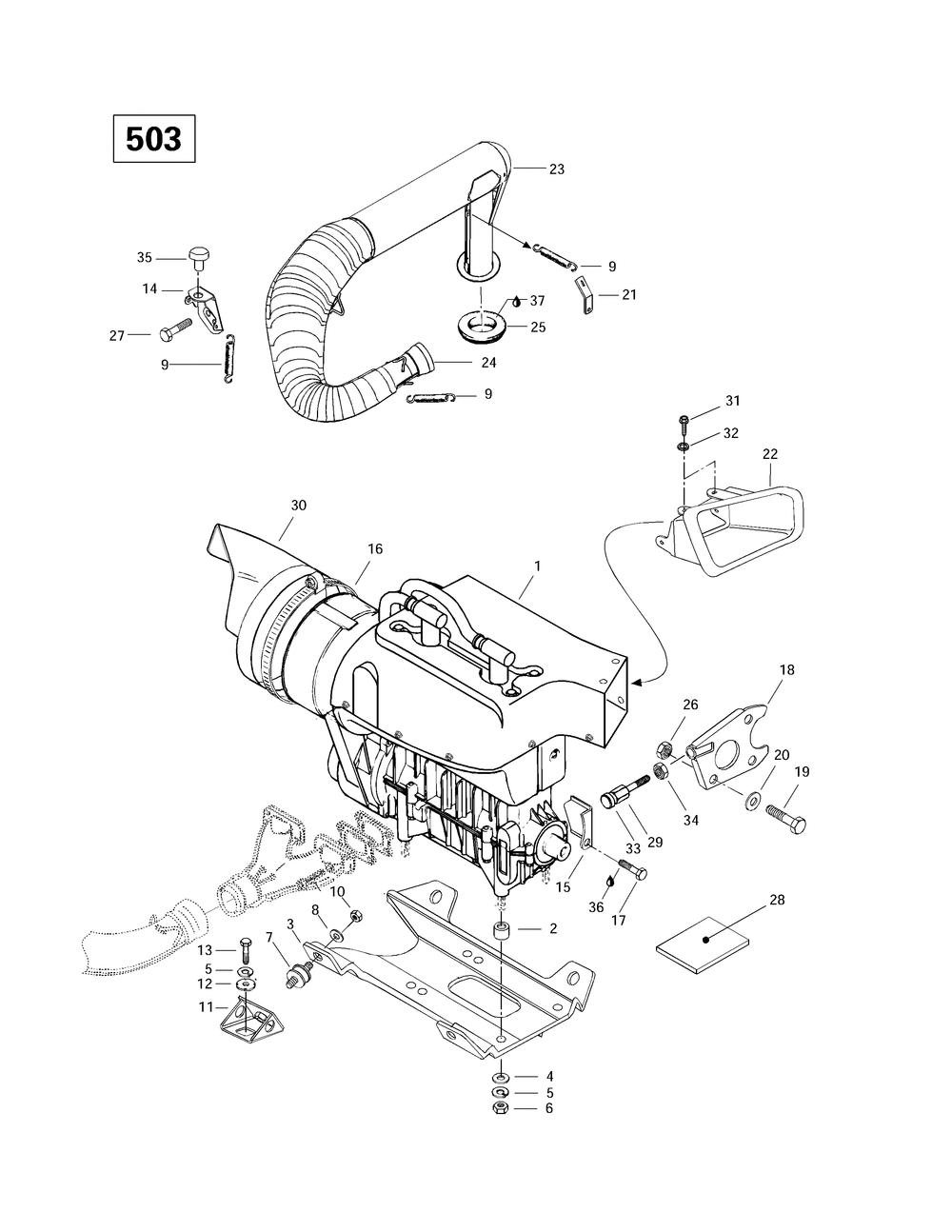

SKI-DOO Touring E LT Touring E LT 01- Engine Support And Muffler (503)
01- Engine Support And Muffler (503)
№ Наименование Примечание Кол-во
2 SPACER (2.000 per pack) 4
4 FLAT WASHER 10 MM (10.000 per pack) 4
5 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 8
6 HEX. NUT M10 (10.000 per pack) 4
7 RUBBER MOUNT 4
9 SPRING (10.000 per pack) 5
10 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 4
12 RONDELLE-FREIN *WASHER-LOCK (5.000 per pack) 4
13 HEX. SCREW M10 X 25 (10.000 per pack) 4
17 HEX. SCREW M8 X 20 (10.000 per pack) 1
19 HEX. SCREW M8 X 25 (10.000 per pack) 1
20 FLAT WASHER 8 MM (10.000 per pack) 1
21 SPRING BRACKET 1
24 FEMALE BALL JOINT 1
25 EXHAUST GROMMET 1
26 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 1
27 HEX. SCREW M10 X 60 (5.000 per pack) 1
31 HEX. SCREW 12 X 3/4 (10.000 per pack) 4
32 WASHER-LOCK SERRATED INT.EXT.M6 4
34 HEX. NUT M12 (10.000 per pack) 1
35 RUBBER BUMPER SUV 550 (2.000 per pack) 1
36 LOCTITE 271 10 ML 0
37 GRAISSE *GREASE 0
