SKI-DOO Touring E LT Touring E LT 08- Front Arm Rear Suspension 136

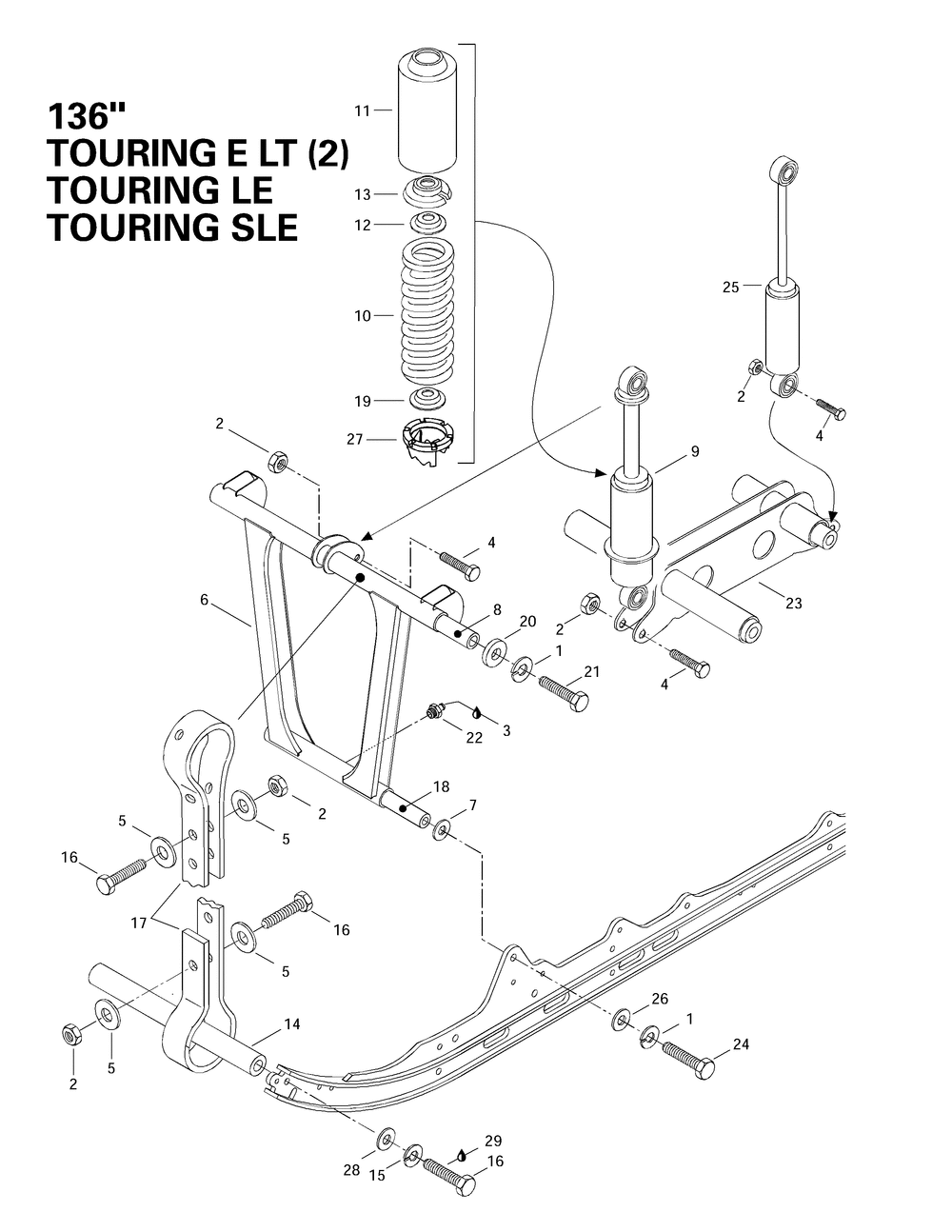

08- Front Arm Rear Suspension 136
№ Наименование Примечание Кол-во
AMORTISSEUR *SHOCK Formula 500. Formula 500 Deluxe. Formula 583. 1
1 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 4
2 HEX. ELASTIC STOP NUT M8 Formula Deluxe 380. (10.000 per pack) 5
4 HEX. SCREW M8 X 40 (10.000 per pack) 3
5 RONDELLE *WASHER (10.000 per pack) 4
8 ARBRE *SHAFT Formula Z 583. Formula 583 Deluxe. 1
9 CUSHION (2.000 per pack) 1
11 PROTECTOR Formula Z 583. Formula 583 Deluxe. 1
12 CAP 1
13 SPRING STOPPER 1
14 AXE *AXLE 1
15 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 2
16 HEX. SCREW M8 X 30 (10.000 per pack) 4
17 COURROIE ARRET *STOPPER STRAP Formula Z 583. Formula 583 Deluxe. 1
18 ESSIEU DE ROUES*WHEEL-AXLE Formula 500. Formula 500 Deluxe. 1
19 SPRING GUIDE 1
21 HEX. SCREW M10 X 60 (5.000 per pack) 2
22 GREASE FITTING (10.000 per pack) 2
24 HEX. SCREW M10 X 35 Formula Deluxe 500. (10.000 per pack) 2
25 CUSHION (5.000 per pack) 1
26 FLAT WASHER 10 MM (10.000 per pack) 2
27 ADJUSTER RING 1
28 FLAT WASHER 8 MM (10.000 per pack) 2
29 LOCTITE 271 10 ML 0
