SKI-DOO Grand Touring 500 Grand Touring 500 10- Electrical System 500

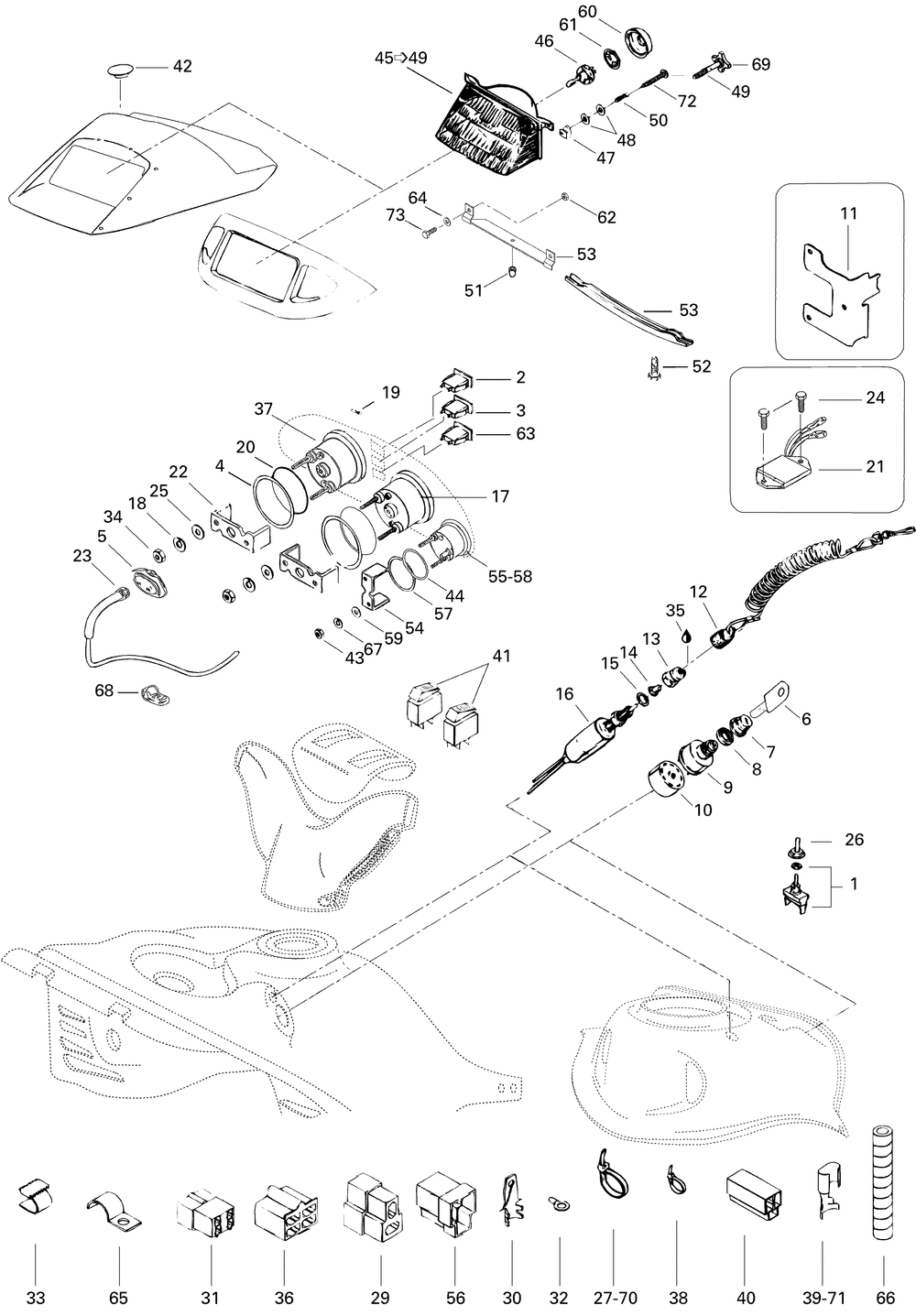

10- Electrical System 500
№ Наименование Примечание Кол-во
1 SWITCH (HEATING GRIP) 2
2 PILOT LAMP OIL LEVEL/BRAKE 1
3 PILOT LAMP HEADLAMP 1
4 RONDELLE *WASHER 2
6 BLANK KEY (5.000 per pack) 1
7 SWITCH BOOT (5.000 per pack) 1
8 FACE NUT 1
9 IGNITION SWITCH 1
10 FEMALE TERMINAL HOUSING 9 CIRCUITS 1
12 CAP ASS Y 1
13 SWITCH NUT (5.000 per pack) 1
14 PLUNGER CAP (5.000 per pack) 1
16 BRAKE SWITCH ASS Y 1
19 INSTRUMENTATION BULB (10.000 per pack) 0
20 JOINT TORIQUE *PACKING 2
21 REGU.TENSION AS*REGULATOR-VOLT 1
22 CASE HOLDER 2
24 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
25 FLAT WASHER (10.000 per pack) 4
26 SWITCH COVER (4.000 per pack) 2
27 Tie-Rap 180 mm 0
28 RESISTANCE 0
29 MALE HOUSING (5.000 per pack) 0
30 MALE TERMINAL (10.000 per pack) 0
31 MALE HOUSING (5.000 per pack) 0
32 OPEN BARREL (10.000 per pack) 0
33 CLIP (5.000 per pack) 0
36 LOGEMENT FEMEL.*HOUSING-FEMALE (5.000 per pack) 0
38 TIE-RAP 350 MM Formula DLX 500 LC. (10.000 per pack) 0
39 FEMALE TERMINAL (10.000 per pack) 0
40 LOGEMENT FEMEL.*HOUSING-FEMALE (10.000 per pack) 0
44 JOINT TORIQUE *PACKING (5.000 per pack) 2
45 BULB HOLDER 1
45 BULB HOLDER Includes 1 - 1E. 1
46 HALOGEN BULB 60/55 W 12 V 1
47 PROJECTOR NUT (10.000 per pack) 2
48 FLAT WASHER M5 (10.000 per pack) 4
50 SPRING (4.000 per pack) 2
51 RUBBER STOPPER 1
56 LOGEMENT MALE *HOUSING-MALE SE Models (10.000 per pack) 0
60 COVER 1
61 BULB HOLDER 1
62 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
63 PILOT LAMP ENGINE TEMPERATURE SUV 600 1
64 FLAT WASHER (10.000 per pack) 2
66 TUBING 13 MM (10.000 per pack) 0
68 Cable clip 0
70 TIE RAP 94MM (50.000 per pack) 0
71 FEMALE TERMINAL (10.000 per pack) 0
72 PLASTITE PHILLIPS SCREW M4 X 40 (10.000 per pack) 2
73 HEX. SCREW M5 X 12 (10.000 per pack) 2
