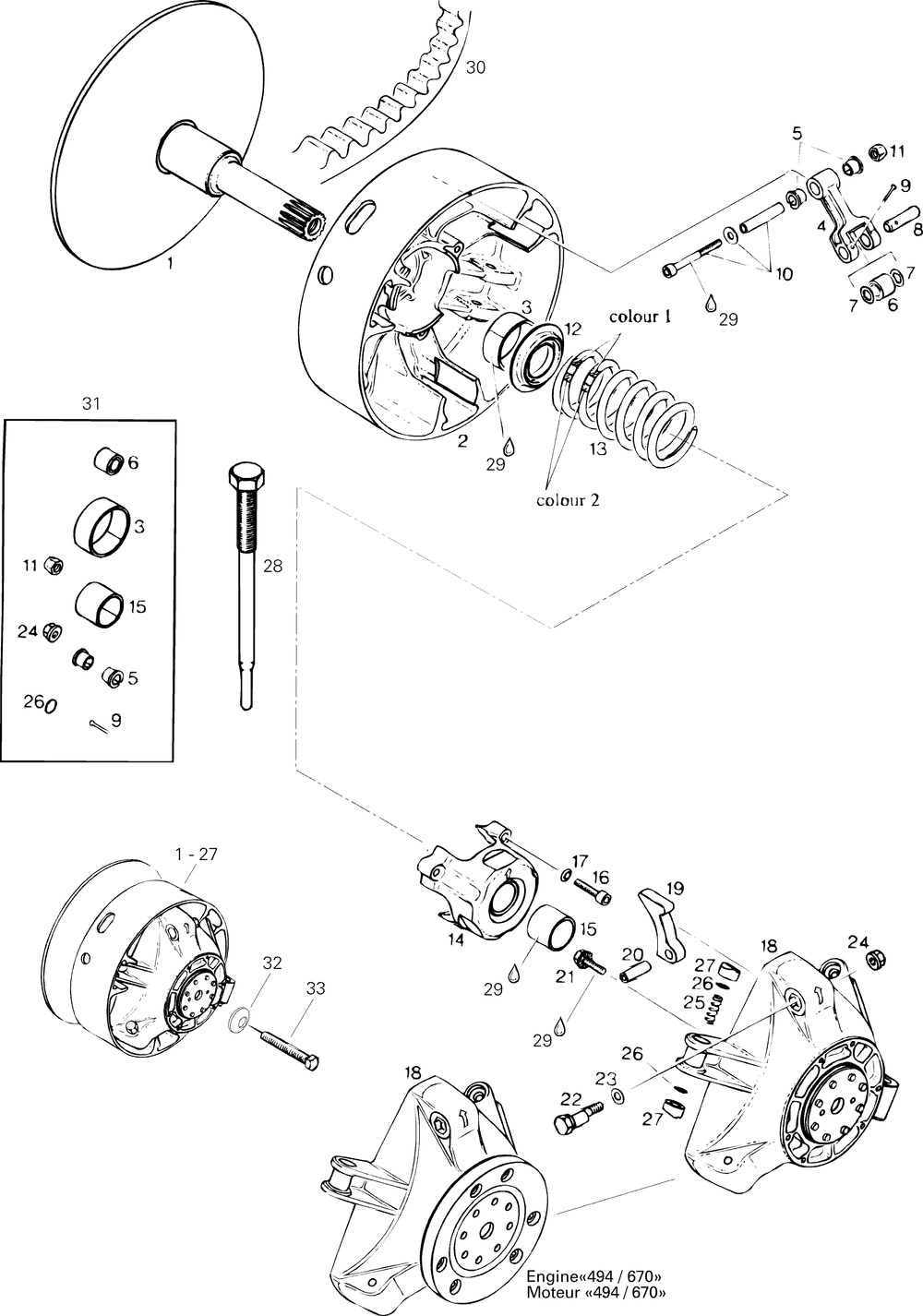

05- Drive Pulley 670SE

№	Наименование	Кол-во
1	FLASQUE FIXE US*FLANGE-FIX.MACH	1
2	SLIDING FLANGE ASStahos_Y Includes 2 to 3	1
3	DOUILLE *BUSHING	1
4	LEVER ASStahos_Y Includes 4 to 5 (3.000 per pack)	3
5	BUSHING (6.000 per pack)	6
6	ROLLER (3.000 per pack)	3
7	STOPPER WASHER (6.000 per pack)	6
8	GOUPILLE *PIN (3.000 per pack)	3
9	COTTER PIN (3.000 per pack)	3
10	SCREW ASStahos_Y Includes 10 to 11	3
11	NUT-STOP ELASTIC DIN.985 (10.000 per pack)	3
12	SPRING SEAT	1
13	RESSORT *CLUTCH SPRING	1
14	SPRING COVER ASStahos_Y Includes 14 to 15	1
15	BUSHING	1
16	SOCKET SCREW M6 X 40 (5.000 per pack)	3
17	RONDELLE *WASHER (10.000 per pack)	3
18	GOVERNOR CUP ASStahos_Y	1
20	PIN M8 X 24 (10.000 per pack)	3
21	HEX. FORMING SCREW M6 X 18 (10.000 per pack)	6
22	CALIBRATION SCREW	3
24	HEX. FLANGED NUT M6 (10.000 per pack)	3
25	SPRING (6.000 per pack)	3
26	O-RING (6.000 per pack)	6
27	SLIDER SHOE (6.000 per pack)	6
28	PULLER INNER HALF	1
29	LOCTITE 648 10 ML Formula Deluxe 500 LC. Formula Deluxe 670.	0
30	COURROIE *BELT-DRIVE	1
31	ENS.REP.EMB. *KIT-CLUTCH REP	1
32	SPRING WASHER 14 MM (10.000 per pack)	1
33	DRIVE PULLEY BOLT	1
