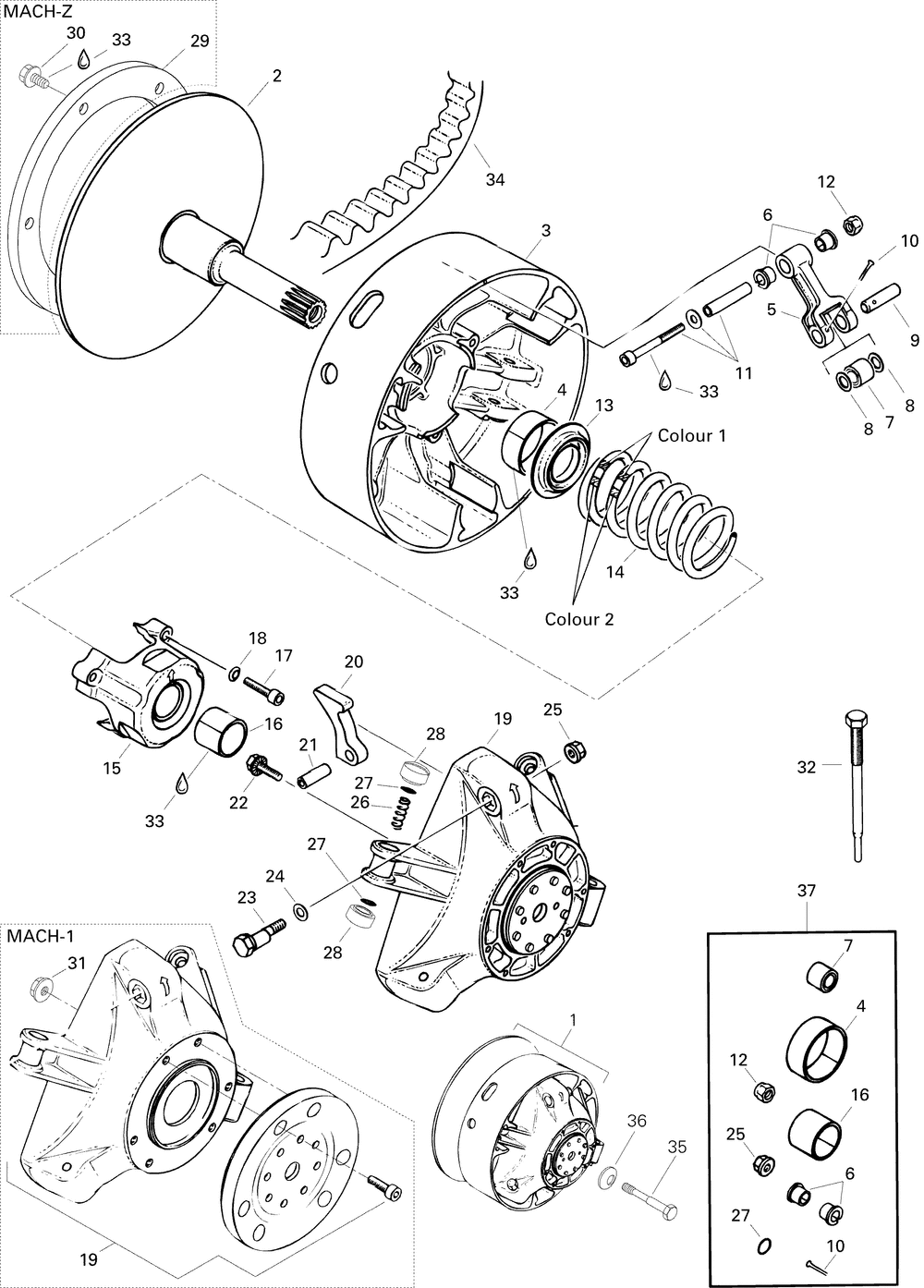

05- Drive Pulley Mach Z LT

№	Наименование	Кол-во
2	FLASQUE FIXE US*FLANGE-FIX.MACH	1
3	SLIDING FLANGE ASStahos_Y Includes 2 to 3	1
4	DOUILLE *BUSHING	1
5	LEVER ASStahos_Y Includes 4 to 5 (3.000 per pack)	3
6	BUSHING (6.000 per pack)	6
7	ROLLER (3.000 per pack)	3
8	STOPPER WASHER (6.000 per pack)	6
9	GOUPILLE *PIN (3.000 per pack)	3
10	COTTER PIN (3.000 per pack)	3
11	SCREW ASStahos_Y Includes 10 to 11	3
12	NUT-STOP ELASTIC DIN.985 (10.000 per pack)	3
13	SPRING SEAT	1
14	SPRING GREEN/VIOLET 800R Power TEK	1
15	SPRING COVER ASStahos_Y Includes 14 to 15	1
16	BUSHING	1
17	SOCKET SCREW M6 X 40 (5.000 per pack)	3
18	RONDELLE *WASHER (10.000 per pack)	3
20	RAMPE *RAMP (3.000 per pack)	3
21	PIN M8 X 24 (10.000 per pack)	3
22	HEX. FORMING SCREW M6 X 18 (10.000 per pack)	6
23	CALIBRATION SCREW	3
25	HEX. FLANGED NUT M6 (10.000 per pack)	3
26	SPRING (6.000 per pack)	3
27	O-RING (6.000 per pack)	6
28	SLIDER SHOE (6.000 per pack)	6
30	SCREW-TAPTITE M6 X 12 (5.000 per pack)	6
32	PULLER INNER HALF	1
33	LOCTITE 648 10 ML Formula Deluxe 500 LC. Formula Deluxe 670.	0
34	COURROIE *BELT-DRIVE	1
35	DRIVE PULLEY BOLT	1
36	SPRING WASHER 14 MM (10.000 per pack)	1
37	ENS.REP.EMB. *KIT-CLUTCH REP	1
