SKI-DOO RENEGADE - 2-STROKE - 600 CARB_600HO E-TEC_800R E-TEC RENEGADE - 2-STROKE - 600 CARB_600HO E-TEC_800R E- 09- Frame - 146

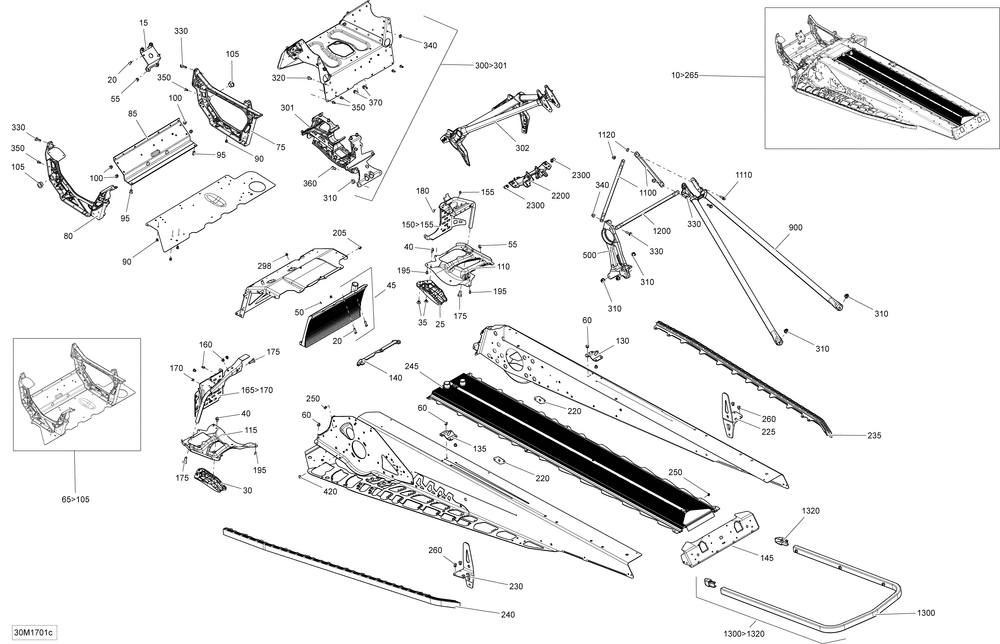

09- Frame - 146
№ Наименование Примечание Кол-во
15>20 MAG ENGINE SUPPORT 1
20 CLINCH STUD M6 X 20 2
25 RH DEFLECTOR 1
30 LH DEFLECTOR 1
35 Pop Rivet 3/16" 4
40 Hex. Flanged Screw M6 X 12, Scotch Grip 2
45 FRONT RADIATOR 1
50 AVIBULB *AVIBULB 0
55 HEMLOCK RIVET 6.5 MM (5.000 per pack) 2
60 HEMLOCK RIVET 6.4 MM (10.000 per pack) 1
65>105 FRONT E MODULE 1
75 RH MEMBER 1
80 LH MEMBER 1
85 FRONT MEMBER 1
90 STAVEX RIVET (20.000 per pack) 6
95 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
105 BUSHING 2
110 RENFORT DR *REINFORCEMENT 1
115 RENFORT GA *REINFORCEMENT 1
130 RH REAR BASE 1
135 LH REAR BASE 1
140 JOINT *SEAL 1
145 REAR CAP 1
150>155 ETRIER DROIT *RH.STIRUP 1
155 AVEX RIVET (50.000 per pack) 1
160 INSERT 1
165>170 ETRIER GA *LH.STIRUP 1
175 SCREW-PAN HD.TORX M8X25 SCOTCH GRIP 3
180 FULL MOON DART 5 MM 1
195 AVEX RIVET (50.000 per pack) 4
205 HENROB RIVET (10.000 per pack) 12
225 RH SUSPENSION BRACKET 1
230 LH SUSPENSION BRACKET 1
235 RH ROLLER 1
240 LH ROLLER 1
245>250 REAR RADIATOR ASS Y 146" 1
260 HEMLOCK RIVET (10.000 per pack) 6
298 Pop Rivet 3/16" 3
301>302 MODULE S *CROSS MEMBER 1
302 FRONT SUSPENSION SUPPORT 1
305 FRONT MEMBER 1
310 Hex. Flanged Elastic Nut M8 2
320 SCREW-FORMING HEX.HD.FL. M6 X 16 2
330 Hex. Flanged Screw M6 X 25 2
340 Hex. Flanged Elastic Nut M6 2
350 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
360 MONOBOLT RIVET 6.4 (2.000 per pack) 2
370 Hex. Flanged Screw M6 X 16 2
420 BLACK DART 5 MM 3
500 DRIVEN PULLEY SUPPORT 1
900 REAR MEMBER 1
1100 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
1110 Hex. Flanged Screw M6 X 20 2
1120 Elastic Flanged Nut M6 X 1.0 2
1200 CENTER COLUMN SUPPORT 1
1300 BLACK REAR BUMPER 146" North America 1
1310 BLACK REAR BUMPER 146" Europe 1
1320 BLACK RH CAP Europe Model 1
1330 BLACK LH CAP Europe Model 1
1340 BLACK CAP North America Model 2
1400 BLACK DART 8 MM 3
1405 Black Dart 10 mm 2
2200 SUB A SUPPORT 1
2300 PANEL NUT M5 X 0.8 (10.000 per pack) 2
6000 TORX-TRUSS M/S N.PATCH M6 X 18 10
6001 FLAT WASHER (10.000 per pack) 6
