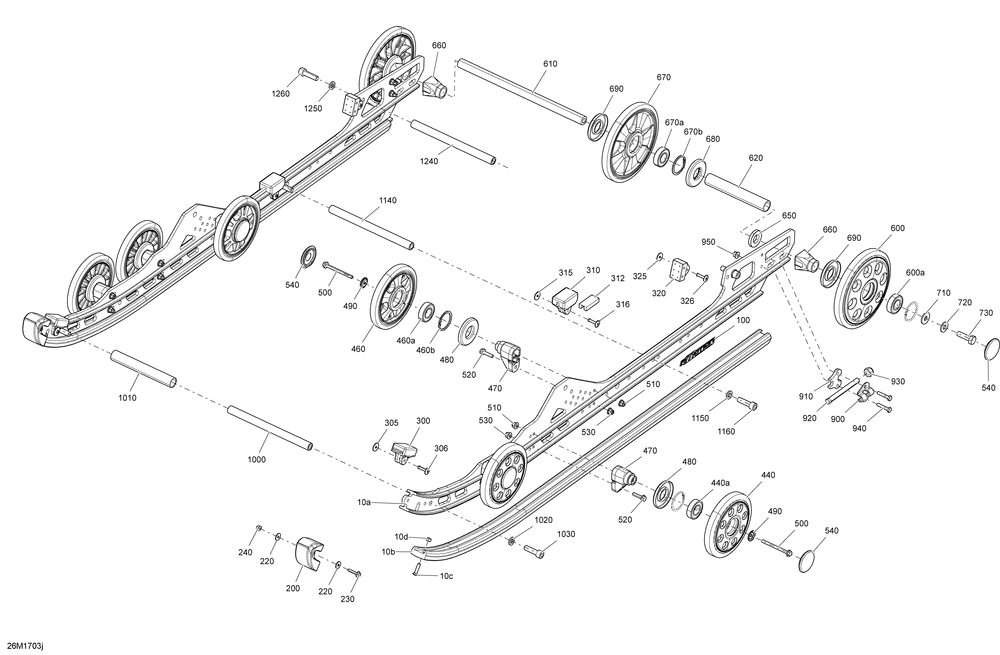

08- Rear Suspension - rMotion - Package X

08- Rear Suspension - rMotion - Package X - Inferior

№	Наименование	Кол-во
10a	BLACK RUNNER 137"	1
10a	RUNNER PAINT	1
10a	RUNNER PAINT	1
10b	BLACK SLIDER SHOE 137	1
10c	PHILLIPS SCREW M6 X 25 (4.000 per pack)	1
10d	Elastic Stop Nut M6	1
100	RUNNER DECAL	2
200	SLIDE PROTECTOR	2
220	RONDELLE *WASHER (4.000 per pack)	4
230	HEX. FLANGED SCREW M5 X 25	2
240	FLANGED ELASTIC NUT M5 (4.000 per pack)	0
300	RUBBER STOPPER	2
305	RONDELLE * WASHER (6.000 per pack)	2
306	POP RIVET 3/16"	2
310	RUBBER STOPPER	1
312	REINFORCEMENT STOPPER	1
320	RUBBER STOPPER	2
440	DEEP BLACK WHEEL ASS Y 147 MM	4
440a	BALL BEARING	4
460	DEEP BLACK WHEEL ASS Y 147 MM	2
460b	RETAINING RING	1
470	CASTED SUPPORT	6
480	LABYRINTH SEAL	6
490	WHEEL CUP M6	6
500	HEX. FLANGE SCREW M6 X 70	6
510	Hex. Flanged Elastic Nut M6	6
520	HEX. FLANGE SCREW M6 X 25	6
540	BLACK WHEEL CAP	6
600	DEEP BLACK WHEEL ASS Y 180 MM	2
610	REAR AXLE	1
620	SPACER	1
650	RONDELLE *WASHER	1
660	REAR WHEEL SPACER	3
670	DEEP BLACK WHEEL ASS Y 180 MM	1
680	LABYRINTH SEAL	2
710	RONDELLE *WASHER (3.000 per pack)	2
720	CONICAL SPRING WASHER 10 MM (10.000 per pack)	2
730	SCREW-HEX.CAP WITH NYLON PATCH	2
900	TENSIONER	2
910	SPACER	2
920	HEX SCREW M10 X 100	2
930	Elastic Locking Nut M10	2
940	HEX. CAP SCREW M6 X 30 (2.000 per pack)	4
1000	AXLE STRAP	1
1010	SPACER	1
1020	Washer	2
1030	SOCKET HEAD SCREW M10 X 35	2
