SKI-DOO SUMMIT - 850 E-TEC SUMMIT - 850 E-TEC 08- Rear Suspension - With Ice Scratcher - Superior

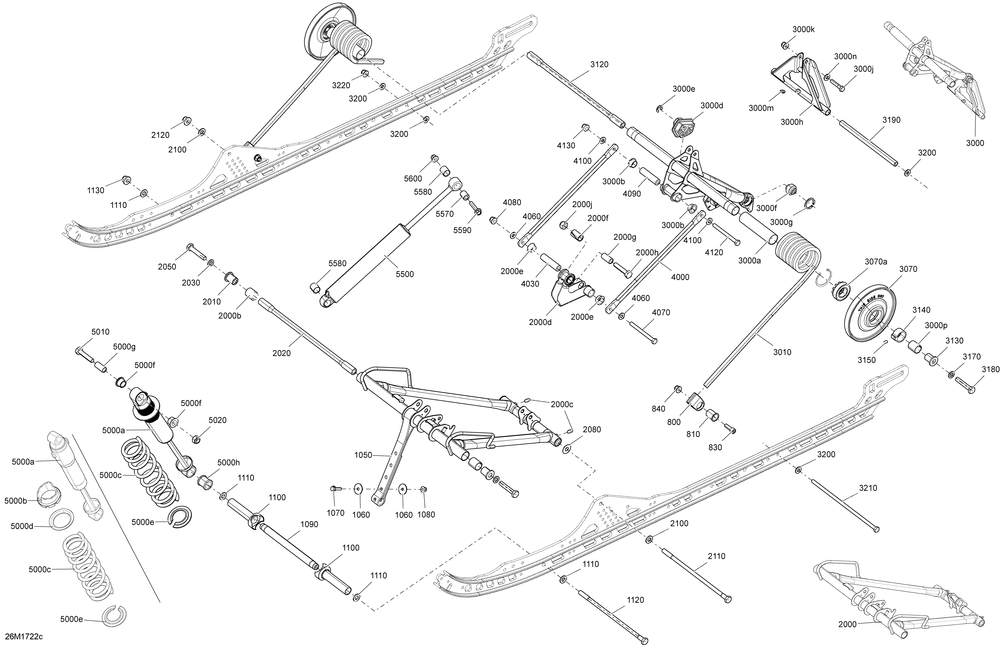

08- Rear Suspension - With Ice Scratcher - Superior
№ Наименование Примечание Кол-во
800 SPRING SUPPORT 2
810 RETAINER CUSHION (2.000 per pack) 2
830 SOCKET SCREW M8 X 25 (2.000 per pack) 2
840 NUT-FLANGE ELASTIC DIN.6926 2
1050 STOPPER STRAP 1
1060 Washer 2
1070 HEX FLANGED SCREW M6 X 30 1
1080 Hex. Flanged Elastic Nut M6 1
1090 PIVOT AXLE 1
1100 ENTRETOISE *SPACER 2
1110 FLAT WASHER 4
1120 BOLT M10 X 251MM 1
1130 Flanged Elastic Nut M10 1
2000 FRONT ARM ASS. Includes 2000 to 2000j 1
2000b EXTENDED BUSHING 2
2000c GREASE FITTING (10.000 per pack) 2
2000d ROCKER 1
2000e SWIVEL BUSHING 2
2000f COUSSINET *CUSHION 1
2000g Bushing 1
2000h HEX. SCREW M10 X 50 (10.000 per pack) 1
2000j ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
2010 BUSHING 2
2010 COUSSINET *BUSHING 2
2020 UPPER SHAFT 1
2030 Washer 2
2050 HEX. SCREWS.GRIP M10 X 55 2
2080 RONDELLE *WASHER (10.000 per pack) 2
3000 BRAS ARRIERE AS*REAR ARM ASS. Includes 3000 to 3000q 1
3000a BUSHING 2
3000d LH CAM ADJUSTER 1
3000d RH CAM ADJUSTER 1
3000e E-Circlip 2
3000f ROTULE RADIALE *RADIAL JOINT 1
3000g CIRCLIP INT. *CIRCLIP-INT. 1
3000h PIVOT ARM 1
3000j HEXAGONAL SCREW M8 X 40 1
3000n Washer 1
3010 BLACK RH SPRING SQUARE Except Package-BURTON 1
3010 BLACK LH SPRING SQUARE Except Package-BURTON 1
3070 ROUE 155 *WHEEL-155 Includes 3070 to 3070a 2
3070a ROULEMENT BILLE*BALL BEARING 1
3140 RETAINING RING 2
3150 SOCKET SET SCREW M6 X 8 (5.000 per pack) 2
3190 PIVOT ARM AXLE 1
3210 BOLT M8 X 248MM 1
4000 ACCELERATION LINK ROD 2
4030 AXLE 1
4070 SCREW M8 X 90 1
5000a CENTER SHOCK Package-Backcountry 1
5000a CENTRAL SHOCK Package-Backcountry X 1
5000b ADJUSTEMENT CAM 1
5000c BLACK SPRING Package-Backcountry 1
5000c RESSORT PEINT *SPRING-PAINT Package-Backcountry X 1
5000d SPRING GUIDE 1
5000e BUTEE RESSORT *STOPPER-SPRING Package Backcountry X 1
5000f Bushing Urethane 2
5000h COUSSINET URETH*CUSHION-URETH. 1
5020 Elastic Locking Nut M10 1
5500 REAR SHOCK Package-X 1
5500 REAR SHOCK Package-SP-T3 Except 174" 1
5570 REAR SHOCK AXLE 1
5580 BUSHING 2
5590 Hex. Flanged Screw M8 X 40 1
