SKI-DOO EXPEDITION - 4-STROKE - LE-SE EXPEDITION - 4-STROKE - LE-SE 08- Rear Suspension - B

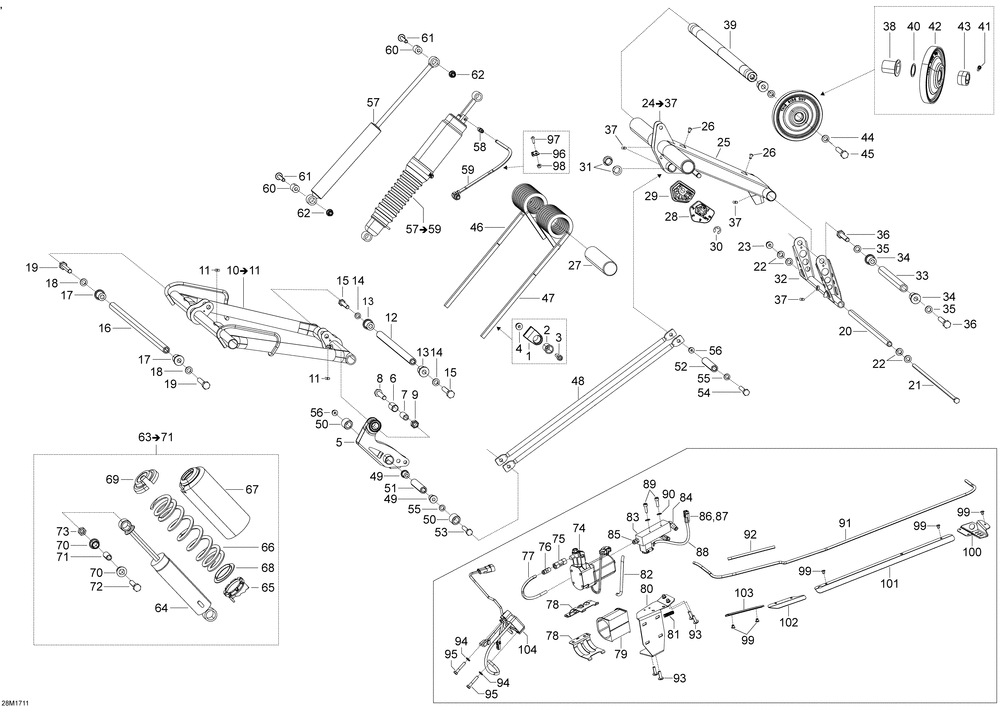

08- Rear Suspension - B
№ Наименование Примечание Кол-во
1 SPRING SUPPORT 2
2 RETAINER CUSHION (2.000 per pack) 2
3 Socket Head Screw M8 X 25 2
4 Hex. Flanged Elastic Nut M8 2
5 ROCKER 1
6 COUSSINET *CUSHION 1
7 Bushing 1
8 HEX. SCREW M10 X 50 (10.000 per pack) 1
9 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
10 FRONT ARM ASSY Includes 10 To 11 1
11 GREASE FITTING (10.000 per pack) 2
12 LOWER SHAFT 1
13 CUSHION (2.000 per pack) 2
14 Washer 2
15 HEX. SCREWS.GRIP M10 X 55 2
16 UPPER SHAFT 1
18 RONDELLE *WASHER (10.000 per pack) 2
20 AXLE PIVOT 1
21 BOLT 369MM 1
22 Washer 4
24 REAR ARM ASS Y Includes 24 To 36 1
25 REAR ARM P Model LE SE 1
26 DART GS Black A19N Model (10.000 per pack) 2
28 LH CAM ADJUSTER 1
29 RH CAM ADJUSTER 1
30 E-Circlip 2
31 SWIVEL BUSHING 2
32 WELDED ARM PIVOT 1
33 LOWER SHAFT 1
34 CUSHION 2
35 RONDELLE *WASHER (5.000 per pack) 2
36 SOCKET HEAD SCREW M12 X 35 2
38 CUSHION 2
39 UPPER SHAFT 1
40 RONDELLE *WASHER 2
41 SOCKET SET SCREW M6 X 8 (5.000 per pack) 2
42 WHEEL 165 Model-Extreme 2
43 RETAINING RING Model-Extreme 2
44 RONDELLE *WASHER (5.000 per pack) 2
45 SOCKET SCREW M12 X 35 (2.000 per pack) 2
46 BLACK RH SQUARE SPRING 1
47 BLACK LH SQUARE SPRING 1
48 TIGE ACCEL *LINK ROD Model-LE 2
48 TIGE ACCEL *LINK ROD Model-SE 2
50 SPACER Model-SE 2
51 AXLE BAR (LONG) Model-LE 1
51 BAR AXLE (SHORT) Model-SE 1
53 HEX. SCREW M8 X 90 Model-LE (5.000 per pack) 1
53 HEX. SCREW M8 X 130 Model-SE 1
57 REAR SHOCK ASS Y Includes 55 To 57 Model-SE 1
57 REAR SHOCK Model-LE 1
58 MALE PNEUMATIC CONNECTOR 1
59 PNEUMATIC HOSE ASS Y 1
60 CUSHION Model-LE & SE (2.000 per pack) 2
61 Hex. Flanged Screw M8 X 40 2
64 CENTER SHOCK Model-North America 1
64 CENTER SHOCK Model-Europe 1
65 ADJUSTEMENT CAM 1
66 BLACK SPRING 1
67 PROTECTOR 1
68 SPRING GUIDE 1
69 SPRING STOPPER Model-Europe 1
69 Spring Stopper 1
70 Bushing Urethane 2
74 Compressor 1
75 CHECK VALVE Model-SE 1
76 Connector 1
77 Hose 1
78 Compressor Bracket 2
79 Compressor Isolator 1
80 SUPPORT Model-SE 1
82 Tubing 6 mm  (3.000 per pack) 0
83 AIR MANIFOLD ASS Y Includes 82 To 87 Model-SE 1
84 ELBOW 90 2
86 MALE TERMINAL (10.000 per pack) 2
87 MALE TERMINAL HOUSING 2 CIRCUITS RTS 1
89 SOCKET HEAD SCREW M6 X 20 SCOTCH GRIP Model-SE (5.000 per pack) 2
90 FLAT WASHER 6 MM (10.000 per pack) 2
91 TUBE Model-SE 1
93 Torx Screw M6 X 20 4
95 Hex. Flanged Screw M6 X 35 2
96 CLAMP Model-SE 1
97 Screw-Torx Button Head M5 X 14 1
98 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
99 Rivet 3/16" 7
100 BRACKET Model-SE 1
101 HOSE PROTECTOR Model-SE 1
102 HOSE PROTECTOR Model-SE 1
103 HOSE PROTECTOR PAINTED Model-SE 1
104 COMPRESSOR MODULE Model-SE 1
