SKI-DOO EXPEDITION - 4-STROKE - LE-SE EXPEDITION - 4-STROKE - LE-SE 01- Engine Lubrication - 1200 4-TEC

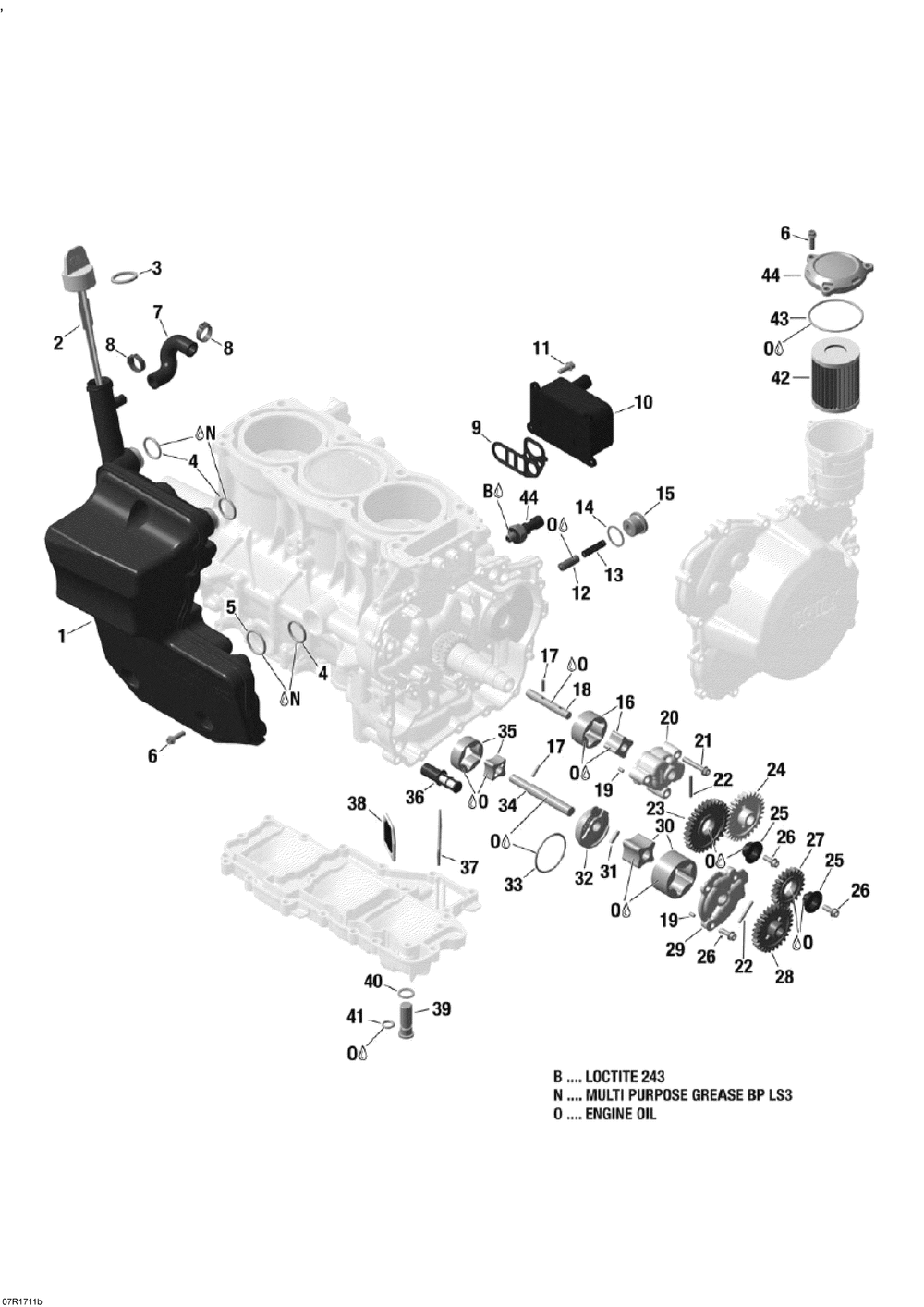

01- Engine Lubrication - 1200 4-TEC
№ Наименование Примечание Кол-во
1 OIL TANK ASS Y Includes 1 to 5 1
2 OIL LEVER TUBE ASS Y Includes 2 to 3 1
3 Gasket Ring 1
4 O-RING 3
5 O-RING 1
6 Flanged Torx Screw M6 X 20 6
7 AIR VENT LINE 1
8 CLAMP 2
9 JOINT ETANCHE *GASKET 1
10 RADIATEUR HUILE*OIL RADIATOR 1
11 Flanged Torx Screw M6 X 25 4
12 Pressure Regulating Piston 1
13 Spring 1
14 ANNEAU ETANCHE *GASKET RING 1
15 SCREW PLUG M22 X 1.5 1
16 Oil Pump Rotor Suction 1
17 Needle Pin 1
18 OIL PUMP SHAFT 1
19 Needle Pin 4
20 OIL PUMP HOUSING 1
21 Flanged Torx Screw M6 X 35 3
22 Needle Pin 2
23 IDLE GEAR 31 TEETH 1
24 Oil Pump Gear 29 Teeth 1
25 GRADUATED SPACER 2
26 Flanged Torx Screw M6 X 16 6
27 IDLE GEAR 22 TEETH 1
28 Oil Pump Gear 28 Teeth 1
29 OIL PUMP COVER 1
30 Oil Pump Rotor 1
31 Needle Pin 1
32 Oil Pump Cover 1
33 O-Ring 1
34 OIL PUMP SHAFT 1
35 Oil Pump Rotor Pressure 1
36 OIL SIEVE 1
37 OIL SIEVE 1
38 OIL SIEVE 1
39 SCREW PLUG M14 X 1.5 1
40 ANNEAU*GASKET RING 1
41 O-Ring 1
42 OIL FILTER 1
43 O-Ring 1
44 Oil Filter Cover 1
45 OIL PRESSURE SWITCH 1
