SKI-DOO RENEGADE - 2-STROKE - 600 CARB RENEGADE - 2-STROKE - 600 CARB 10- Electrical System

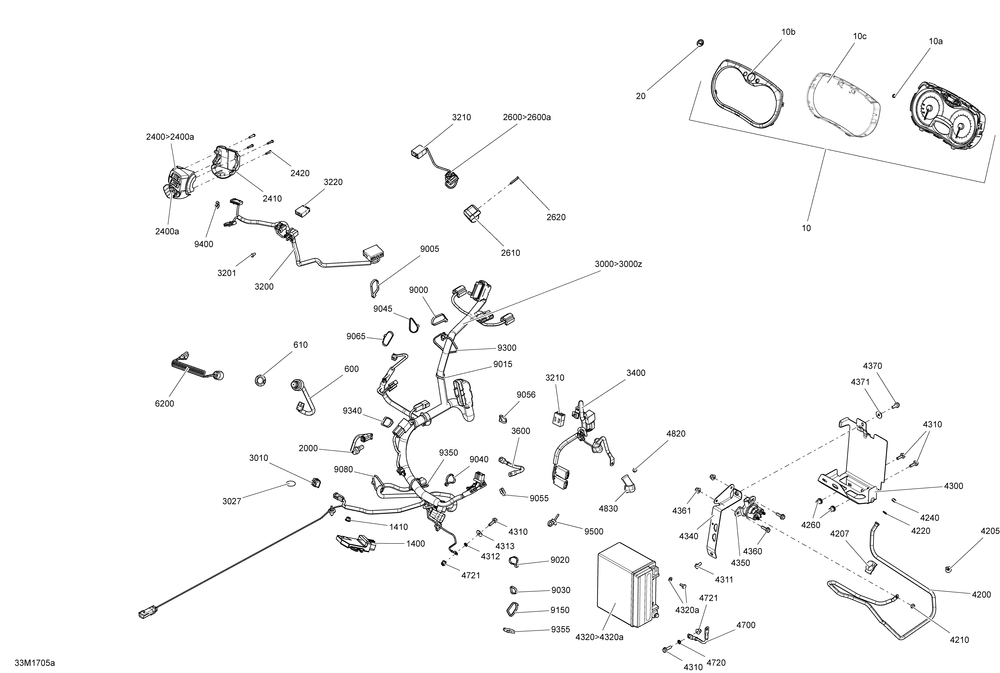

10- Electrical System
№ Наименование Примечание Кол-во
10>10c INDICATEUR *INDICATOR 1
10a SPEEDOMETER BUTTON RS STD 1
10b GAUGE RING 1
10c Lens 1
20 BRP Logo, 20 mm 1
600 DESS SWITCH Includes 6 To 9 1
610 Safety Nut (DESS Switch) 1
1400 VOLTAGE REGULATOR 1
1410 Hex. Flanged Elastic Nut M6 2
2000 CAPTEUR TEMP. *SENSOR-TEMP. 1
2010 LOCTITE 592 PIPE SEALANT 50 ML Package T 0
2400>2400a LH HOUSING 1
2400a START/RER BUTTON 1
2410 TORX SCREW tahos_8-18 (10.000 per pack) 4
2410 HOUSING SWITCH PLATE 1
2600>2600a KILL SWITCH Includes 43 To 44 1
2600a MALE TERMINAL (10.000 per pack) 2
2610 KILL SWITCH SUPPORT 1
3000>3000z CABLAGE ASS. *WIRING HARNESS Includes 1 To VSS 1
3000a FEMALE HOUSING 2 CIRCUITS 1
3000aa Female Terminal 1
3000ab CLIP 1
3000ac FUSE 20 AMPERES (5.000 per pack) 1
3000ad FUSE HOLDER 1
3000ae FEMALE TERMINAL (5.000 per pack) 1
3000ag FUSE 15 AMPERES (5.000 per pack) 1
3000ak MALE TERMINAL HOUSING 2 CIRCUITS RTS 1
3000an OPEN BARREL (10.000 per pack) 1
3000ap LOGEMENT FEMEL.*HOUSING-FEMALE 1
3000aq Terminal 1
3000at Female Terminal Housing, 1 Circuit 1
3000au Female Terminal 1
3000av Female Housing 24 Circuits 1
3000aw Retainer Block 1
3000ay Female Housing 1
3000az Wire Seal 1
3000b Female Terminal 1
3000bb Female Housing 1
3000bc Wire Seal 1
3000bd Female Terminal 1
3000be FEMALE HOUSING 5 CIRCUITS 1
3000bf RELAY 1
3000bg FEMALE TERMINAL (10.000 per pack) 1
3000bj CONNECTOR 1
3000bk JOINT *JOINT 1
3000bm TERMINAL 1
3000bn FEMALE TERMINAL HOUSING 13 CIRCUITS 1
3000bq Female Terminal 1
3000br LOGEMENT *HOUSING 1
3000bs Male Terminal 1
3000bu Housing 1
3000bv Wire Seal 1
3000bw Male Terminal 1
3000c FEMALE TERMINAL HOUSING 8 CIRCUITS 1
3000e Housing 6 Circuits 1
3000f Male Wedge 6 Circuits 1
3000g Female Terminal 1
3000h Female Terminal 1
3000j FEMALE HOUSING 4 CIRCUITS 1
3000k FEMALE WEDGE 4 CIRCUITS (10.000 per pack) 1
3000m MALE TERMINAL (10.000 per pack) 1
3000n MALE HOUSING 2 CIRCUITS 1
3000p MALE LOCK 2 CIRCUITS 1
3000r Female Housing, 3 Circuits 1
3000t FEMALE TERMINAL HOUSING 36 CIRCUITS 1
3000u TERMINAL SUPPORT 1
3000v Plug 1
3000w LOGEMENT FEMEL.*HOUSING-FEMALE 1
3000x PROTECTION CAP 1
3000y WIRE SEAL 1
3000z Female Terminal 1
3010 LOCK 1
3027 ADHESIVE PATCH 1
3200 STEERING WIRING HARNESS 1
3201 PAN SCREW FORMING 7500C 1
3210 MALE TERMINAL HOUSING 8 CIRCUITS 1
3220 MALE TERMINAL HOUSING 6 CIRCUITS 1
3400 CABLAGE *HARNESS 1
3600 GROUND WIRE 1
4200 BATTERY/STARTER WIRE 1
4207 CLIP 1
4210 Elastic Stop Nut M6 1
4220 FLAT WASHER 6 MM (10.000 per pack) 1
4260 Insert 2
4300 SUPPORT *SUPPORT 1
4310 Hex. Flanged Screw M6 X 20 1
4311 Hex. Flanged Screw M6 X 12 1
4312 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
4313 Flat Washer 1
4320>4320a BATTERY ASS Y 18 AMPERES 1
4320a Battery Bolt Kit 1
4340 LANIERE BATTERI*STRIP-BATTERY 1
4350 Starter Relay 1
4361 Elastic Flanged Nut M6 X 1.0 2
4370 Hex. Flanged Screw M6 X 16 1
4371 FLAT WASHER (10.000 per pack) 1
4700 GROUND WIRE 1
4720 Lock Washer Serrated M6 1
4830 PROTECTOR CAP 1
6200 CAPUCHON DESS *CAP-DESS. 1
9000 Tie-Rap 180 mm 1
9020 Tie-Rap 350 mm 1
9400 Tie-Rap 142 mm 1
9410 Tie-Rap 94 mm 1
9500 Tie-Rap 173 mm 1
