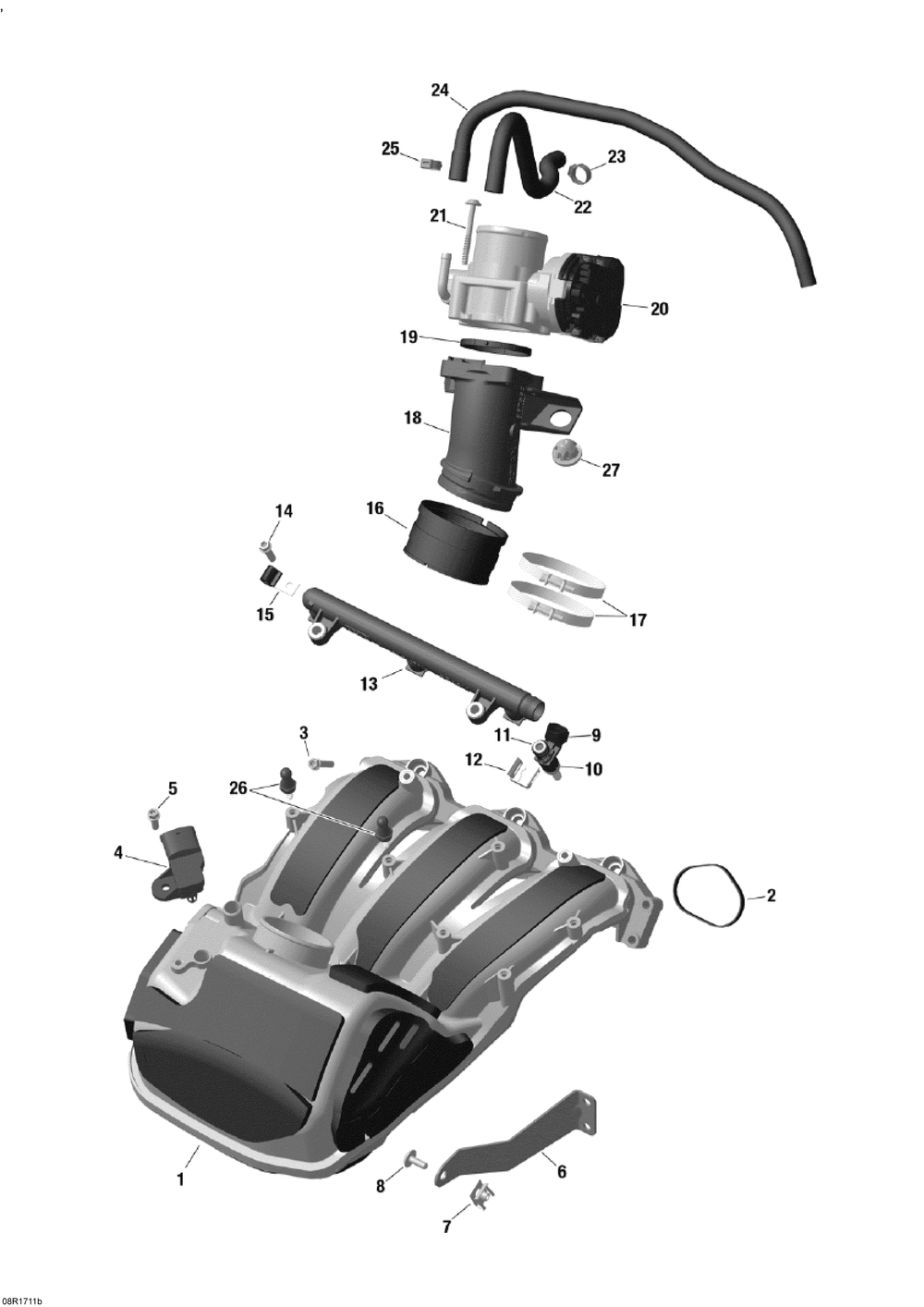

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | AIR INTAKE MANIFOLD Includes 1 to 2 | 1 | |
| 2 | JOINT ETANCHE *GASKET | 3 | |
| 3 | Flanged Torx Screw M6 X 30 | 6 | |
| 4 | Pressure And Temperature Sensor | 1 | |
| 5 | Flanged Torx Screw M6 X 16 | 1 | |
| 6 | SUPPORT | 1 | |
| 7 | PANEL NUT M6 X 1 | 1 | |
| 8 | TORX SCREW M6 X 16 | 2 | |
| 9 | INJECTION VALVE ASS Y Includes 10-11 | 3 | |
| 10 | O-Ring | 3 | |
| 11 | O-Ring | 3 | |
| 12 | Clip | 3 | |
| 13 | FUEL RAIL | 1 | |
| 14 | Flanged Torx Screw M6 X 25 | 2 | |
| 15 | CABLE CLAMP | 1 | |
| 16 | FLANGE *INTAKE NECK | 1 | |
| 17 | CLAMP | 2 | |
| 18 | CONNECTING TUBE | 1 | |
| 19 | JOINT CULASSE *GASKET-CYL.HD. (6.000 per pack) | 1 | |
| 20 | THROTTLE BODY | 1 | |
| 21 | Flanged Torx Screw M6 X 50 | 4 | |
| 22 | MOLDED HOSE | 1 | |
| 23 | CLAMP | 1 | |
| 24 | MOLDED HOSE GT LE - Renegade Enduro | 1 | |
| 25 | Oetiker Clamp | 1 | |
| 26 | VIS *SCREW | 2 | |
| 27 | CAPUCHON *RUBBER CAP | 2 |
