SKI-DOO MXZ - 2-STROKE - 600 CARB_600HO E-TEC_800R E-TEC MXZ - 2-STROKE - 600 CARB_600HO E-TEC_800R E-TEC 08- Rear Suspension - rMotion - Package Iron Dog - Superior

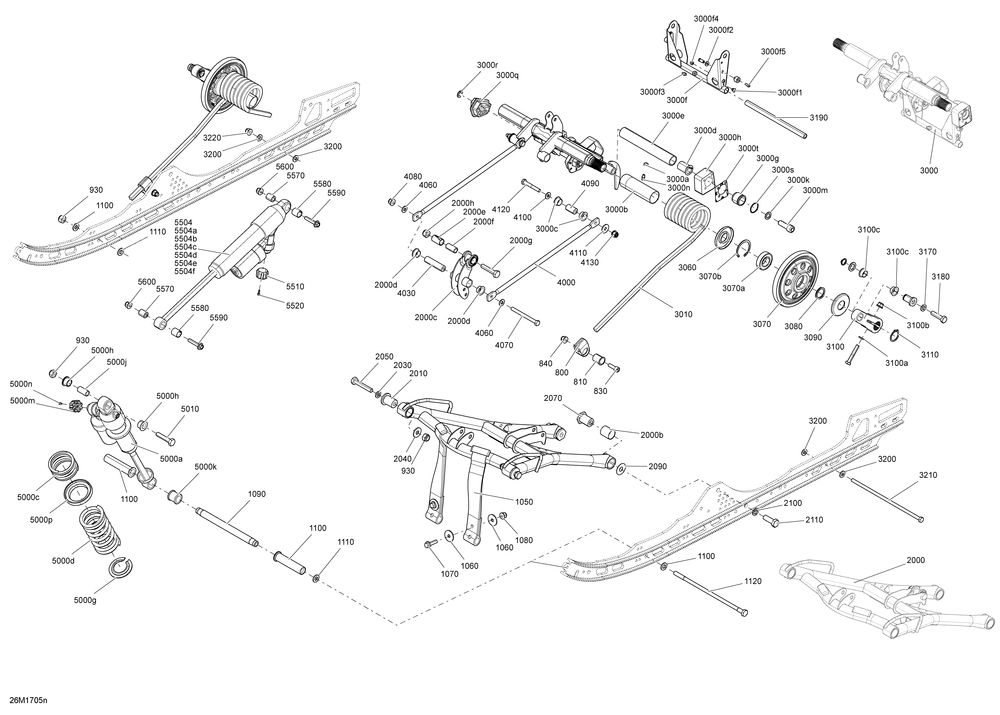

08- Rear Suspension - rMotion - Package Iron Dog - Superior
№ Наименование Примечание Кол-во
800 SPRING SUPPORT 2
810 RETAINER CUSHION (2.000 per pack) 2
830 SOCKET SCREW M8 X 25 (2.000 per pack) 2
840 NUT-FLANGE ELASTIC DIN.6926 2
1050 STOPPER STRAP 1
1060 FLAT WASHER 8 MM 4
1070 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 1
1090 PIVOT AXLE 1
1100 ENTRETOISE *SPACER 2
1110 FLAT WASHER 4
1120 BOLT M10 X 251MM 1
2000 BRAS AVANT *FRONT ARM 1
2000b COUSSINET *BUSHING 4
2000c CULBUTEUR SOUDE*ROCKER-WELD. 1
2000d SWIVEL BUSHING 2
2000e COUSSINET *CUSHION 1
2000f Bushing 1
2000g HEX. SCREW M10 X 50 (10.000 per pack) 1
2000h ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
2010 AXE *AXLE 2
2030 Washer 2
2040 RONDELLE *WASHER (4.000 per pack) 2
2050 Hex. Cap Screw M10 X 60 2
2070 LOWER AXLE 2
2090 RONDELLE *WASHER (5.000 per pack) 2
2100 RONDELLE *WASHER (5.000 per pack) 2
2110 HEX. CAP SCREW M12 X 35 (5.000 per pack) 2
3000 BRAS ARR. ASS. *REAR ARM ASSY 1
3000a NUT-HEXAGONAL DIN.934 (25.000 per pack) 1
3000b BUSHING 2
3000d CUSHION 2
3000e AXE INFERIEUR *SHAFT-LOWER 1
3000f PIVOT ARM ASS Y 1
3000f1 Pop Rivet 3/16" 2
3000f2 FLAT WASHER (10.000 per pack) 2
3000f3 GREASE FITTING (10.000 per pack) 1
3000f4 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
3000f5 SOCKET HEAD SCREW M4X 10 2
3000g GUIDE BLOCK 2
3000h RH CAM BLOCK 1
3000h LH CAM BLOCK 1
3000k RONDELLE *WASHER (25.000 per pack) 2
3000m SOCKET HEAD SCREW M12 X 35 2
3000q RH CAM ADJUSTER 1
3000q LH CAM ADJUSTER 1
3000r E-Circlip 2
3000s O-RING 2
3000t RH BLOCK STICKER DECAL 1
3000t LH BLOCK STICKER DECAL 1
3010 BLACK RH SPRING SQUARE Package Backcountry X Europe 1
3010 BLACK LH SPRING SQUARE Package Backcountry X Europe 1
3060 LABYRINTH SEAL 2
3070 BLACK WHEEL ASS Y 155 MM 2
3070a ROULEMENT BILLE*BALL BEARING 1
3070b RETAINING RING 1
3080 AXLE SPRING 2
3090 LABYRINTH RING 2
3100 LINK ASS Y Includes 3100 to 3100c 2
3100a Washer 1
3110 RETAINING RING 2
3180 CAP SCREW HEX. M10 X 40 2
3190 PIVOT ARM AXLE 1
3210 BOLT M8 X 248MM 1
4000 TIGE ACCEL. *LINK ROD 2
4030 AXLE BAR (LONG) Model-LE 1
4070 SCREW M8 X 90 1
4090 AXE BARRE *AXLE-BAR 2
4110 Flat Washer 8 mm 2
4120 HEX. SCREW M8 X 55 2
5000a CENTER SHOCK 1
5000c DEEP BLACK SPRING (SHORT) 1
5000d BLACK SPRING (SHORT) 1
5000g BUTEE RESSORT *STOPPER-SPRING Package Backcountry X 1
5000h Bushing Urethane 2
5000k COUSSINET URETH*CUSHION-URETH. 1
5000m SHOCK ADJUSTER KNOB 1
5000n Allen Screw M3 X 0.5 X 10 1
5000p SPRING SPACER 1
5504 AMORTISSEUR *REAR SHOCK 1
5504a O-RING 1
5504b PISTON RING 1
5504c AIR VALVE 1
5504d SCREW *VIS 1
5504e O-RING 1
5504f O-RING 1
5520 SOCKET SCREW M3 X 10 Package Backcountry X (5.000 per pack) 0
5570 REAR SHOCK AXLE 2
5580 BUSHING 2
5590 Hex. Flanged Screw M8 X 40 2
