SKI-DOO FREERIDE 850 E-TEC FREERIDE 850 E-TEC 07- Steering Freeride - 850 E-TEC

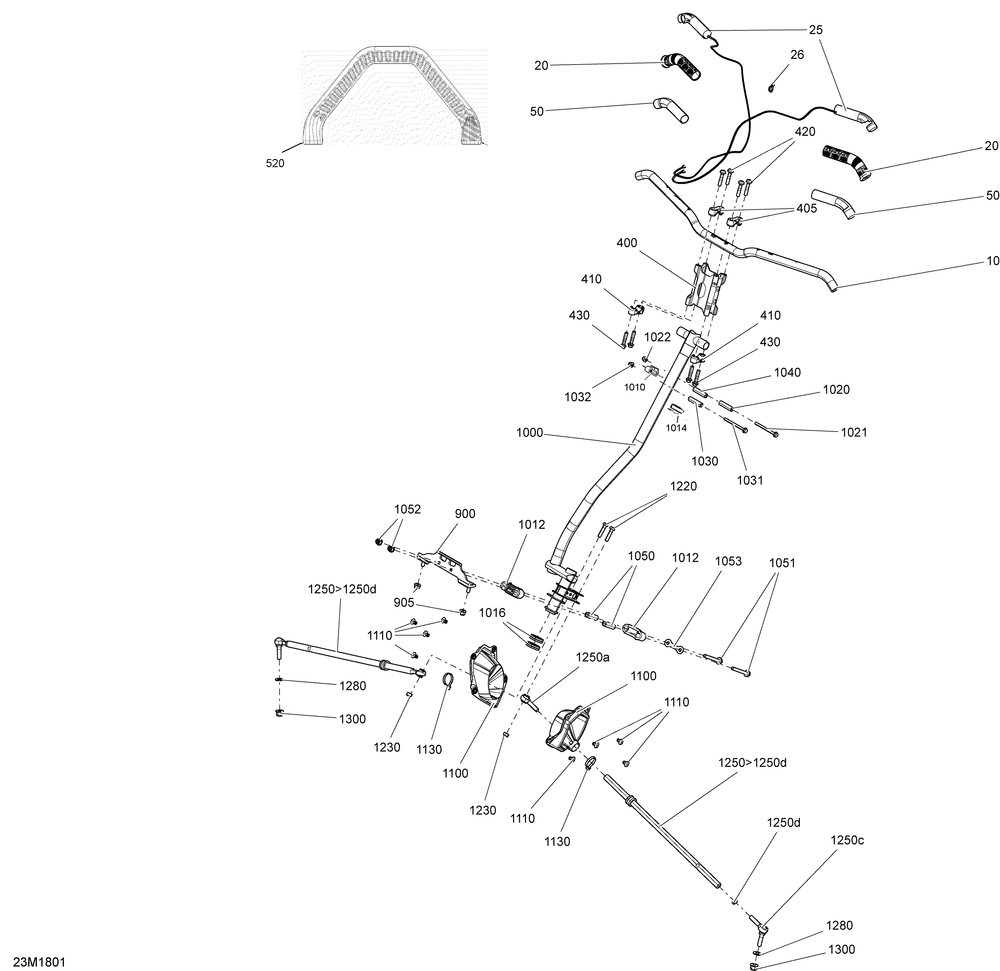

07- Steering Freeride - 850 E-TEC
№ Наименование Примечание Кол-во
10 MANTA GREEN HANDLE BAR 1
20 GRIP 148MM 2
25 HEATED FILM 2
26 Tie-Rap 142 mm 1
50 ISOLANT *ISOLANT 2
400 RISER KIT 165 Riser 165 1
400 RISER Riser 145 1
405 SUPPORT 1
406 STEERING SUPPORT 1
410 STEERING SUPPORT 2
420 TORX BUTTON HEAD SCREW M8 X 38 4
430 SCREW HEXAGONAL FLANGE M8 X 40 4
520 MOULDING STRAP ASS Y 1
540 TORX-TRUSS M/S N.PATCH M6 X 18 2
900 PLATE 1
905 Hex. Elastic Flanged Nut M8 2
1000 TUBE-MAIN WELD 1
1010 UPPER HALF-HOUSING 2
1012 LOWER HALF-HOUSING 2
1014 UPPER ANTI-VIBRATION GASKET 1
1016 LOWER VIBRATION RING 2
1020 HOUSING BUSHING 1
1021 SCREW-HEX.FLANGE DIN.6921 1
1022 Elastic Flanged Nut M6 X 1.0 1
1050 HOUSING BUSHING 2
1051 HEX. FLANGED SCREW M8 X 70 2
1053 STOPPER PLATE 1
1100 BOOT 2
1110 POP RIVET 3/16" (10.000 per pack) 10
1130 Tie-Rap 180 mm 2
1220 HEX. SCREW M8 X 35 (10.000 per pack) 2
1230 Hex. Elastic Stop Nut M8 2
1250 ROD ASS Y VCJD - VCJF Includes 1250 to 1250d 2
1250 ROD ASS Y Ski Stance 35-37 Includes 1250 to 1250d 2
1250 ROD ASS Y Ski Stance 38-40 Includes 1250 to 1250d 2
1250a JOINT ROTULE *BALL JOINT 1
1250b LH HEX. JAM NUT M10 (10.000 per pack) 1
1250c RH BALL JOINT 1
1250d RH Hex. Jam Nut M10 1
1280 Washer 2
1300 Hex. Elast. Flanged Nut M10 2
