SKI-DOO FREERIDE 850 E-TEC FREERIDE 850 E-TEC 08- Suspension Rear Freeride - Package 146 - Inferior

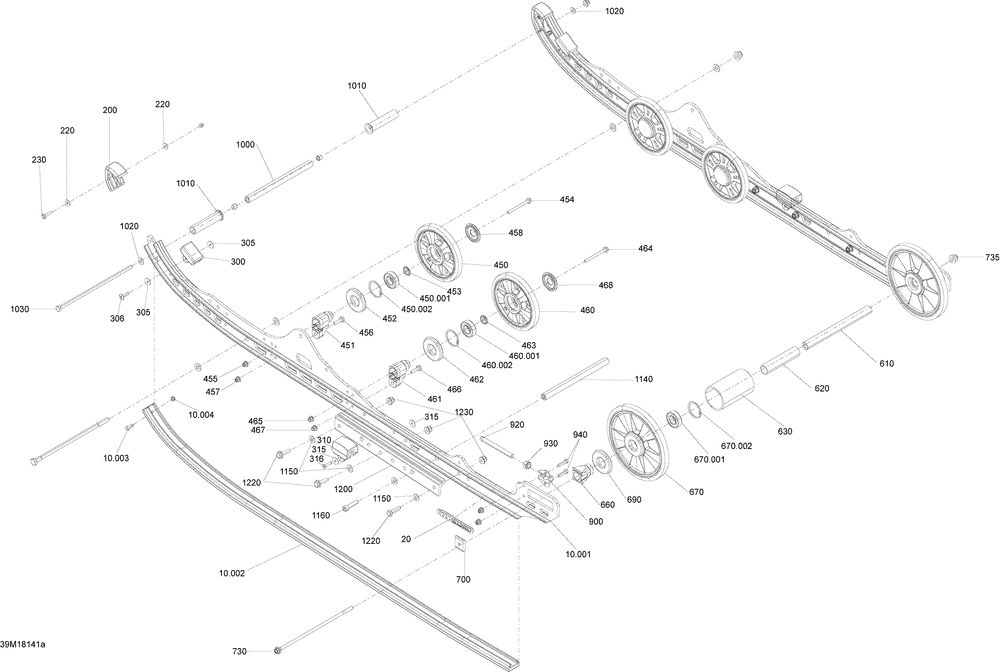

08- Suspension Rear Freeride - Package 146 - Inferior
№ Наименование Примечание Кол-во
10.001 BLACK RUNNER 146" 1
10.002 SLIDER SHOE 146" 1
10.003 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
10.004 Elastic Stop Nut M6 1
20 RUNNER DECAL 2
200 RUNNER PROTECTOR 2
220 RONDELLE *WASHER (4.000 per pack) 4
230 HEX. FLANGED SCREW M5 X 25 2
300 RUBBER STOPPER 2
305 RONDELLE * WASHER (6.000 per pack) 6
306 POP RIVET 3/16" 2
310 RUBBER STOPPER 2
316 POP RIVET 3/16" (10.000 per pack) 2
450 BLACK WHEEL ASS Y 152 MM 2
450.001 BALL BEARING 1
450.002 RETAINING RING 1
451 CASTED SUPPORT 2
452 LABYRINTH SEAL 2
453 WHEEL CUP M6 2
454 HEX. FLANGE SCREW M6 X 70 2
455 Hex. Flanged Elastic Nut M6 2
456 HEX. FLANGE SCREW M6 X 25 2
458 BLACK WHEEL CAP 2
610 ESSIEU ARRIERE *AXLE-REAR 1
620 REAR SPACER 1
630 BUSHING 1
660 REAR WHEEL SPACER 2
670 BLACK WHEEL ASS Y 200 MM 2
700 SLIDER AXLE 2
730 BOULON *BOLT 1
735 NUT-FLANGE ELASTIC DIN.6926 1
900 TENSIONER 2
920 HEX SCREW M10 X 100 2
930 Elastic Locking Nut M10 2
940 Flanged Hex. Screw S.GRIP M6 X 20 4
1000 AXLE 1
1010 ENTRETOISE *SPACER 2
1020 Washer 2
1030 BOLT M8 X 248MM 1
1140 AXLE STRAP 1
1150 Washer 2
1160 SOCKET HEAD SCREW M10 X 35 2
1200 BLACK RUNNER REINFORCEMENT 2
1220 HEX. CAP SCREW M8 X 30 6
